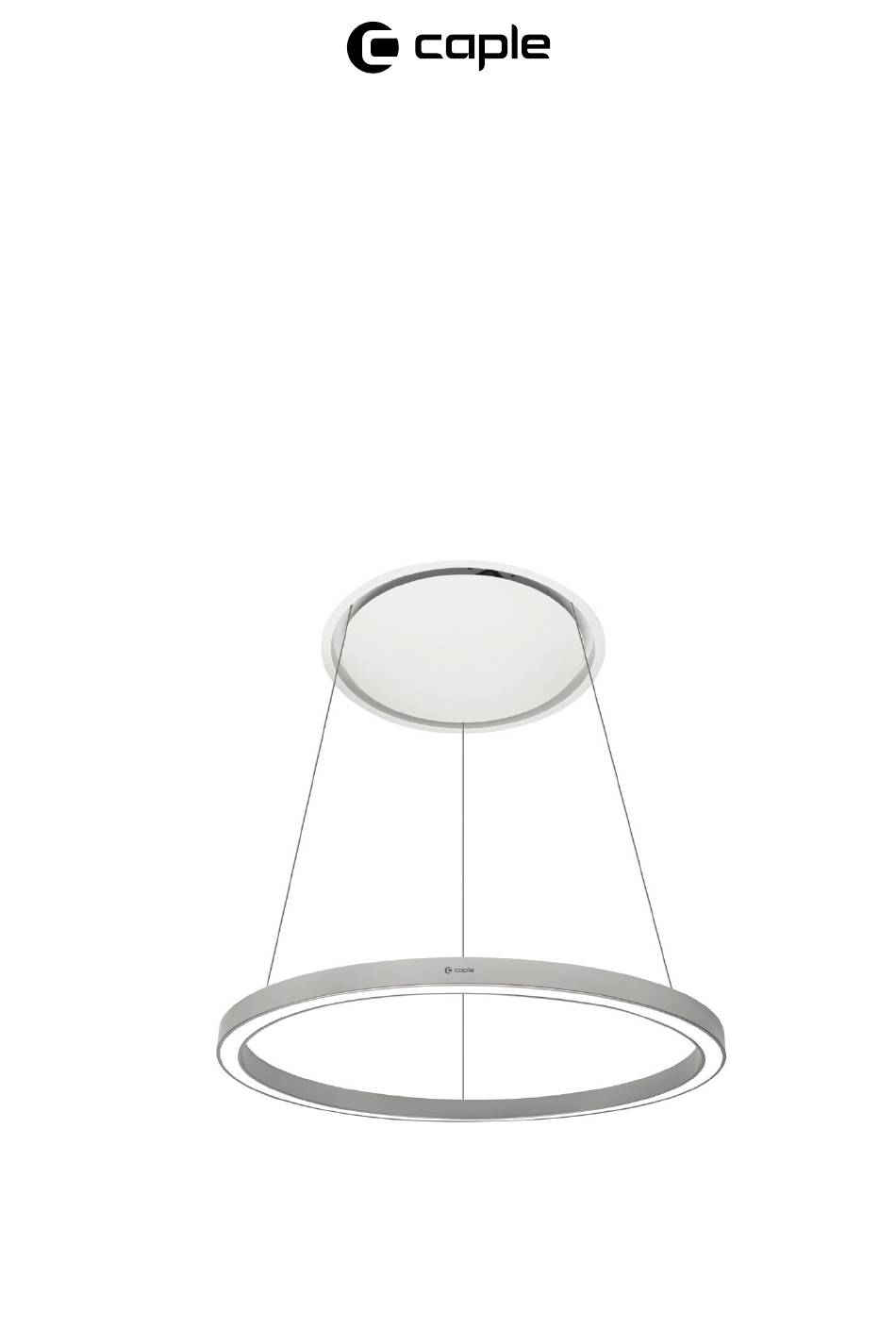

- Page 1 C e i l i n g H o o d I n s t r u c t i o n M a n u a l COR5 4 0S L Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
-
Page 2: Table Of Contents
C O N T E N T S Warnings Environmental Protection Opening the Panel Installation Remote Control Timing Cleaning and Maintenance Caple Contact Details Instruction manual COR540SL Please keep this instruction manual for future reference... -
Page 3: Warnings
(eg. centralized heating, radiators, water heaters, etc.). To evacuate the air outlet, please comply with the pertaining rules given by competent authorities. Instruction manual COR540SL Please keep this instruction manual for future reference... - Page 4 - Before carrying out any cleaning or maintaining operations, the appliance needs to be removed from the electric grid. Instruction manual COR540SL Please keep this instruction manual for future reference...
- Page 5 - It must only be used as a domestic appliance to extract vapours and remove odours from cooking. Any other usage is not supported by the manufacturer and could be dangerous. Instruction manual COR540SL Please keep this instruction manual for future reference...
- Page 6 - The cooker hood can get very hot during cooking due to heat rising from the hob. - Do not touch the housing or the grease filters until the cooker hood has cooled down. Instruction manual COR540SL Please keep this instruction manual for future reference...
- Page 7 › Staff kitchen areas in shops, offices and other working environments. › Farm Houses. › By clients in hotels, motels and other residential type environments. › Bed and breakfast type environments. Instruction manual COR540SL Please keep this instruction manual for future reference...
-
Page 8: Environmental Protection
For more detailed information about treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service or the retailer where you purchased the product. Instruction manual COR540SL Please keep this instruction manual for future reference... - Page 9 Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges.
-
Page 10: Opening The Panel
› Avoid abrupt changes of direction. › Use a duct with a diameter of 150mm constant over the entire length. › Use a duct of recognised and approved material. Instruction manual COR540SL Please keep this instruction manual for future reference... -
Page 11: Installation
The position of the air outlet of the fan is indicated in the drilling template. Drill three holes into the solid ceiling using a drill tip with a diameter of 8mm. Drilling Temlate Instruction manual COR540SL Please keep this instruction manual for future reference Additional Nut... - Page 12 Disconnect the flat cable and the electrical cable of the reset button. Install the upper part of the product in the plasterboard niche. The three slots must coincide with the threaded rods previously installed, as shown in fig. 12. Instruction manual COR540SL Please keep this instruction manual for future reference...
- Page 13 Lock the product to the niche with the eight screws previously removed, fig.16. Restore the grease filter and the metal panel fixed with special magnets. Instruction manual COR540SL Please keep this instruction manual for future reference...
-
Page 14: Remote Control
THE KEY - BRIGHTNESS REDUCTION. code. to synchronise the centra THE KEY - BRIGHTNESS REDUCTION. code. Instruction manual COR540SL to synchronise the centra THE KEY - BRIGHTNESS REDUCTION. Please keep this instruction manual for future reference code. - RELEASING THE KEY DURING REDUCTION - RELEASING THE KEY DURING REDUCTION code. - Page 15 INOUSLY Reset of the Factory configuration: OR INCREASE - LIGHT KEEPS THE LUMINOUS NVERTED To restore the Factory configuration, follow the NTENSITY REACHED. Instruction manual COR540SL Please keep this instruction manual for future reference NCTION. procedure described below: press simultaneou-...
- Page 16 4 hours working from the last operation. Rev. 0 26/08/14 The products are endowed with an electronic de- vice which allows the automatic switching off after 4 hours working from the last operation. Instruction manual COR540SL Please keep this instruction manual for future reference...
-
Page 17: Timing
› If the appliance is working at 3rd speed, it is automatically switched to 2nd speed, after 7 minutes operation. Operation speeds can also be changed during operation. The energy consumption of the appliance in standby mode is lower than 0.5W. Instruction manual COR540SL Please keep this instruction manual for future reference... -
Page 18: Cleaning And Maintenance
The panel is fixed with three magnets, there are two safety cables to be released to remove the panel from the product. For proper operation, it is recommended to install the product at a maximum distance, from the floor level, of 2000 - 2100mm. Instruction manual COR540SL Please keep this instruction manual for future reference... - Page 19 Instruction manual COR540SL Please keep this instruction manual for future reference...
-
Page 20: Caple Contact Details
Caple Service Fourth Way Avonmouth Bristol BS11 8DW t: 0117 938 7420 e: service@caple.co.uk www.caple.co.uk Instruction manual COR540SL Please keep this instruction manual for future reference...
