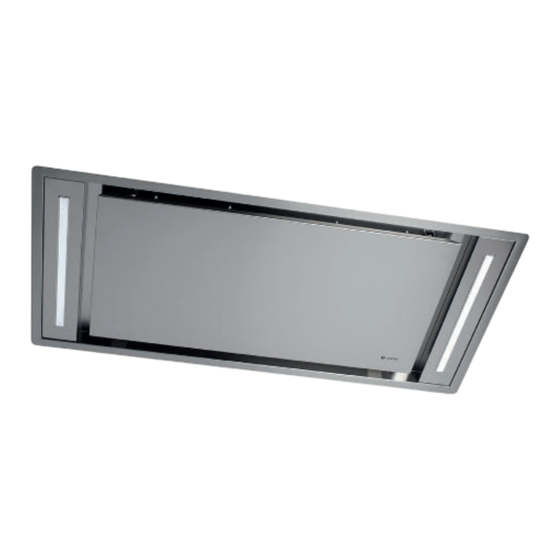

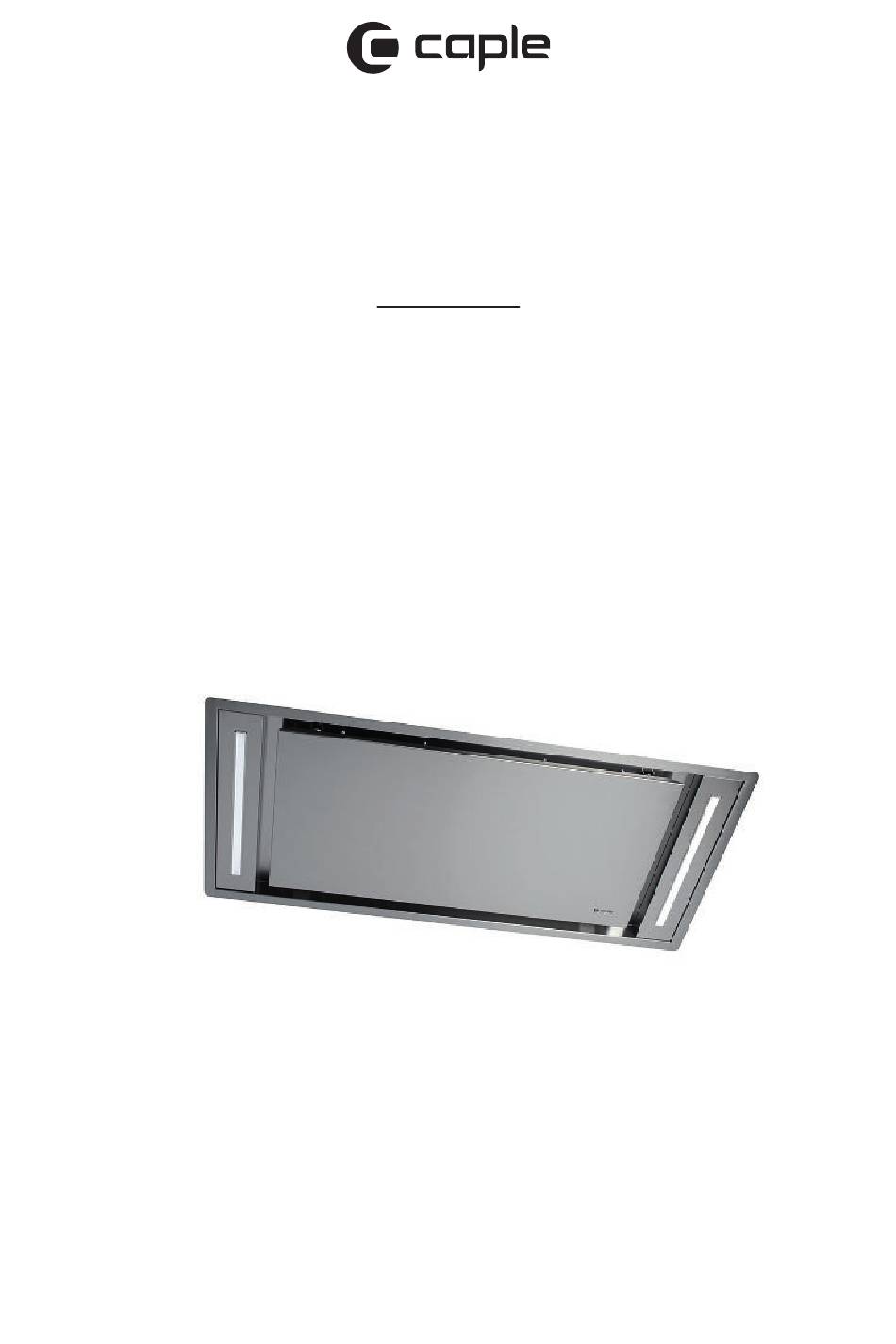

- Page 1 C e i l i n g H o o d I n s t r u c t i o n M a n u a l CE90 3 SS/ CE9 0 3 W H Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
- Page 2 C O N T E N T S Warnings Environmental Protection Opening the Panel Installation Remote Control Timing Cleaning and Maintenance Caple Contact Details Instruction manual CE903SS/CE903WH Please keep this instruction manual for future reference...
- Page 3 W A R N I N G The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure they do not play with the appliance. The extracted air can’t be conveyed through or into a duct used to let out fumes from appliances fed by energy other than electric power (eg.
- Page 4 - Provide the room with an adequate aeration when a cooker hood and appliances fed by energy other than electric power (gas, oil, or coal stoves, etc.) are used simultaneously. - The cooker hood, when evacuating the extracted air, could generate a negative pressure in the room which can’t exceed the limit of 0.04 mbar, in order to avoid the suck of exhausts deriving from the heat source.
- Page 5 - If the appliance is not provided with a non-separable flexible cable and plug, or with another device ensuring omnipolar disconnections from the grid, with an opening distance between the contacts of at least 3 mm, then such disconnecting devices must be supplied within the fixed installation.
- Page 6 - Where a recirculation cooker hood is fitted above a gas hob, please ensure that there is an adequate supply of fresh air into the room in which it is installed. Please seek the advice of a qualified gas fitter (e.g. GasSafe in the UK) if necessary.
- Page 7 A P P R O P R I A T E U S E : - This appliance is intended to be used in household and similar applications such as: › Staff kitchen areas in shops, offices and other working environments. ›...
- Page 8 Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges.
- Page 9 Radio Equipment Directive (RED) 2014/53/EU. This Declaration is issued under the sole responsibility of the manufacturer. Hereby, Caple declares that the radio equipment included in the product is in compliance with the RED directive 2014/53/EU. The full text of the EU Declaration of Conformity is available on our website www.caple.co.uk.
- Page 10 Use a duct of recognised and approved material. For more information on venting, please see our ‘Extraction & Ventilation guide’ available at www.caple.co.uk The cooker hood should be placed at a minimum distance of 65cm above the hob. It is the manufacturer of the hob who determines the clearance required and the clearance quoted by the hob manufacturer must be followed.
- Page 11 I N S T A L L A T I O N Fit a false ceiling with an opening of 865 x 405mm with a minimum distance of 270mm between the ceiling and the false ceiling. It is possible to select the side of the hood where the extracted air can be discharged. After choosing the most suitable position, prepare the ducting.
- Page 12 Screw the threaded bars provided into the plugs (Fig.4); the threaded bars are 250mm long and serve to install the ceiling mounted hood at a distance from the solid ceiling of between 270mm and 370mm (Fig.5). FIG.4 FIG.5 If the hood is installed with a lateral air outlet, fit a false ceiling with an opening that has a minimum gap of 210mm between the ceiling and the false ceiling (Fig.6);...
- Page 13 Place the ceiling-mounted hood into the niche, by inserting the threaded bars into the holes (Fig.7). The outer edge of the hood needs to be perfectly flush with the false ceiling. Insert the plates and nuts provided into the threaded bars, making sure to tighten them securely (Fig.8);...
- Page 14 R E M O T E C O N T R O L Remote control used for the remote operation of Caple hoods: T E C H N I C A L DATA Alkaline battery powered: 12V mod. 27A Operating frequency: 433.92 Mhz...
- Page 15 S TA N DA R D C O N F I G U R AT I O N : Standard configuration requires all cooker hood remote controls to be provided with the same transmission code. In the event two cooker hoods radio control system are installed in the same room or nearby, each system may affect the operation of the another.
- Page 16 L E A R N I N G T H E N E W T R A N S M I S S I O N C O D E Once the transmission code is changed in the remote control unit, the electronic central unit of the cooker hood must be made to set the new code in the following way: Press the main power-off button on the hood (fig.10)
- Page 17 R E S E T O F T H E FA C TO RY C O N F I G U R AT I O N : To restore the Factory configuration, follow the procedure described below: simultaneously press buttons for 2 seconds.
- Page 18 T I M I N G › This product is equipped with intelligent electronics which include a timer device for speed controls when the air capacity exceeds 650m³/h. Internal motor models, with maximum air capacity higher than 650m³/h, are equipped with a timer device that automatically switches the speed from 4th to 3rd speed, after 5 minutes operation.
- Page 19 C L E A N I N G A N D M A I N T E N A N C E Careful maintenance ensures smooth operation and long-lasting performance. Special care must be taken with the grease filter. To access the filter, open the glass panels by gently pulling the side of the panel as shown in figure 11.
- Page 20 Unplug the unit from the power supply before starting the process. 1. Carefully remove the 2 screws that secure the light. information, please contact Caple service - 0117 938 7420 or service@caple.co.uk Unplug the unit from the power supply before starting the process.
- Page 21 Instruction manual CE903SS/CE903WH Please keep this instruction manual for future reference...
- Page 22 Caple Service Fourth Way Avonmouth T: 0117 938 1900 Bristol E: service@caple.co.uk BS11 8DW www.caple.co.uk...
