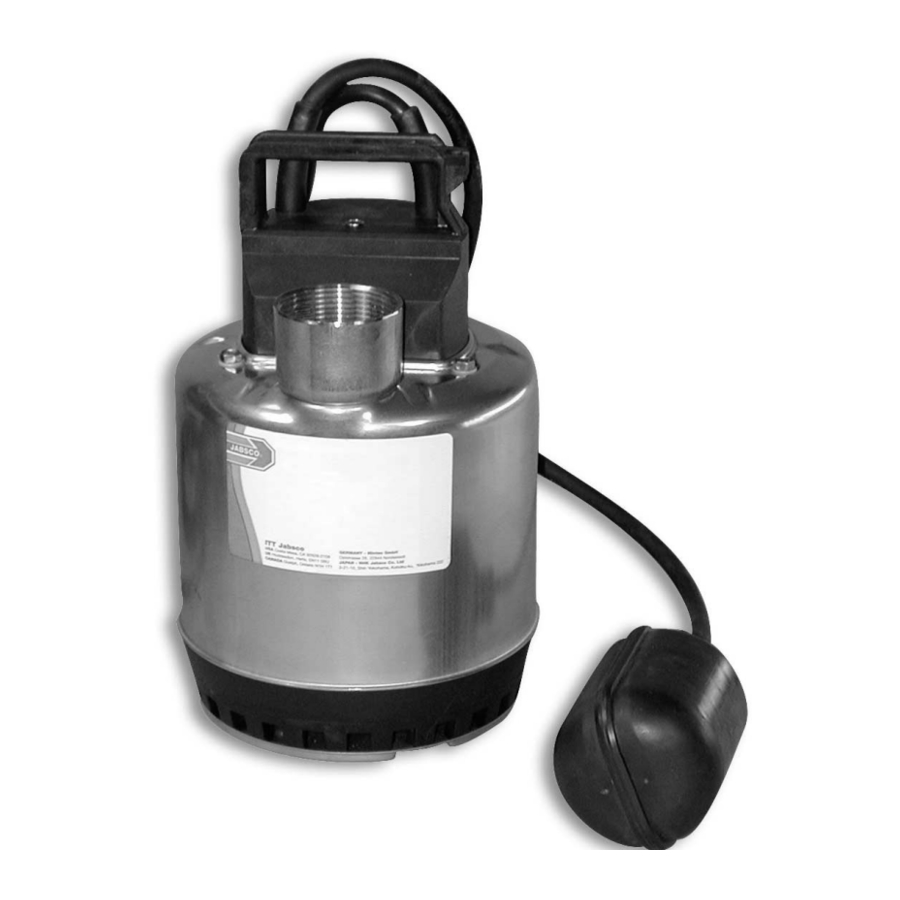

SUBMERSIBLE SUMP PUMPS
FEET
35
JSP07
30
25
20
JSP03
15
10
5
0
0
10
20
*Vertical distance from water level to highest
point in discharge – plus pipe friction.
Maximum pump rated submergence is
10 ft. for JSP03; 16 ft. for JSP07.
TO AVOID SERIOUS OR FATAL PERSONAL
INJURY OR MAJOR PROPERTY DAMAGE, READ
AND FOLLOW ALL SAFETY INSTRUCTIONS IN
MANUAL AND ON PUMP.
This is a SAFETY ALERT SYMBOL.
When you see this symbol on the
pump or in the manual, look for
one of the following signal words
and be alert to the potential for
personal injury or property damage.
Warns of hazards that WILL cause
DANGER
!
serious personal injury, death or
major property damage.
Warns of hazards that CAN cause
serious personal injury, death or
major property damage.
Warns of hazards that CAN cause
personal injury or property damage.
Notice: Indicates special instructions which are very
important and must be followed.
THIS MANUAL MUST BE KEPT WITH THE PUMP.
MAINTAIN SAFETY LABELS
Models: JSP03 and JSP07
Size:
3/8" Solids Max.
RPM:
3450
HP:
1/3 and 3/4
30
40
50
CAPACITY
Models JSP03 and JSP07
GPM
IMPORTANT PRE-INSTALLATION
INFORMATION
WARNING
Hazardous voltage
can shock, burn or
cause death.
The pump must be connected to a dedicated
electrical circuit protected by a properly sized
circuit breaker or fuses. Install a ground fault
disconnect where required by code. Code
questions should be directed to your electrical
inspector. See Chart 1 for specific information.
Disconnect electrical power before installing or
servicing the pump. The motor's automatic
thermal overload protection may allow an
overheated pump to restart unexpectedly.
Pump is not designed for use in swimming pools,
open bodies of water, hazardous liquids, or where
flammable gases exist.
Pumps and floats equipped with a 3-prong
grounded plug must be connected to a 3-wire
receptacle. Do not attach to extensions or
connectors without a 3-prong grounded plug.
Removing the plug from the power cord is
allowable as long as the hard wiring is done per
code by a qualified technician. Removing the
plug will not void the warranty or agency listing.
All electrical work must be
performed
by
a
technician. Always follow the
National Electrical Code (NEC),
or the Canadian Electrical Code,
as well as all local, state and
provincial codes.
qualified

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JASCO JSP03 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ITT Industries JASCO JSP03

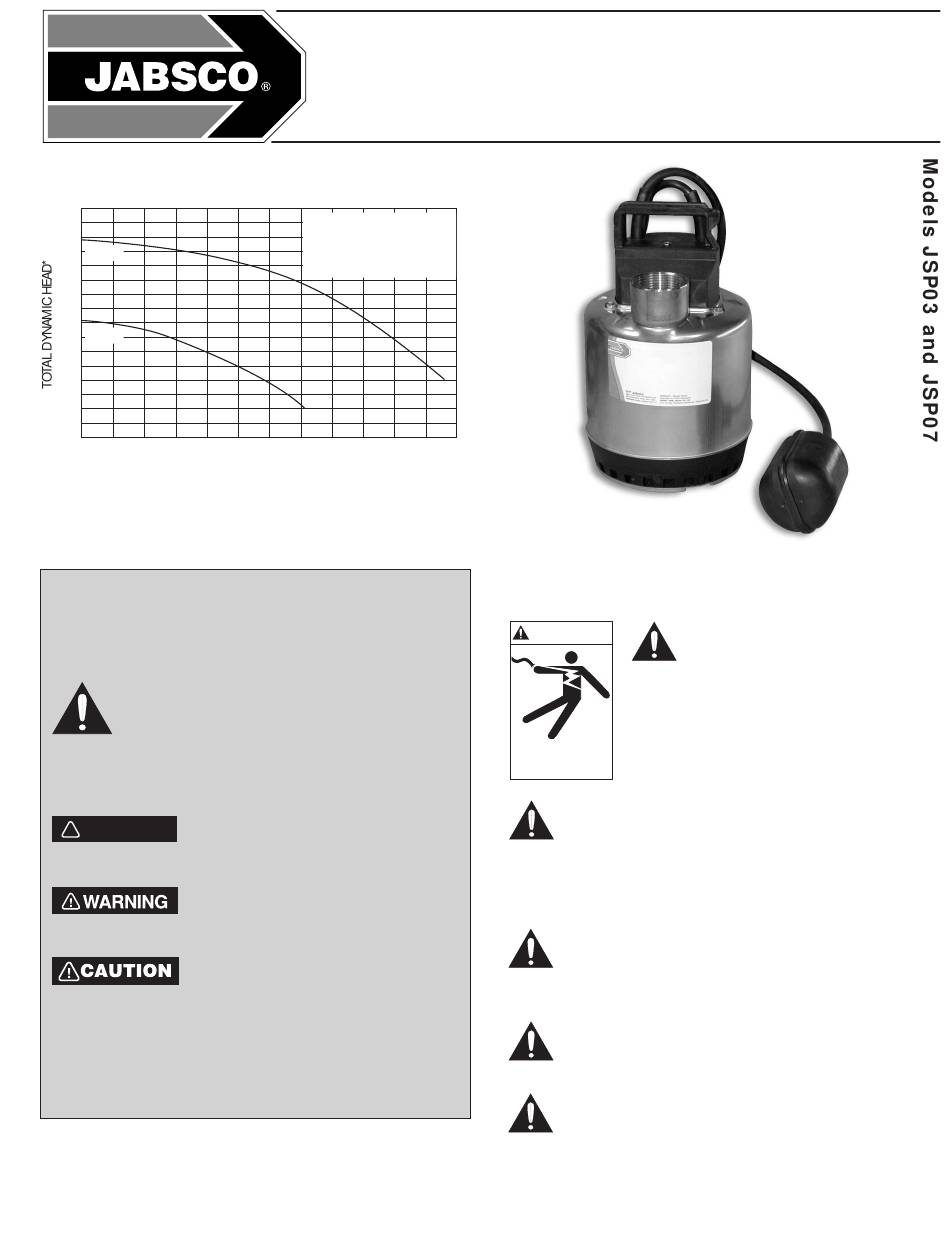

  • Page 1 Models JSP03 and JSP07 SUBMERSIBLE SUMP PUMPS FEET Models: JSP03 and JSP07 Size: 3/8" Solids Max. JSP07 RPM: 3450 1/3 and 3/4 JSP03 CAPACITY *Vertical distance from water level to highest point in discharge – plus pipe friction. Maximum pump rated submergence is 10 ft.
