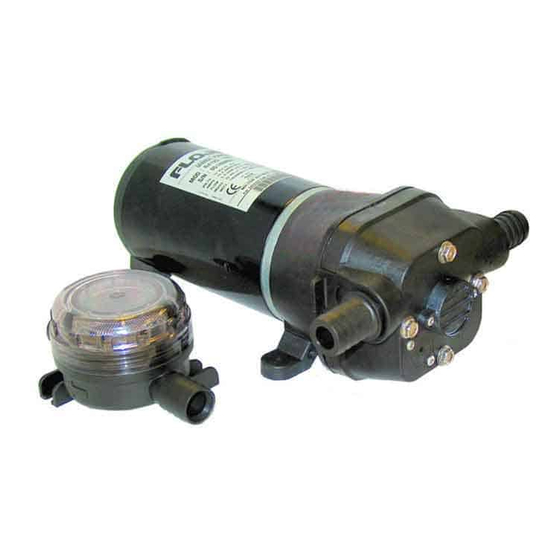

Automatic washdown pump

Advertisement

Quick Links

FEATURES

• Self-Priming
• Dry Running
• Soft, Noise Absorbing Mounts
• Corrosion Resistant Materials
• Meets U.S.C.G. Electric Standards
• Thermally Protected

SPECIFICATIONS

Motor: Permanent Magnet, Ball Bearings at Front &
Rear Endbell. CE Models are fully
suppressed.
Pump: Four chamber positive displacement
diaphragm design; Self-priming up to 6 ft.
suction lift; Pump able to run dry without
damage; Removable port to hose connectors.
MODEL*
VOLTS
4305-144D
12V dc
4305-144L
12V dc
4325-504
12V dc
* CE fully suppressed models are identified by a prefix "R" and a CE mark on the label. (i.e. R4305-144).
Self Declaration Of Conformance (SDOC) is available upon request.

OPERATION

With pump intake connected to inlet strainer and supply
tank or through hull fitting and operation switch off, open
outlet valve, then turn pump switch on. Water will begin
to flow, when water is free of air turn valve off. When
valve is shut off pump will stop. Should pump fail to
stop, turn switch off and see the trouble shooting guide.
As a circulation pump, always run full flow with no
restriction. Use 3.5 GPM pump for tanks up to 30
AMP DRAW
@ 10 psi (0.7 bar)
GPM (l/min)
5.0
5.0
8.0
Models4305-144/4325-504
Automatic Washdown Pump
3.5
3.44
(90)
(87)
3.25
(82)
Pump Series
4305-144
3.75 (95) 6.3 (160)
4325-504
3.75 (95) 6.3 (160)
FLOW
MAX psi (bar)
3.5 (13.5)
40 (2.8)
3.5 (13.5)
40 (2.8)
5.0 (18.9)
40 (2.8)
gallons, and use 5.0 GPM pump for tanks up to 50
gallons. Divert excess water, but do not restrict flow.
For portable use we recommend the pump be mounted
on a base (i.e. 3/4" x 8" x 10" board or plywood), add a
length of cable with alligator clips for battery
connection.
"Quad II Diaphragm"

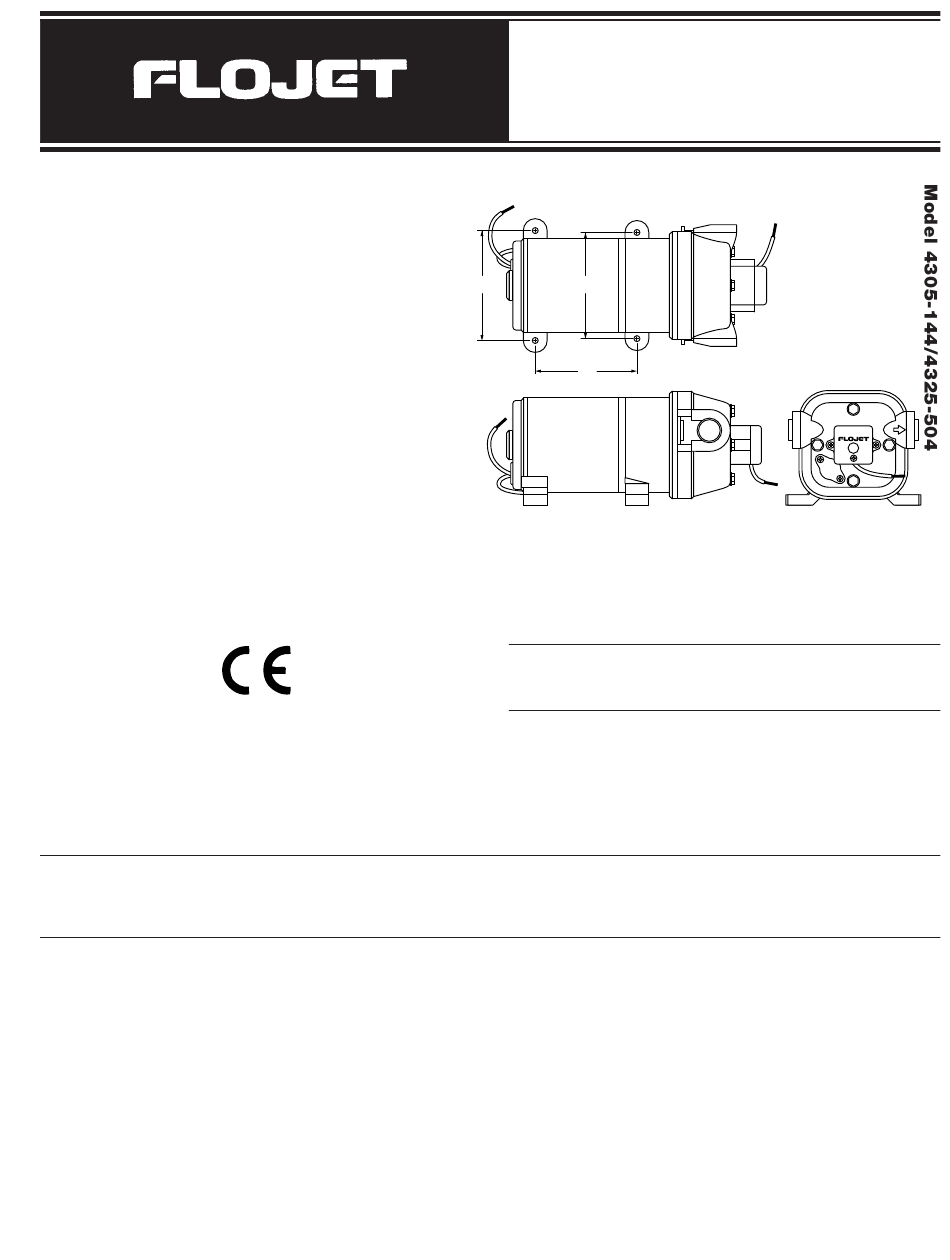

Dimensions - Inches (mm)
Height
Width
Length
8.6 (218) 4.5 (2.1)
9.9 (252) 6.0 (2.8)
STRAINER
No
Yes
No
Weight
lb. (kg)
PRESSURE
NOZZLE
No
Yes
No

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flojet 4305-144D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ITT Industries Flojet 4305-144D

  • Page 1 “Quad II Diaphragm” Models4305-144/4325-504 Automatic Washdown Pump FEATURES • Self-Priming • Dry Running • Soft, Noise Absorbing Mounts • Corrosion Resistant Materials 3.44 (90) (87) • Meets U.S.C.G. Electric Standards • Thermally Protected SPECIFICATIONS 3.25 (82) Motor: Permanent Magnet, Ball Bearings at Front & Rear Endbell.
  • Page 2 Flojet Washdown Pump Thru Deck Fresh Water Fitting Tank Flojet Inlet Strainer "Y" Valve Seacock INSTALLATION STEP I STEP 5 Remove shipping plugs from Quad pump ports. Some Use 3/4” or 5/8” I.D. flexible hose (preferably braided or water from factory testing may spill out. reinforced).
  • Page 3 TROUBLESHOOTING WARNING: BEFORE SERVICING PUMP, TURN OFF PUMP AND DRAIN WATER FROM SYSTEM!! Failure to Prime - Motor operates, but no pump discharge valves for clogging or undersizing • Restricted intake or discharge line Pump Fails to Turn Off After All Fixtures Are Closed •...
  • Page 4 Tel: (519) 821-1900 Tel: 045-475-8906 Tel: +49-40-53 53 73-0 Fax: (949) 859-1153 Fax: +44 (0) 1992 467132 Fax: (519) 821-2569 Fax: 045-475-8908 Fax: +49-40-53 53 73-11 © Copyright 2001, ITT Industries Printed in U.S.A. All Rights Reserved Form: 81000-267 11/01...
