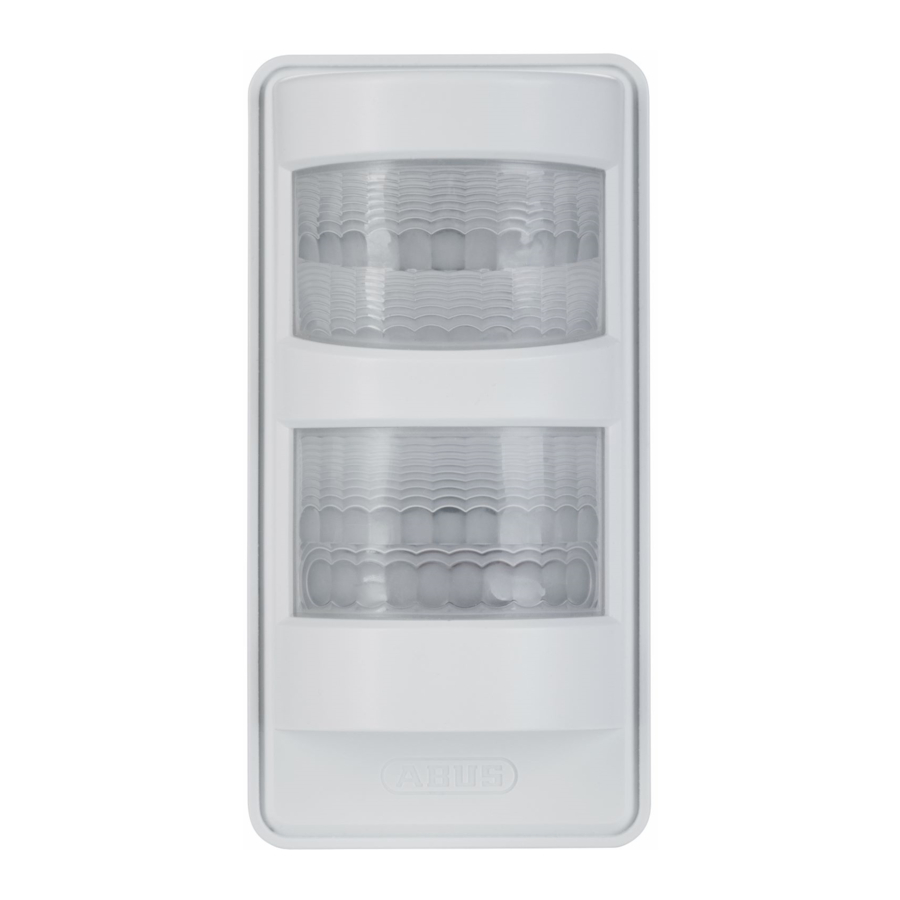

- Page 1 PLBW10000 Nexello Dual Motion Detector Important information and FAQs about this product and other products can be found on the website www.abus.com Manual version 1.2 Firmware version 1.01...
- Page 2 ABUS Security Center is limited to the purchase price of the product.
- Page 3 Please ensure that the packaging contains the DSK (Device Specific Key) card. This card shows the DSK of your ABUS Z-Wave device. Please keep them in a safe place. Every S2 (Security 2) certified Z-Wave controller requires the DSK to include the product in the Z-Wave network.
- Page 4 English Notes on handling batteries Make sure that batteries are not in the hands of children. Children could put batteries in their mouths and swallow them. This can lead to serious damage to health. In this case consult a doctor immediately! ...
-
Page 5: Table Of Contents
English Table of contents Product ............................. 6 1.1. Scope of delivery ........................6 1.2. Device features ........................6 1.3. Operating principle ........................7 1.4. Performance features ......................7 1.5. Use in systems of different manufacturers ................7 1.6. DSK code ..........................7 Functional overview .......................... -
Page 6: Product
English 1. Product 1.1. Scope of delivery Nexello Dual Motion Detector 1x GP CR123 battery Mounting material: screws, dowels Quick guide & safety instructions DSK card 1.2. Device features H, I Designation Comment Front cover Connected to the rear part with a screw at the bottom Upper Fresnel Lens For motion detection... -
Page 7: Operating Principle
English 1.3. Operating principle The device was developed for use in alarm and home automation systems that use the Z-Wave wireless standard. The device has the following functions: Motion detector It uses Passive Infrared (PIR) technology to detect movement in a defined area by detecting the changes in thermal radiation caused by the moving body inside or outside the detection zone. -
Page 8: Functional Overview
English 2. Functional overview 2.1. Inclusion / teach-in device Open the screw and remove the front cover of the motion sensor. Activate the inclusion mode (teach-in mode) on the Z- Wave controller. (please refer to the Z-Wave controller manual for more details) Press the "+"... -
Page 9: Planning, Mounting And Installation
English 2.2. Planning, mounting and installation The device uses low-power radio signals to communicate with the Z-Wave controller. To achieve the best results, please note the following: Please do not attach directly to metal planes or metal constructions, as this may limit the range. ... - Page 10 English Mount the PIR detector in one of 2 m. At this height, the detection range of the detector is optimised, i.e. 12 metres range and 90° detection angle. The PIR detector ignores pets up to a height of approx. 60 cm in this installation.
-
Page 11: Exclusion / Teach-Out Device
English 2.3. Exclusion / teach-out device Activate the exclusion mode (teach-out mode) on the Z-Wave controller. (please refer to the Z-Wave controller manual for more details) Press the "-" button (Remove / Exclusion) in your Z- Wave app and follow the instructions to set the Z-Wave controller to Exclusion mode. -
Page 12: Reset Factory Settings
English 2.4. Reset factory settings Press the Link button 3 times quickly (within 1.5 seconds). Press quickly (within 1 second) a fourth time and press and hold the Link button for at least 5 seconds. The device is now reset to factory settings. Hint: This procedure should only be used if the primary network controller is not capable of acting. -
Page 13: Behavior Pir Sensor
English 2.6. Behavior PIR sensor Warm up phase It takes about 1 minute for the PIR sensors to warm up after the battery is inserted. During this time the LED behind the lens will light up. When the LED goes out, it means that the warm-up process is complete and the detector is ready for detection. -
Page 14: Advanced Z-Wave Parameters
English 3. Advanced Z-Wave Parameters 3.1. Association Groups Z-Wave devices can control other devices directly. This direct control is called association in Z-Wave. For this purpose, the device ID of the device to be controlled must be stored in the controlling devices. This takes place in so-called association groups. -
Page 15: Reports
English 3.3. Reports Notification report Event Type Attribute Parameter Length Event Parameters Power is applied for the first time 0x08 0x01 0x00 Motion alarm 0x07 0x00 0x08 0x08 Motion alarm reset (no Event) 0x07 0x01 0x00 Tamper alarm 0x07 0x03 0x00 0x03 Tamper alarm reset (no Event) -
Page 16: Overview Configuration Parameters
English 3.4. Overview configuration parameters Z-Wave products can be used directly after inclusion in the network. However, configuration settings can be used to adapt the behaviour of the device even better to the requirements of the application and to activate additional functions. Use your Z-Wave controller to initiate the changes to the parameters. -
Page 17: Supported Command Classes
English 3.5. Supported command classes Command class Version ASSOCIATION Version 2 ASSOCIATION_GRP_INFO Version 1 BATTERY Version 1 CONFIGURATION Version 1 DEVICE_RESET_LOCALLY Version 1 FIRMWARE_UPDATE_MD Version 4 MANUFACTURER_SPECIFIC Version 2 NOTIFICATION Version 8 POWERLEVEL Version 1 SECURITY Version 1 SECURITY_2 Version 1 SENSOR_MULTILEVEL Version 5 SUPERVISION... -
Page 18: Technical Data
English 4. Technical data Parameters PLBW10000 Dimensions (W x H x D) 120 x 61 x 51 mm Weight 100 g Operating temperature >0° – 40°C IP class IP 20 (indoor area) Radio frequency 868.42 MHz (Z-Wave Plus, Europe) Modulation FSK (BFSK/GFSK) Transmitting power: <...
