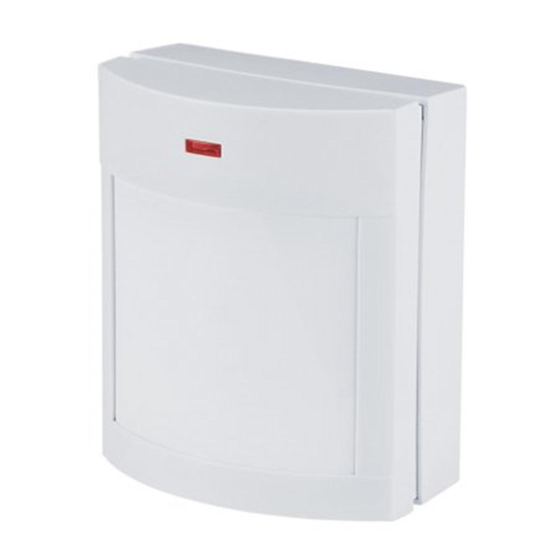

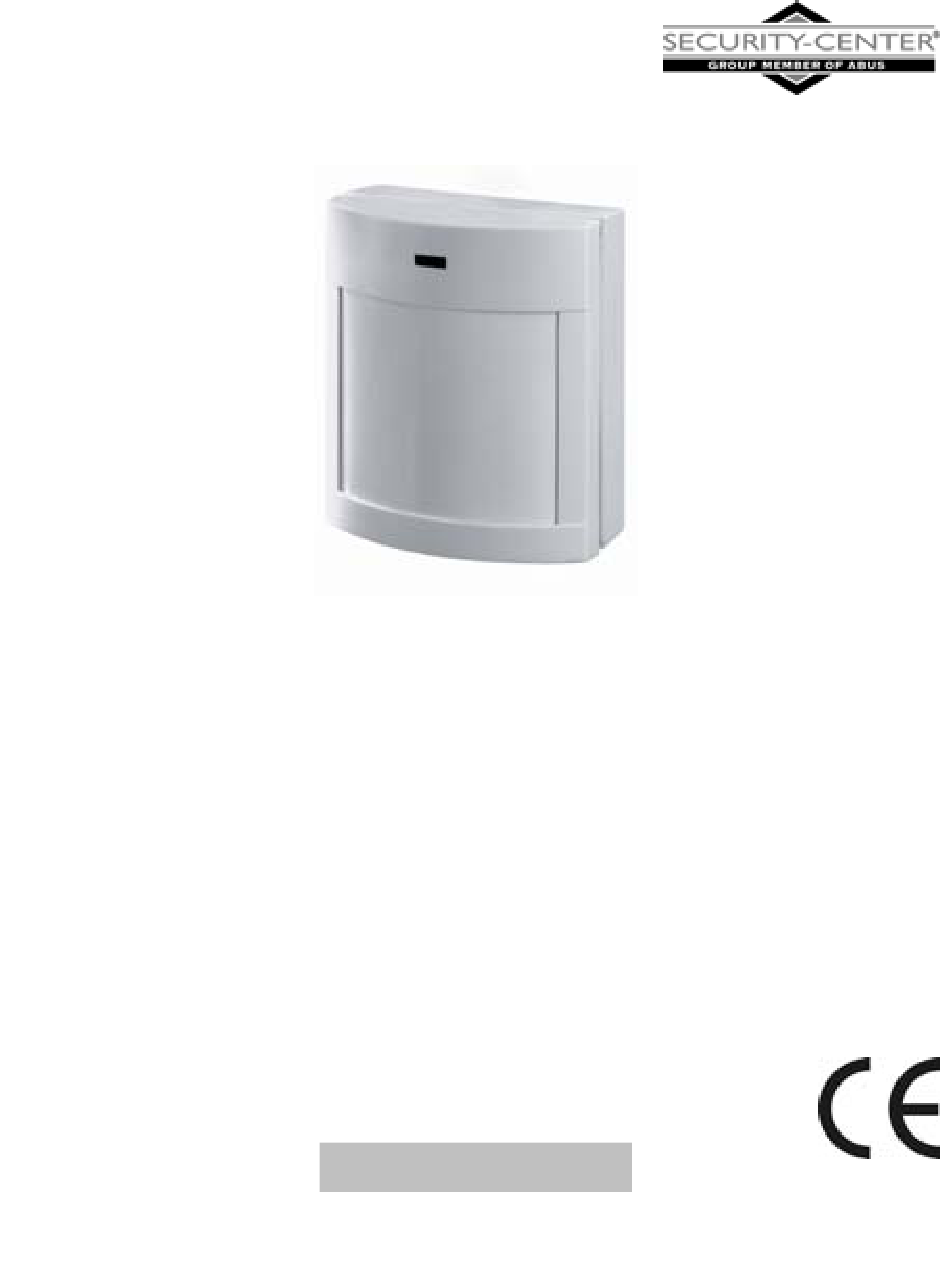

- Page 1 Radio-controlled motion sensor Installation Guide FU5110...
- Page 2 Fig. 1: 2.4m (max) Fig. 2 View from above Fig. 3: Wall tamper knockout Screw...
- Page 3 Preface Dear Customer, Thank you for purchasing this radio-controlled motion sensor. You made the right decision in choosing this state-of-the-art technology, which complies with the current standards of domestic and European regulations. The CE has been proven and all related certifications are available from the manufacturer upon request. To maintain this status and to guarantee safe operation, it is your obligation to observe these operating instructions! In the event of questions, please contact your local specialist dealer.
- Page 4 choosing the installation location, check the sensor’s range of view (Fig. 1) and communication with the alarm system (see “Testing the sensor”). Do NOT install the sensor: – opposite sources of heat or windows – above a radiator – near the floor –...
- Page 5 2. Mark the position of the knockout on the wall where you want to fit the sensor. Drill a hole at the mark, insert a suitable wall plug, and insert a screw (M3). The screw head must not be more than 2.5mm from the wall surface. 3.
- Page 6 Specifications Power supply: 3,6V Lithium Battery size: Average current: 0,03mA Optic: 90° / 15m Battery life time: up to 36 months Environmental class: I (-10°C to +50°C) Security Grade: INCERT No: CXXXXXX Housing material: Flame retardant ABS Weight (excl. battery): 140g Dimensions: 82mm x 71mm x 47mm (HxWxD)
