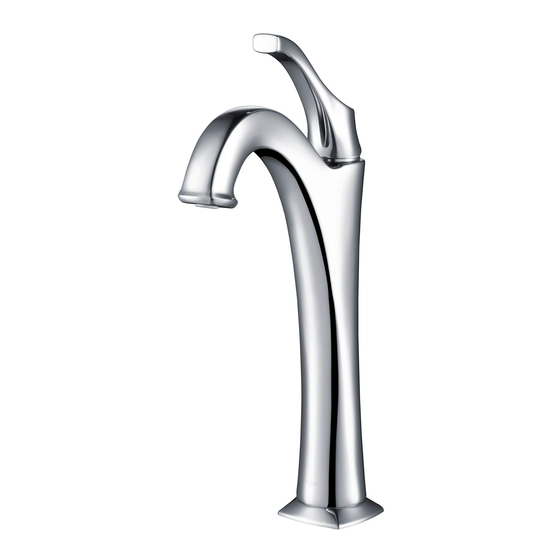

- Page 1 INSTALLATION GUIDE Arlo Single Lever Vessel Faucet ™ KVF-1200 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2019 Kraus USA Inc. I REV. FEB 26, 2020...
- Page 2 Congratulations on the purchase of your new Kraus plumbing xture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance, or have any problems with your product: DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
-
Page 3: Prior To Installation
Prior to Installation: • Make sure you have all necessary parts by checking the diagram and parts list. If any part is missing or damaged, please contact Kraus Customer Service at 800-775- 0703 for a replacement • Turn off the hot and cold water lines at the angle stops and turn on the old faucet to release any built-up pressure •... - Page 4 Diagram and Parts List A. Faucet Body D. Nut & Screws G. Aerator J. Drain B. Plastic Washer E. Waterlines H. Aerator Key C. Metal Washer F. Flange & Washer I. Hex Wrench...
- Page 5 Faucet Dimension 6 3/4" [171mm] 5" [128mm] 12 1/8" [307mm] 8 1/8" [208mm] 2 1/4" [56mm] 2 1/2" [64mm] 3/8" compression Installer Tip:...
- Page 6 Step 1: Remove washers and nut old faucet. Clean the mounting surface. Remove the plastic washer (B), metal washer (C) and nut & screws (D) from the faucet (A). Step 2: Install faucet Before installation, ensure that the flange (F) is placed on the bottom of the faucet assembly (A).
- Page 7 Step 3: Connect waterlines to main valve Attach waterlines(E) to angle stops and tighten until snug. Turn on angles stops and check for leaks (DO NOT TURN FAUCET ON) Step 4: Install Press pop-up assembly Unscrew the nut (6) from the pop-up body (2), move over the tail pipe (7) and washer (5), then unscrew the coupling nut (4) and remove the...
- Page 8 Step 4: Install Press pop-up assembly Place the washer (1) underneath the the pop-up body (2) down through the drain hole on the vessel or basin. From underside, slide the washer (3) against the bottom of the vessel or basin, thread on the coupling nut (4) and tighten.
-
Page 9: Replacement Parts
Replacement Parts Replacement Parts List Finish / Color Part # 1. Cover Button GR, BL KP27002 2. Set Screw KP27001 CH, SFS, ORB, MB 3. Handle KP27046 CH, SFS, ORB, MB 4. Cap KP27048 7 5/8” 5. Bonnet Nut KP27049 6. -
Page 10: Troubleshooting
Troubleshooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: P R O B L E M C A U S E A C T I O N Leakage under the Bonnet nut (5) has Remove the index (1). - Page 11 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 12 Puerto Rico shipping charges may apply). International shipping fees are not included. Commercial Warranty Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial, commercial, and business use. All incidental or consequential damages are specifically excluded. No additional warranties, express or implied, are given, including but not limited to any implied warranty of merchantability or fitness for a particular purpose.
