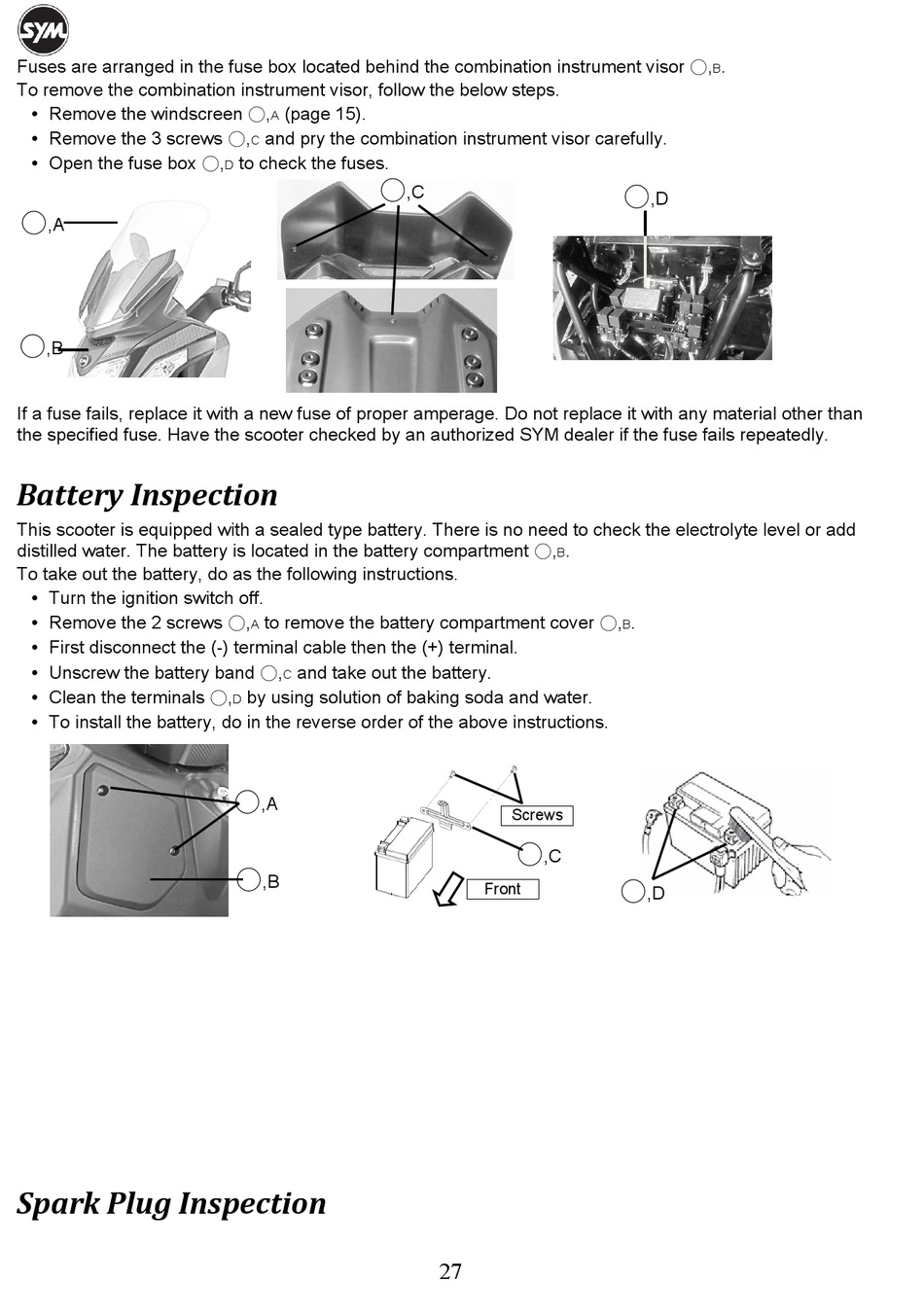

Fuses are arranged in the fuse box located behind the combination instrument visor ○,
To remove the combination instrument visor, follow the below steps.
 Remove the windscreen ○,
 Remove the 3 screws ○,
 Open the fuse box ○,
○
,A
○
,B
If a fuse fails, replace it with a new fuse of proper amperage. Do not replace it with any material other than
the specified fuse. Have the scooter checked by an authorized SYM dealer if the fuse fails repeatedly.

Battery Inspection

This scooter is equipped with a sealed type battery. There is no need to check the electrolyte level or add
distilled water. The battery is located in the battery compartment ○,
To take out the battery, do as the following instructions.
 Turn the ignition switch off.
 Remove the 2 screws ○,
 First disconnect the (-) terminal cable then the (+) terminal.
 Unscrew the battery band ○,
 Clean the terminals ○,
 To install the battery, do in the reverse order of the above instructions.
Spark Plug Inspection
(page 15).
A
and pry the combination instrument visor carefully.
C
to check the fuses.
D
○
to remove the battery compartment cover ○,
A
and take out the battery.
C
by using solution of baking soda and water.
D
○
,A
○
,B
,C
.
B
Screws
○
,C
Front
27
.
