Blodgett BLG-30G Parts List
Gas skillets
Hide thumbs
Also See for BLG-30G:
- Installation operation & maintenance (17 pages) ,
- Specifications (2 pages) ,
- Brochure & specs (12 pages)
Related Manuals for Blodgett BLG-30G
Summary of Contents for Blodgett BLG-30G
-
Page 1: Parts List

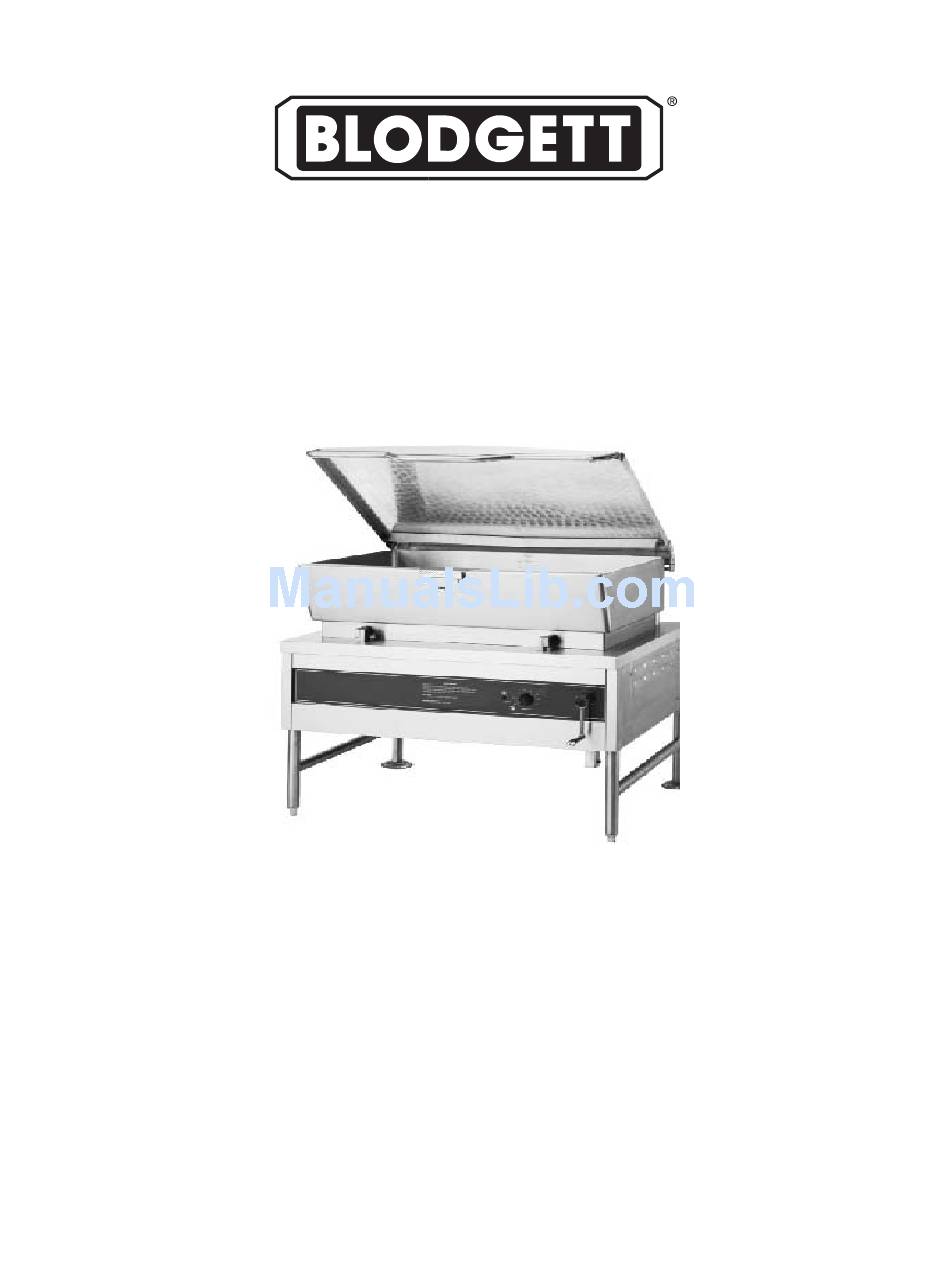

PARTS LIST GAS SKILLETS MODELS: BLG-30G BLG-40G BLODGETT OVEN CO ▪ 44 lakeside Ave ▪ Burlington, VT 05446 Tel. 800-331-5842 ▪ Fax 802-860-3732 ▪ www.blodgett.com... - Page 2 FIGURE 1...
- Page 3 PARTS LIST, GAS SKILLETS, MODELS BLG-30, BLG-40 ITEM PART NO. 42572 42573 42909 43312 40452 43311 43442 43443 40739 42706 40991 40840 43444 41093 40871 41127 40708 40707 41859 41861 41844 42574 43445 43446 40823 DESCRIPTION Pan Cover Assembly Pan Cover Assembly Pour Lip Strainer Base Bracket Bronze Bearing...
- Page 4 PARTS LIST, GAS SKILLETS, MODELS BLG-30, BLG-40 ITEM PART NO. 40818 41881 40740 40828 40994 40438 43447 43212 43448 42536 42535 41131 43449 40127 42539 43450 42533 42598 42599 42596 42534 42597 42802 41808 43451 42587 42537 DESCRIPTION Pilot, Temperature, Red, 125V Potentiometer Shaft Seal Knob (F) Knob (C)
- Page 5 PARTS LIST, GAS SKILLETS, MODELS BLG-30, BLG-40 ITEM PART NO. 42538 43452 41837 43453 43454 43455 43456 43457 43458 43459 43460 43461 43462 41543 41546 43106 41100 41526 43107 41520 43463 43464 43465 43466 43467 43468 DESCRIPTION Output Shaft Key, 8 mm x 10 mm x 1" Set Screw, 3/8"...
- Page 6 PARTS LIST, GAS SKILLETS, MODELS BLG-30, BLG-40 * NOT SHOWN. ** SELECT AS REQUIRED.
- Page 7 PARTS LIST, GAS SKILLETS, MODELS BLG-30, BLG-40...
- Page 8 PARTS LIST, GAS SKILLETS, MODELS BLG-30, BLG-40 FIGURE 2...
- Page 9 PARTS LIST, GAS SKILLETS, MODELS BLG-30, BLG-40 ITEM PART NO. 43469 Lighter Tube 43470 Lighter Tube 43416 High Limit Thermostat 43471 High Limit Cover 43472 90E Connector, 3/8" 41234 Spark/Sensor 43473 Burner Box 43474 Burner Box 43475 Lighter Orifice #56, Natural Gas 43475 Lighter Orifice #72, LP Gas 40318...
- Page 10 PARTS LIST, GAS SKILLETS, MODELS BLG-30, BLG-40 ITEM PART NO. 43480 Manifold Assembly 40424 Connector, 1/4 CC x 1/8 MPT 43481 Burner DESCRIPTION BLG-30 BLG-40...
- Page 11 PARTS LIST, GAS SKILLETS, MODELS BLG-30, BLG-40...
