Edge-Core MLTG-360-3 Quick Start Manual
Edge-Core MLTG-360-3 Quick Start Manual

Edge-Core MLTG-360-3 Quick Start Manual

60ghz backhaul transmitter 60ghz

Advertisement

Quick Links

Edgecore

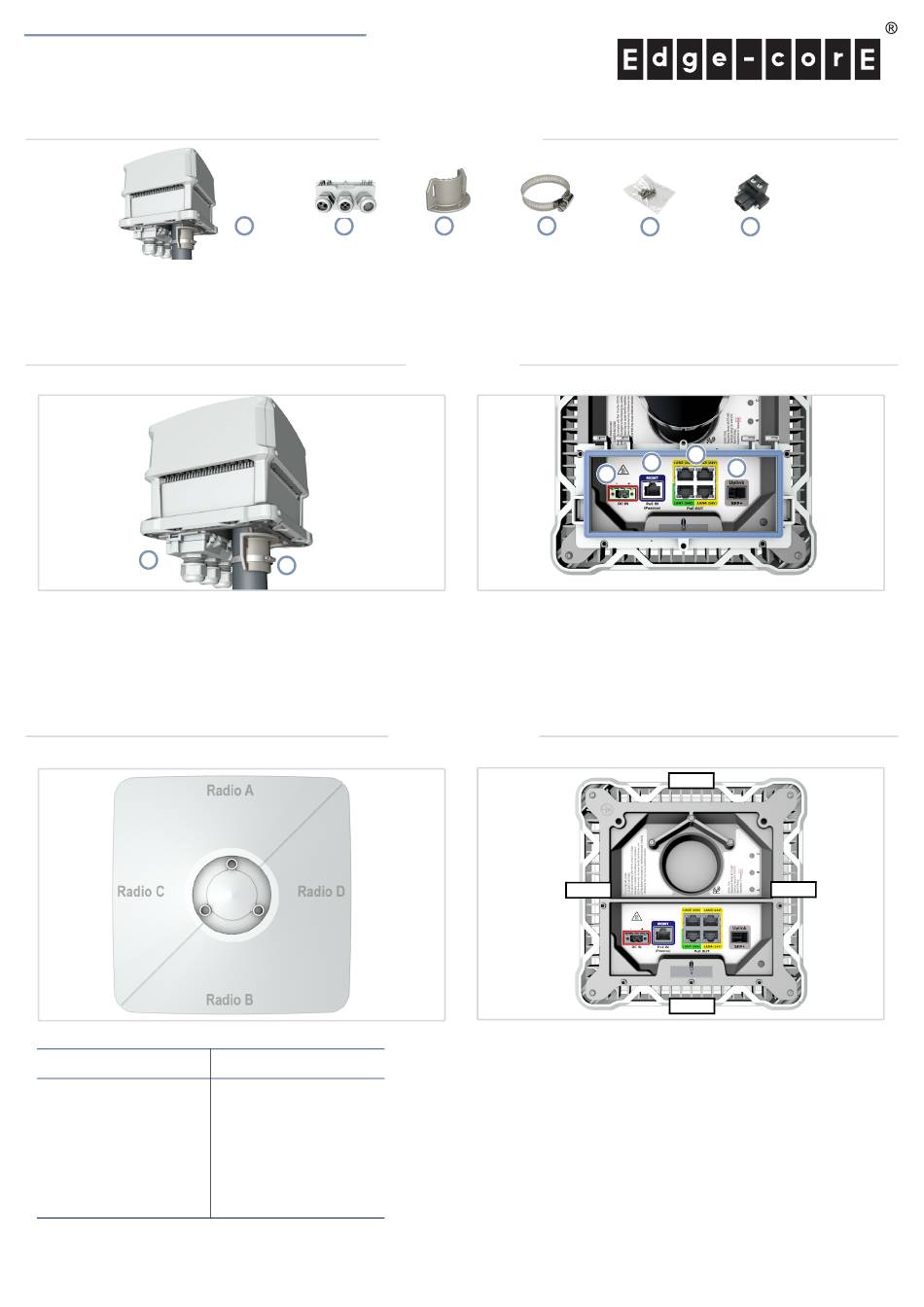

Quick Start Guide
60GHz Backhaul transmitter 60GHz 毫米波主幹傳輸器
MLTG-360 , MLTG-360-XX
1.
60GHz Terragraph Distribution Node MLTG-360
2.
Weatherproof port cover
3.
Pole-mount bracket
1
1.
Port cover
2.
Pole mounting bracket with steel-band clamp
3.
DC power connection.
4.
MGMT PoE IN Port: Connects to PoE injector and management
network.
Product Name
MLTG-360
MLTG-360-3
MLTG-360-2R
MLTG-360-2P
MLTG-360-1
www.edge-core.com

Package Contents

1
2
2
Position of Radios
A, B, C, D
A, C, D
A, D
C, D
A
3
4
4.
Steel-band clamp — 5 cm (2 inch) diameter max.
5.
Screw kit
6.
DC terminal plug

Overview

5.
PoE OUT LAN Ports: Connect to LAN devices.
6.
Uplink SFP+ fiber transceiver port

Product Lineup

Radio C
– 1 –
5
6
5
4
6
3
Radio B
Radio D
Radio A
E062022-MR-R04
