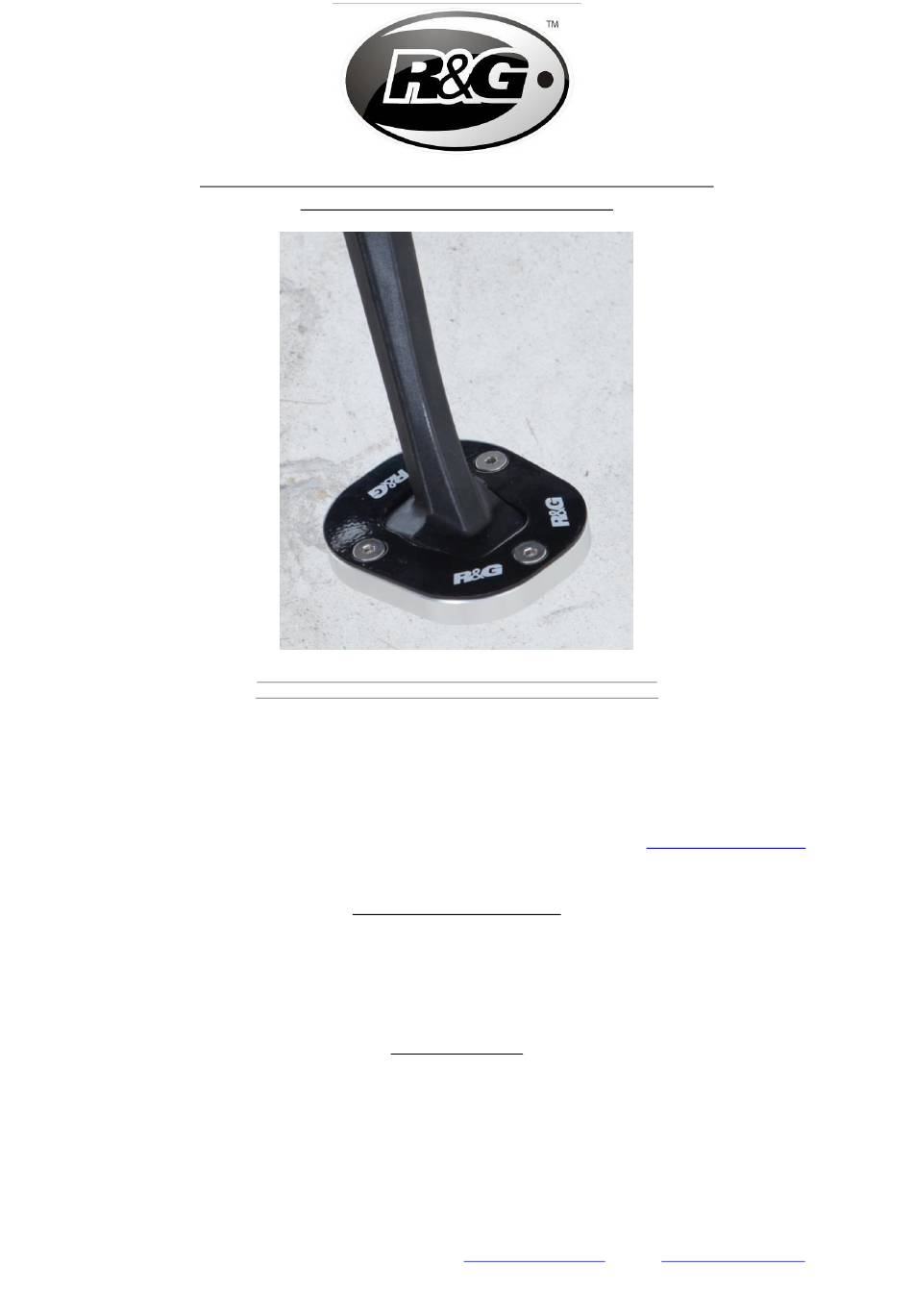

Fitting Instructions FOR PKS0119 KICKSTAND SHOE
Please note that the way the kit is packed does not necessarily represent the way of mounting to the bike
Please note that in cases where kits are packed with rubber washers holding the components onto the bolt –
T
HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY
Digital copies of these instructions are available to download from
Tel: +44 (0)
420 89007 Fax: +44 (0)
1
HUSQVARNA VITPILEN 701 2018 –
This Kit Contains THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
should be thrown away
GENERAL TORQUE SETTINGS
•
•
Thread Lock (Blue 242)
Unit
, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
1
420 8730
1
!
(
FOR CLARITY OF INSTRUCTIONS ONLY
M4 BOLT = 8Nm
M5 BOLT =
2Nm
1
M6 BOLT =
5Nm
1
M8 BOLT = 20Nm
M
0 BOLT = 40Nm
1
TOOLS REQUIRED
3mm A/F Allen Key.
R&G
www.rg-racing.com
1
the rubber washers
)
www.rg-racing.com
Email:
info@rg-racing.com
PKS0119
Advertisement
Table of Contents
Related Manuals for R&G PKS0119
Summary of Contents for R&G PKS0119
- Page 1 Page 1 of 6 PKS0119 FITTING INSTRUCTIONS FOR PKS0119 KICKSTAND SHOE HUSQVARNA VITPILEN 701 2018 – THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW. DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT. Please note that the way the kit is packed does not necessarily represent the way of mounting to the bike the rubber washers Please note that in cases where kits are packed with rubber washers holding the components onto the bolt –...
- Page 2 Page 2 of 6 PKS0119 This Kit Contains: Item = 1x Base Plate (MP0223) Item 2 = 1x Clamp Plate (PLATE 0229) Item 3 = 3x M5 x 8mm Countersunk Head Bolts FITTING INSTRUCTIONS • Take the clamp plate (Item 2) and feed it over the base of the side stand, with the countersunk holes facing upwards and position it around the side stand leg.
- Page 3 Page 3 of 6 PKS0119 NOTICE DE MONTAGE POUR PKS0119 PIED DE BEQUILLE HUSQVARNA VITPILEN 701 2018 – Le kit contient les articles exposés ci-dessous, vérifier que toutes les pièces soient présentes avant de procéder au montage. La façon dont le kit est emballé ne correspond pas forcément à la façon de monter les pièces sur la moto ces rondelles doivent être...
- Page 4 Page 4 of 6 PKS0119 Le kit contient : Article = 1x Base Plate (MP0223) Article 2 = 1x Attache plate (PLATE 0229) Article 3 = 3x M5 x 8mm Boulons NOTICE DE MONTAGE • Prenez l’attache (Article 2) puis placez-la autour de la base de la béquille latérale, les fraisures étant tournées vers le haut puis positionnez-la autour du pied de béquille latérale.
- Page 5 Page 5 of 6 PKS0119 MONTAGEANLEITUNG FÜR PKS0119 SEITENSTÄNDER-AUFLAGENVERBREITERUNG HUSQVARNA VITPILEN 701 2018 – ALLE KIT-TEILE SIND UNTEN ABGEBILDET UND GEKENNZEICHNET. BEVOR SIE MIT DER MONTAGE BEGINNEN, ÜBERPRÜFEN SIE, DASS ALLE TEILE VORHANDEN SIND. Hinweis: Die Verpackung der Teile stellt nicht die Reihenfolge der Montage dar.
- Page 6 Page 6 of 6 PKS0119 Inhalt des Kits: Artikel = 1x Grundplatte (MP0223) Artikel 2 = 1x Klemmplatte (PLATE 0229) Artikel 3 = 3x M5 x 8mm Senkschrauben MONTAGEANLEITUNG • Montieren Sie die Klemmplatte (Artikel 2) über dem Fuß des Seitenständers. Die Versenkungen nach oben.
