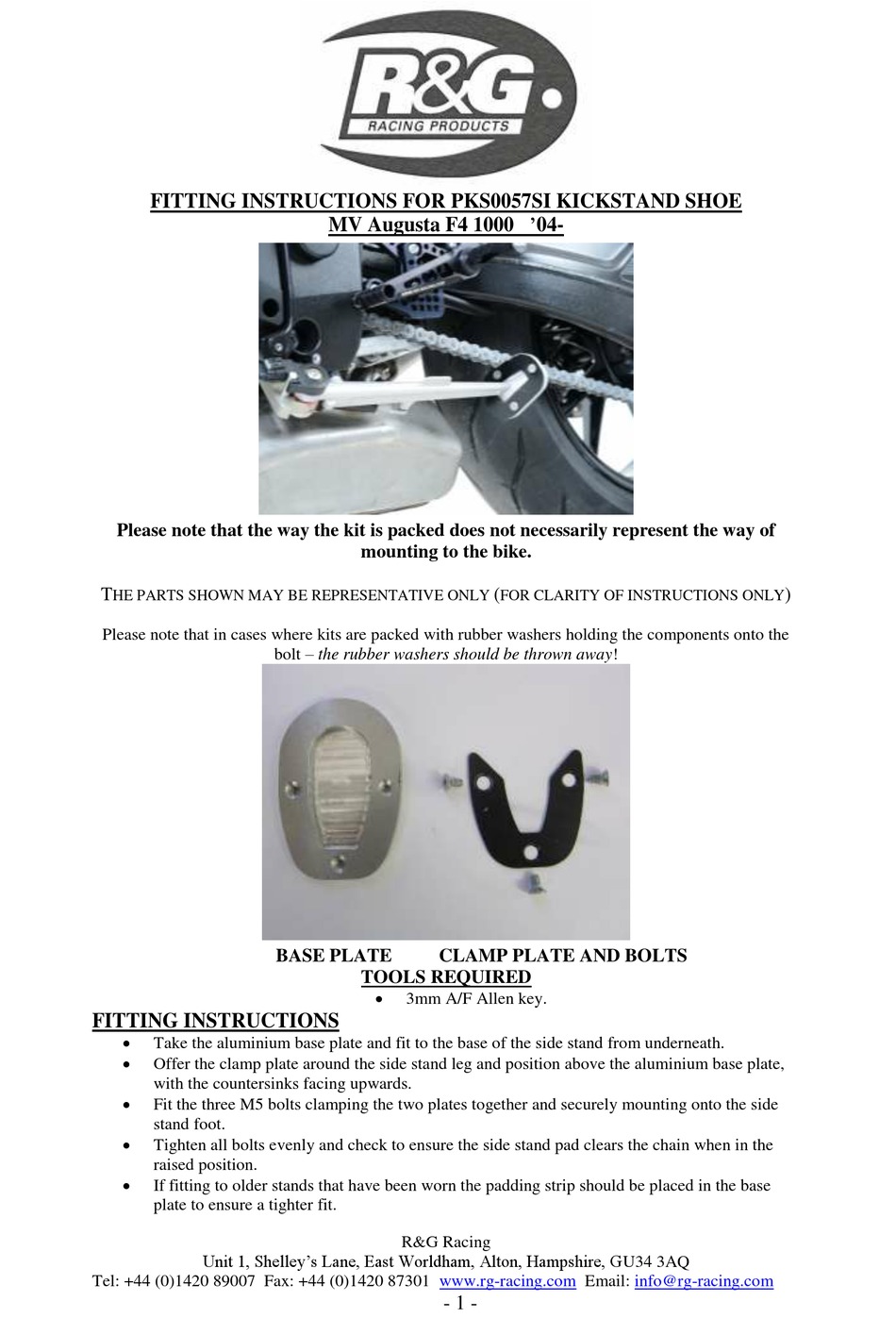

R&G PKS0057SI Fitting Instructions Manual

FITTING INSTRUCTIONS FOR PKS0057SI KICKSTAND SHOE
Please note that the way the kit is packed does not necessarily represent the way of
T
HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY
Please note that in cases where kits are packed with rubber washers holding the components onto the
FITTING INSTRUCTIONS

Take the aluminium base plate and fit to the base of the side stand from underneath.

Offer the clamp plate around the side stand leg and position above the aluminium base plate,
with the countersinks facing upwards.

Fit the three M5 bolts clamping the two plates together and securely mounting onto the side
stand foot.

Tighten all bolts evenly and check to ensure the side stand pad clears the chain when in the
raised position.

If fitting to older stands that have been worn the padding strip should be placed in the base
plate to ensure a tighter fit.
Unit 1, Shelley's Lane, East Worldham, Alton, Hampshire, GU34 3AQ
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301
MV Augusta F4 1000 '04-
mounting to the bike.
bolt – the rubber washers should be thrown away!
Base Plate CLAMP PLATE AND BOLTS

TOOLS REQUIRED


3mm A/F Allen key.
R&G Racing
www.rg-racing.com
(
FOR CLARITY OF INSTRUCTIONS ONLY
Email:
- 1 -
)
