PKS0127SI
PAGE 1 OF 9

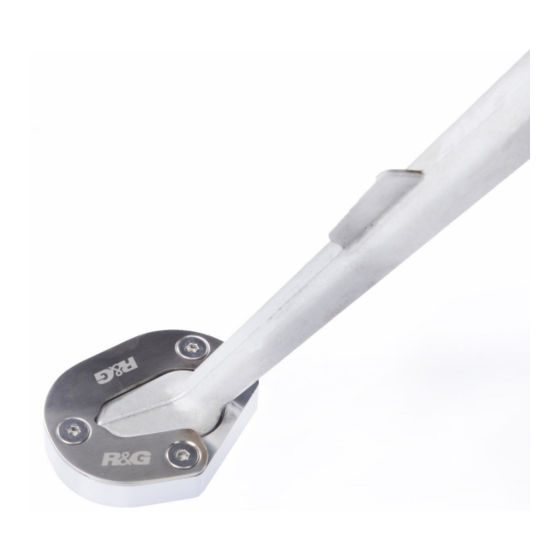

FITTING INSTRUCTIONS FOR PKS0127SI KICKSTAND SHOE FOR
BMW S1000RR 2018-
.
THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE
.
SOME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY
.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT
.
PLEASE READ ALL INSTRUCTIONS BEFORE PROCEEDING
IF IN ANY DOUBT WHEN FITTING OUR PRODUCTS, CONSULT ONE OF OUR DEALERS
OR HAVE FITTED BY A QUALIFIED TECHNICIAN.
PLEASE NOTE THAT THE WAY THE KIT IS PACKED DOES NOT NECESSARILY REPRESENT THE WAY OF
.
MOUNTING TO THE BIKE
,
IN THE EVENT OF RUBBER WASHERS BEING USED TO HOLD COMPONENTS ONTO BOLTS
.
THESE RUBBER WASHERS CAN BE THROWN AWAY
DIGITAL COPIES OF THESE INSTRUCTIONS ARE AVAILABLE FROM:
WWW.RG-RACING.COM
R&G Racing
Unit 1, Shelleys Lane, East Worldham, Alton, Hampshire GU34 3AQ.
Advertisement
Table of Contents
Related Manuals for R&G PKS0127SI
Summary of Contents for R&G PKS0127SI
- Page 1 PKS0127SI PAGE 1 OF 9 FITTING INSTRUCTIONS FOR PKS0127SI KICKSTAND SHOE FOR BMW S1000RR 2018- THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE SOME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT...
-
Page 2: Tools Required
PKS0127SI PAGE 2 OF 9 TOOLS REQUIRED GENERAL TORQUE SETTINGS • 3mm A/F Allen Tool M4 BOLT = 8Nm • Loctite Blue 242 M5 BOLT = M6 BOLT = M8 BOLT = 20Nm 0 BOLT = 40Nm M12 BOLT = 40Nm... -
Page 3: Fitting Instructions
PKS0127SI PAGE 3 OF 9 FITTING INSTRUCTIONS • Take the aluminium mounting plate (Item 1) and fit to the base of the side stand from underneath. • Carefully pass the clamping plate (Item 2) around the side stand leg, with the countersinks facing upwards. - Page 4 PKS0127SI PAGE 4 OF 9 NOTICE DE MONTAGE PKS0127SI PIED DE BEQUILLE BMW S1000RR 2018- E KIT CONTIENT LES ARTICLES EN PHOTO ET ETIQUETTES SUR LA PAGE LES PARTIES PRESENTÉES PEUVENT ETRE UNIQUEMENT REPRESENTATIVES POUR LA CLARTE DES INSTRUCTIONS E PAS ROCÉDER AU MONTAGE AVANT DE VOUS ÊTRES ASSURE QUE TOUTES LES PIECES SOIENT PRÉSENTES...
-
Page 5: Outils Requis
PKS0127SI PAGE 5 OF 9 OUTILS REQUIS VALEURS DE SERRAGE M4 BOULON = 8Nm M5 BOULON = • Clé Allen 3mm M6 BOULON = • Colle Loctite 242 M8 BOULON = 20Nm 0 BOULON = 40Nm M12 BOULON = 40Nm... -
Page 6: Notice De Montage
PKS0127SI PAGE 6 OF 9 NOTICE DE MONTAGE • Prenez la plaque de montage en aluminium (article 1) et fixez-la à la base du pied latéral par le dessous. • Passer délicatement la plaque de serrage (article 2) autour du pied de la béquille latérale, avec les contre alésages tournés vers le haut. - Page 7 PKS0127SI PAGE 7 OF 9 MONTAGEANLEITUNG FÜR PKS0127SI SEITENSTÄNDER- AUFLAGENVERBREITERUNG BMW S1000RR 2018- ALLE KIT-TEILE SIND UNTEN GEKENNZEICHNET UND ABGEBILDET IE ABGEBILDETEN EILE DIENEN LEDIGLICH ZUR RKLÄRUNG Ü BERPRÜFEN IE ZUERST DASS ALLE EILE VORHANDEN SIND LESEN SIE DIE MONTAGEANLEITUNG KOMPLETT DURCH, BEVOR SIE ANFANGEN.
- Page 8 PKS0127SI PAGE 8 OF 9 SIE BENÖTIGEN FOLGENDES WERKZEUG ALLGEM. ANZUGSDREHMOMENT • 3mm A/F Inbusschlüssel M4 SCHRAUBE = 8Nm • Loctite Blue 242 M5 SCHRAUBE = M6 SCHRAUBE = M8 SCHRAUBE = 20Nm 0 SCHRAUBE = 40Nm M12 SCHRAUBE = 40Nm...
- Page 9 PKS0127SI PAGE 9 OF 9 MONTAGEANLEITUNG • Nehmen Sie die Grundplatte aus Aluminium (Artikel 1) und montieren Sie sie an der Unterseite des Seitenständerfuß. • Montieren Sie die Klemmplatte (Artikel 2) über dem Fuß des Seitenständers, die Versenkungen nach oben gerichtet.
