INSTALLATION INSTRUCTIONS

22572T-9

Deck Mount Diverter And Handshower

BEFORE YOU BEGIN

All information is based on the latest product information available at the time of publication. Kohler Co. reserves

the right to make changes in product characteristics, packaging, or availability at any time without notice.

Please leave these instructions for the consumer. They contain important information.

NOTES:

1. Shut off the main water supply.

2. Carefully read entire instructions before beginning installation.

3. Observe local plumbing codes.

4. This faucet has switching function only. It must work with a bath faucet (purchased separately) that has both

on/off and hot/cold mixing control.

5. The highest working pressure for handshower is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar), a pressure reducer

is needed. The highest water and environment temperature is 60ºC. Please keep handshower, showerhead and

shower arm away from heater, or it may become damaged and cause injury to the user.

HANDLE OPERATION

Turn diverter handle clockwise for bath spout, turn counter-clockwise for handshower, middle position for both.

Press the buttons of the handshower to change the water flow.

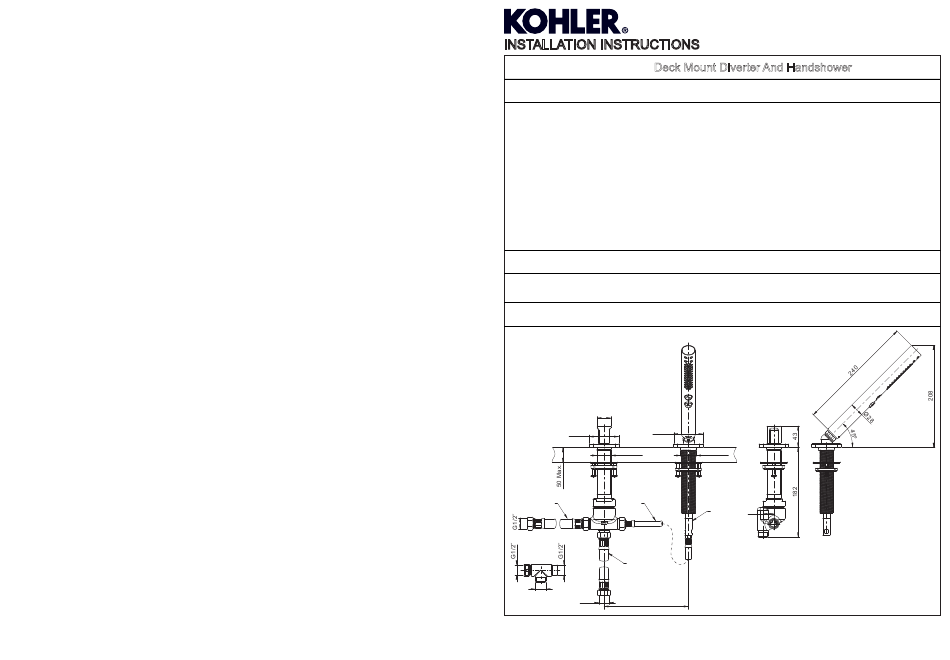

ROUGH-IN DIMENSIONS

Ø28

60×60

Ø30~Ø35

1000

600

1000

G1/2˝

200 Min.

1332564-2A-B

PARALLEL

Ø33~Ø40

2000

Page 1 Deck Mount Diverter And Handshower BEFORE YOU BEGIN All information is based on the latest product information available at the time of publication. Kohler Co. reserves the right to make changes in product characteristics, packaging, or availability at any time without notice.
Page 2 INSTALLATION How to Install the Diverter Body Pre-install the screws(10) into the screw holes of the threaded ring(9). Install the threaded ring, steel washer(8) and fiber washer(7) on the shank(11). From underside of the bathtub, install the diverter assembly(12) into the mounting hole. Put the O-ring(6) into the groove of the nut(5).
Page 3 PARALLEL SERVICE PARTS 22572T-9 Deck Mount Diverter And Handshower 1297467** 1046290 832751 1332559** 1240266 1030624 77420 1332555 897637** 1010167 880010 22352 1110332 AF:1368618-ACP BN:1368618-BCP 3029882 BL:1368618-LCP RGD:1368618-RCP 831587 CP & Others:898324** 1332549** 1332556 836316 834683 78125 1007995 75100-58 1332558 How to Connect the Hose...
Page 4 Put the washer(30) into the nut(32) of the tee(31). Then connect the tee(31) to one side body(33) of the deck mount bath faucet. Do not use abrasive cleaners or solvents on Kohler faucets and fittings. Put the fiber washer(34) into the nut(35). Tighten the nut to one of the ports of the center tee(36) for the spout.
