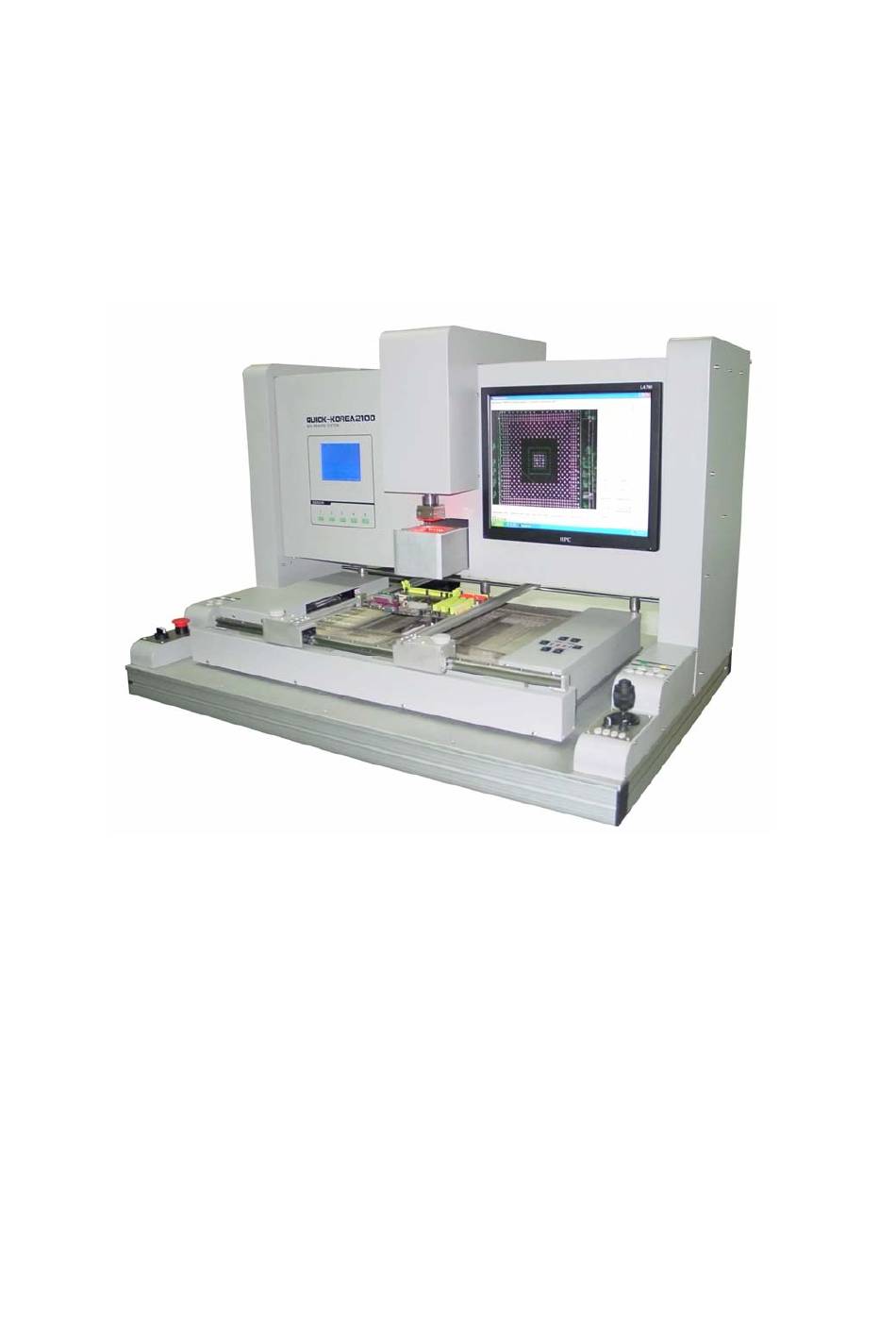

- Page 1 QUICK BGA 2100...
-
Page 2: Specifications And Technical Parameters
PCB and lead-free solder, moving automatically in X-axis to heating the PCB evenly. QUICK BGA2100 Rework System with 60*60mm optics aligning prism, big BGA alignment can see clearly and the aligning lens are controlled by the step motor and the chip slave is above the lens. The PCB fixture is square and the maximum size is 550*450mm, the width of the left and right arms can be adjusted and the abnormity knightheads can be fixed on the arms. -
Page 3: Technical Parameter
±0.025mm 12. paste precision 13. Paste force 1.5N 14. camera： 12V/300mA 22*10 Horizontal resolution: 480 TV lines PAL format (composite) 15. LED light： White LED (lower side), Red LED (upper side) (with adjustable brightness) 16. LCD： Size: 100*75 (mm) 16×2 character 17. -
Page 4: System Interface
KT1~KT5: the testing temperature on the PCB with the outer K-type sensor 1~5 KTC: The real temperature of the top sirocco heater KTB： The real temperature of the bottom sirocco heater TIR： The setting temperature of bottom infrared heater KIR： The real temperature of the bottom infrared heater TOH：... - Page 5 * Check the package of the equipment is good or not. * Take out the QUICK 2100 rework system from the package and place it on the solid working desk. * Check every unit is good or not. If not, please replace the unit from our company or agents in time.
-
Page 6: Heater System
4.1 S ensor Small LCD The system has five K type sensors for checking the temperature on the PCB, such as the temperature of BGA surface, bottom temperature of the PCB, real temperature of the tin ball. And these values can show K-type sensor on the LCD. - Page 7 accord with the PCB’s size. Fix the PCB between them and screw the lock knobs. And then screw the fixture lock knob. 4. Before doing the precise alignment, please screw the Fixture Lock Knob. By “PCB MOVE CONTROL” to control the alignment from X, Y and θ. 5.
- Page 8 *Keys on the right side Infrared heater switch: controlling the corresponding heater is on or off. The middle two heaters (red mark) are on. 1. Press the key on the top of the rocker “PCB MOVE CONTROL” and when swinging the rocker leftward or rightward, the PCB fixture will do the corresponding movement, leftward or rightward.
- Page 9 ● Aligning arm is controlled by the “CAMERA” key. Pressing “CAMERA” key, when the aligning arm is in side, it will move automatically from inner to outer and stop in one line with the top heater, and when the aligning arm is outside, it will do the opposite action to the initial state.
- Page 10 2. If you click the “cancel” button, it will run into the Main interface directly. 3. If you want to set the password, input the numeric values from 1 to 999 by the keyboard. The password in the “password input” and the “password confirmation” must be the same each other. And then click “hanged login password”...
- Page 11 1. Click “alignment” tab, it will display the alignment interface and the alignment arm will move out. 2. For getting a clear image, it can adjust the light and focus the image by clicking the button at the right side or by the keys or rocker on the unit.
- Page 12 These parameter values can be set. Note: only when you have set the password and login with the correct password, the parameter values can be set. f) Curve analysis Tab 1. Click “curve analysis” tab, it will display the Parameter analysis interface. 2.
- Page 13 5) Communication option 6) Video option 7) Language (simplified Chinese or English can be selected.) 8) The mode of heater head running down (0 or other digit). 10、 Operating Technics Instruction Note: Top and Bottom Heater will be very hot during working, so please don’ touch the hot surface of the parts.
- Page 14 besides, the left cooling fan blows the cold air at the same time until up to the time. The effect of cooling is better when blowing cooling air simultaneously. Note: The process of the De-soldering technics is same with the soldering technics besides selecting “DESO” when setting the process parameter.
