Summary of Contents for Webasto FCF 5000

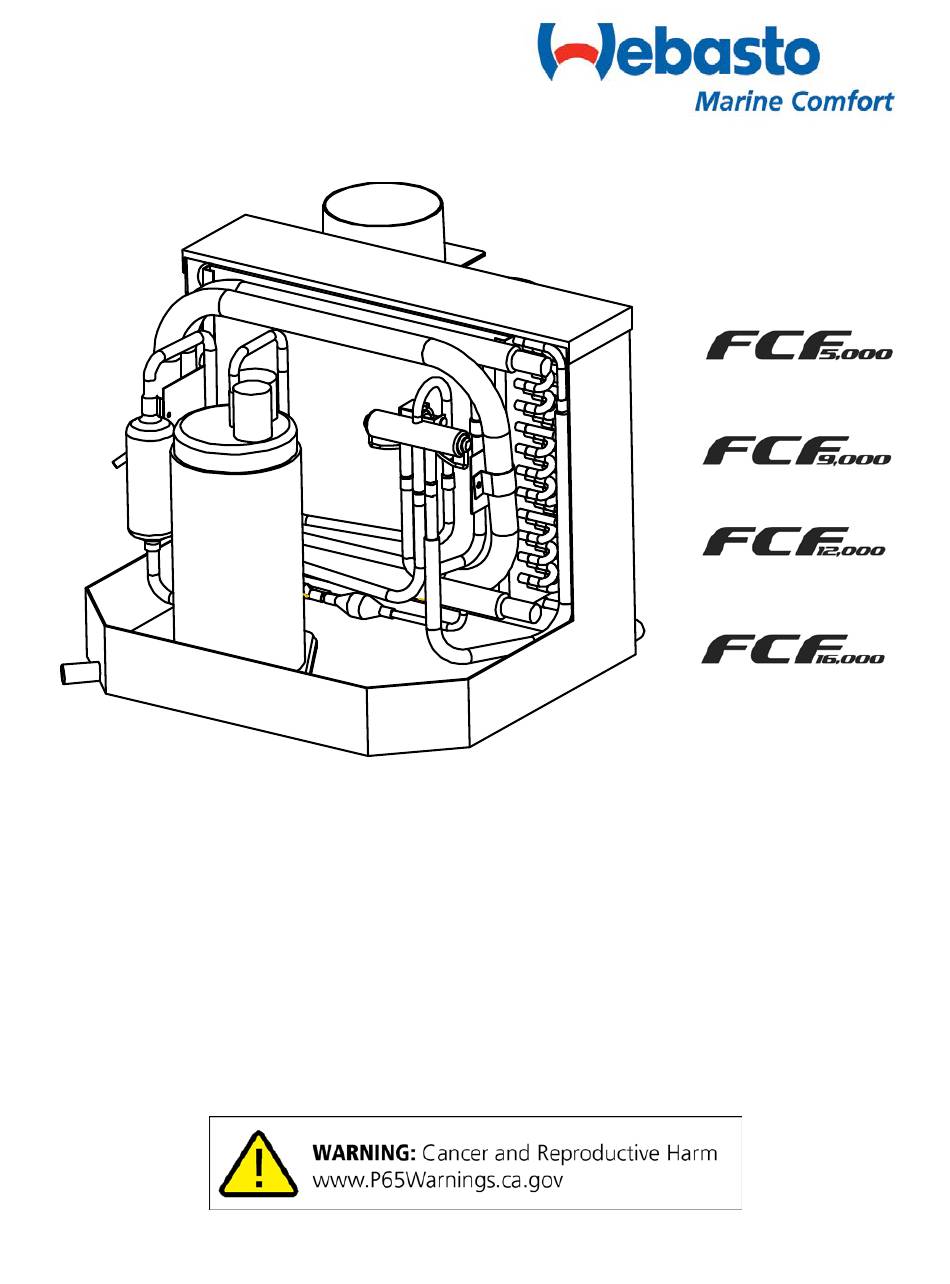

- Page 1 MARINE AIR CONDITIONER Quick Reference Operation Guide Rev: 11/2019...
- Page 3 Quick Reference Guide – FCF 5,000, 9,000, 12,000, 16,000 Table of Contents HOW IT WORKS ................................4 OPERATION ................................4 WALL MOUNT CONTROL OPERATION ........................4 Power ON/OFF ..............................5 FAN Control .................................5 Temperature Setting ............................5 MODE Setting ..............................5 Display Fahrenheit or Centigrade ........................5 Error Codes .................................5 Key lock ................................5 REMOTE CONTROL OPERATION ........................6...
- Page 4 Quick Reference Guide – FCF 5,000, 9,000, 12,000, 16,000 How It Works Your self-contained air conditioner consists of four main components and a refrigerant gas circulating through the system. The BLOWER draws warm cabin air across the fins on the EVAPORATOR where the heat from the air is transferred to the refrigerant in the evaporator coil.
- Page 5 Quick Reference Guide – FCF 5,000, 9,000, 12,000, 16,000 • Power ON/OFF Press ON/OFF button to turn the unit on. Press it again to turn the unit off. • FAN Control Press the FAN button, the fan speed will change in the following order: →...
- Page 6 Quick Reference Guide – FCF 5,000, 9,000, 12,000, 16,000 REMOTE CONTROL OPERATION Be sure that there are no obstructions between the remote and controller. ● The remote control has a signal range up to 33’ (10m). ● Do no expose the remote control to water, direct sunlight or high temperatures. This remote control is designed for multiple applications.
- Page 7 Quick Reference Guide – FCF 5,000, 9,000, 12,000, 16,000 MODE DESCRIPTIONS COOL Mode Description ● According to the difference between room temperature and set temperature, the microcomputer will decide if cooling mode is on or off. ● If room temperature is higher than set temperature, unit runs in cooling mode. ●...
- Page 8 Webasto Product N.A., Inc. Technical Assistance Hotline Phone: (800) 860-7866 Outside U.S. (810) 593-6000 www.webasto.us www.techwebasto.com Rev. Date: March 17, 2020...
