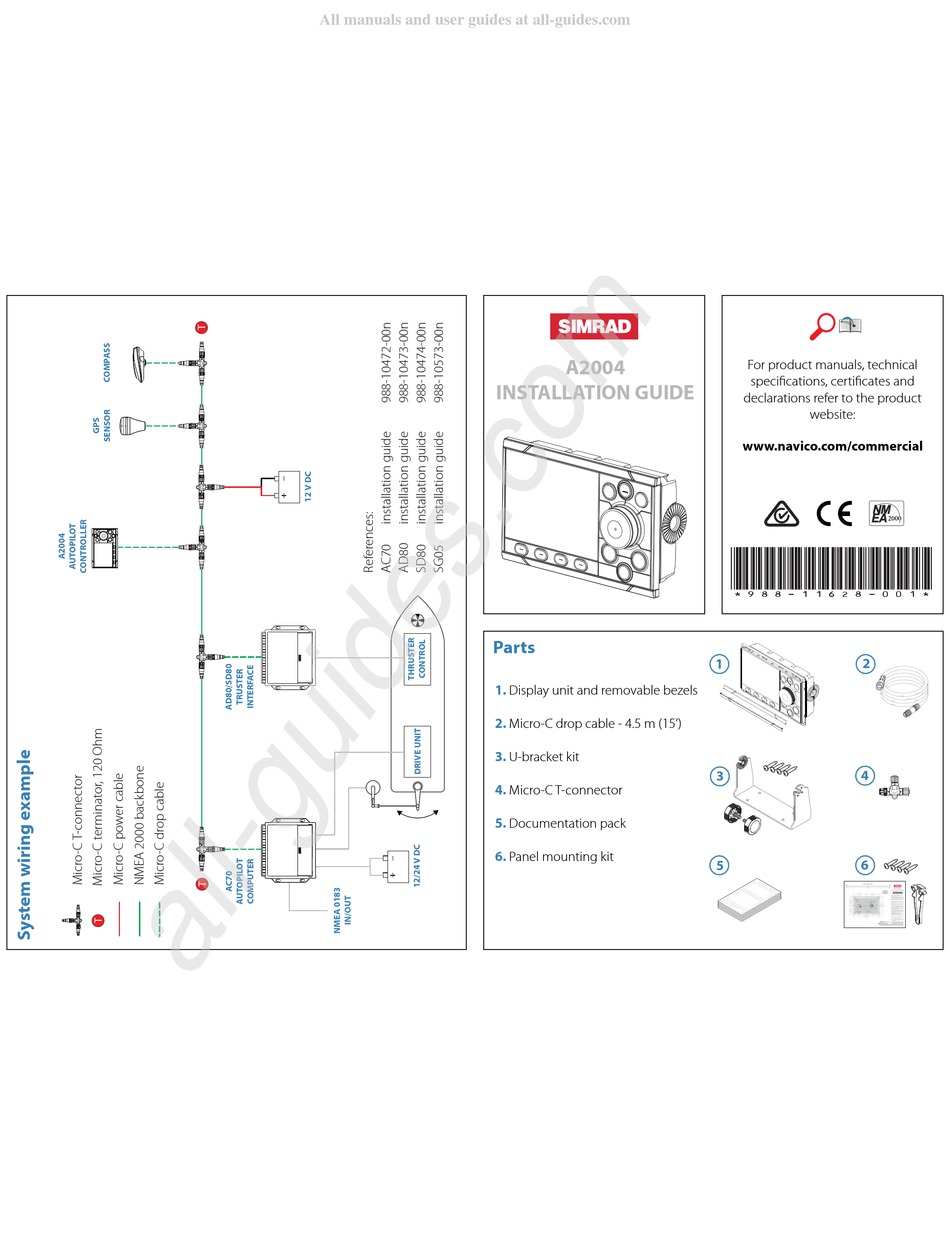

INSTALLATION GUIDE
Parts
1.
2.
3.
4.
5.
6.
A2004

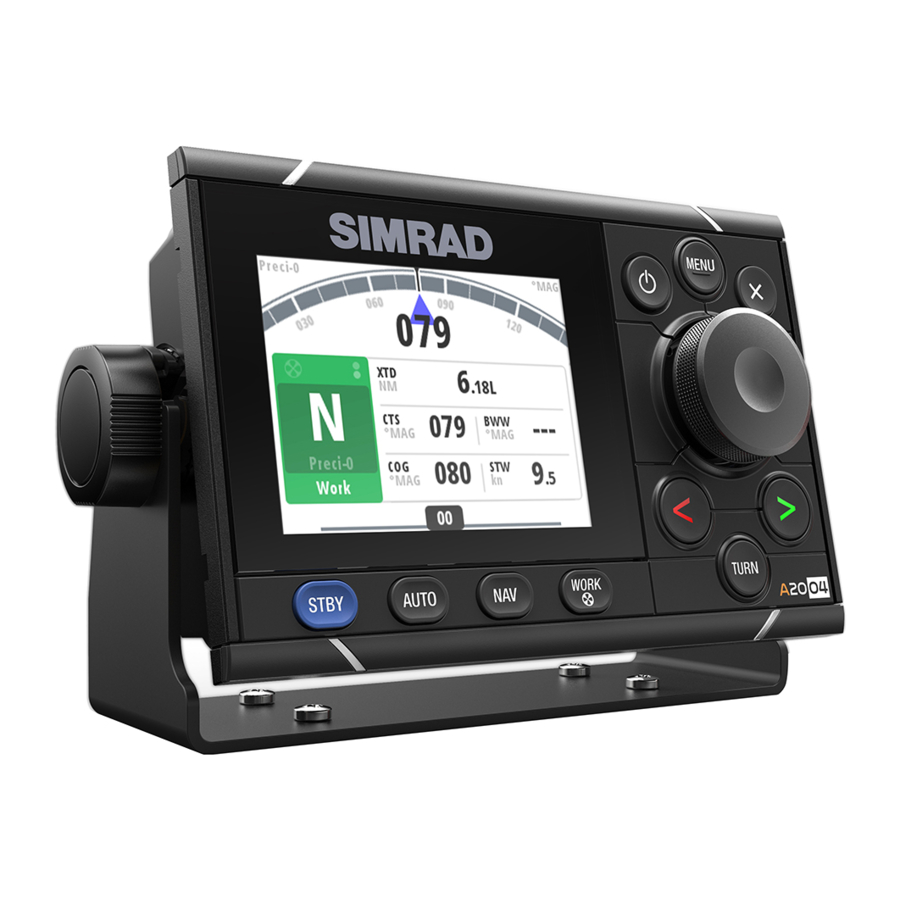

Display unit and removable bezels
Micro-C drop cable - 4.5 m (15')
U-bracket kit
Micro-C T-connector
Documentation pack
Panel mounting kit
For product manuals, technical
specifications, certificates and
declarations refer to the product
website:
www.navico.com/commercial
*988-11628-001*
2
1
4
3
5
6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Simrad A2004
Summary of Contents for Simrad A2004
- Page 1 All manuals and user guides at all-guides.com A2004 For product manuals, technical specifications, certificates and INSTALLATION GUIDE declarations refer to the product website: www.navico.com/commercial *988-11628-001* Parts Display unit and removable bezels Micro-C drop cable - 4.5 m (15’) U-bracket kit...
- Page 2 All manuals and user guides at all-guides.com Dimensions without bracket Dimensions with bracket 56.1mm 55.4mm (2.21") (2.18") 56.1mm 55.4mm 204.8mm 177.0mm 23.1mm 33.0mm (2.21") (2.18") (6.97") (8.06") (0.91") (1.30") 115.0mm (4.53") 124.5mm (4.90") 84.6mm (3.33") -25°C to +65ºC -25°C to +65ºC -13°F to +149 ºF -13°F to +149 ºF IPX7...
