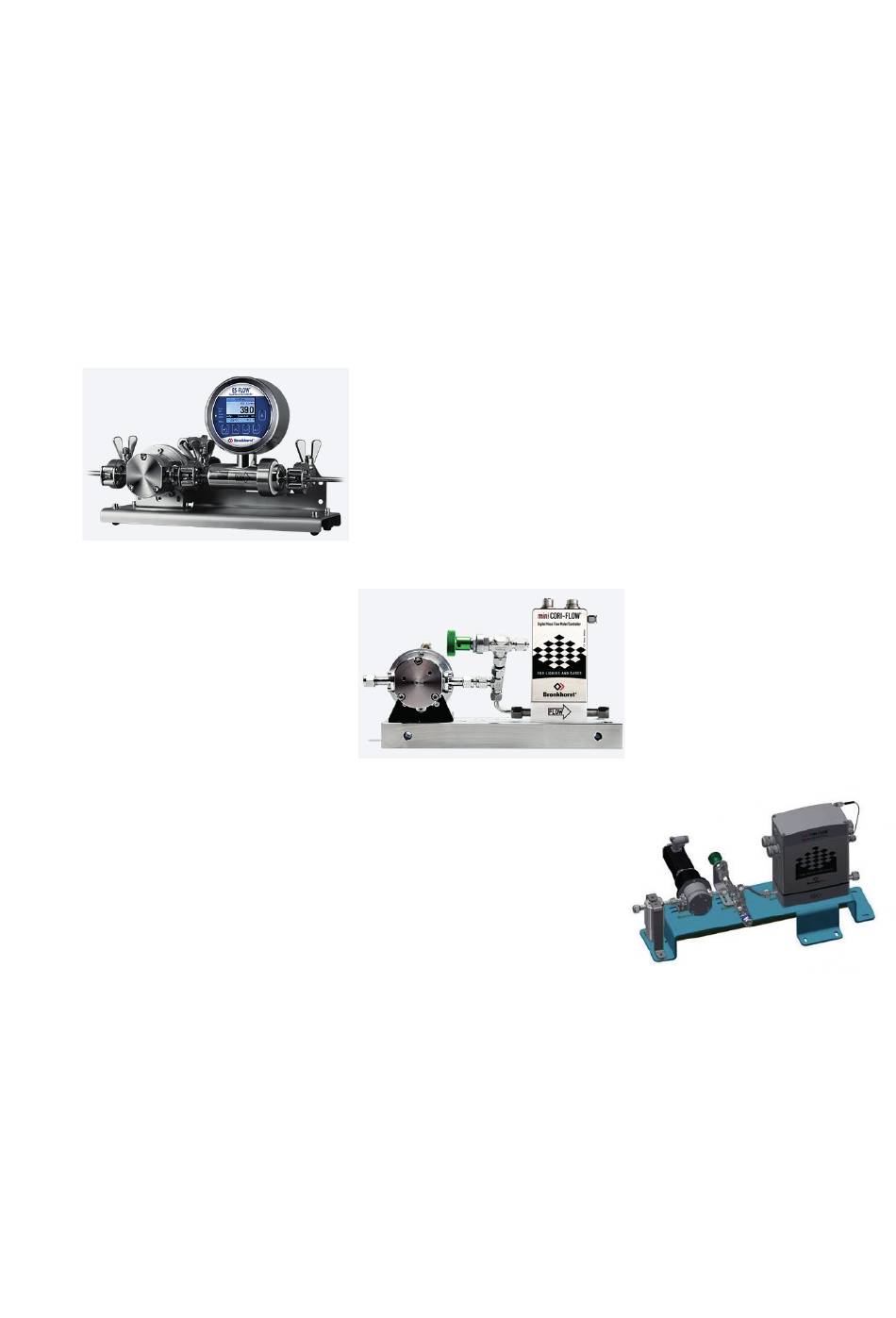

- Page 1 Liquid Dosing Control Manual Dosing functions and parameter overview 9.17.150 REV A September 2020...
-
Page 2: Table Of Contents
Liquid Dosing Control Manual 9.17.150 rev A – September 2020 Introduction ..............................3 Reference documents ........................... 4 Connect and Configure ......................... 5 Connect with the device ....................... 5 2.1.1 Via FlowDDE and FlowPlot ...................... 5 2.1.2 Via FlowSuite ..........................5 2.1.3 Via user specific control platform .................... -
Page 3: Introduction

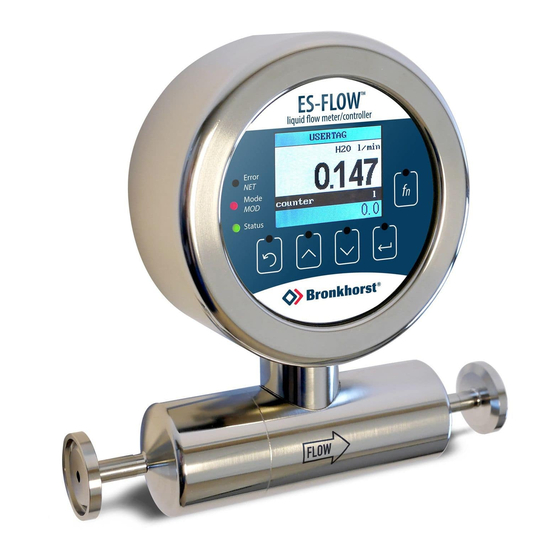

This document provides a description of functions required for a successful operation of the Liquid Dosing Set (LDS). These functions are listed in detail, including applicable pre-conditions, manual actions and involved instrument parameters. The scope for this version of the document includes: Bronkhorst controlling instrument ES-FLOW series mini CORI-FLOW M-series mini CORI-FLOW MI-series... -
Page 4: Reference Documents
Liquid Dosing Control Manual 9.17.150 rev A – September 2020 1. Reference documents The documentation listed can be downloaded from www.bronkhorst.com/downloads Type Document Document number Manual DeviceNet™ interface 9.17.026 EtherNet/IP interface 9.17.132 CANopen interface 9.17.131 EtherCAT® interface 9.17.063 FLOW-BUS interface 9.17.024... -
Page 5: Connect And Configure
2.2.2 Change configuration from Flow Meter to Flow Controller When the Bronkhorst instrument has been purchased as a controller, then the controller functions have been enabled. If an instrument was originally purchased as a flow meter and needs to be configured as a controller, then please contact your local Bronkhorst representative for support. -
Page 6: Change Flow Settings - Mass Or Volume
2.2.3 Change Flow Settings – Mass or Volume (mini) CORI-FLOW The Bronkhorst Coriolis based flow meters are mass flow meters. Setpoint and measurement values can be displayed in volume flow units using an internal conversion. 3 options are currently available... - Page 7 Liquid Dosing Control Manual 9.17.150 rev A – September 2020 ES-FLOW The Bronkhorst Ultrasonic based flow meters are volume flow meters. Setpoint and measurement values can be displayed in mass flow units using an internal conversion. 2 options are currently available.
-
Page 8: Change Flow Settings - Capacity Unit
Liquid Dosing Control Manual 9.17.150 rev A – September 2020 2.2.4 Change Flow Settings – Capacity Unit The options for the capacity unit can be found in the table below. Changing between mass flow or volume flow can affect the displayed capacity unit. Capacity unit index (Actual) FLOW-DDE 23... -
Page 9: Change Flow Settings - Capacity Value
The instrument has a set minimum and maximum Full Scale capacity, which are the operating limits of the instrument as set by Bronkhorst according to the specification sheet. The Capacity Value can be changed between these minimum and maximum values. -
Page 10: Dosing Specific Settings - Response Alarm / Dry Running Protection Alarm
Liquid Dosing Control Manual 9.17.150 rev A – September 2020 2.2.6 Dosing specific settings – Response Alarm / Dry Running Protection Alarm Enable Response Alarm / Dry Running Protection Alarm The response alarm is setup to trigger when the measured value does not reach the setpoint within a certain time. -
Page 11: Dosing Specific Settings - Out Signal To External Device
Instruments within the ES-, MI- and ML-series have the option to trigger an external device, such as a indication light or sound. To configure a physical output on the instrument, please contact your local Bronkhorst representative for support. Page 11 of 34... -
Page 12: Ratio Dosing Specific Configuration Settings
The ratio of liquid to be dosed is 1 : 1,000, for every 1,000 kg measured in the main flow, the Liquid Dosing Set will need to add 1 kg of liquid. The Bronkhorst controller is configured for 10 kg / h (Capacity Value) Capacity Value Master... -
Page 13: Batch Dosing Specific Configuration Settings
Liquid Dosing Control Manual 9.17.150 rev A – September 2020 Example The ratio of liquid to be dosed is 1:25. Capacity Value Master 1,000 kg / hr (100%) Capacity Value Slave 200 gr / hr (100%) Ratio 1:10,000 At 100% Master flow, a dosage of 1:10,000 for 1,000 kg = 100 gr 100 gr = 50% of the Slave Capacity Slave Factor Or, by adjusting the Capacity Value (100% - point) of the instrument to... - Page 14 Liquid Dosing Control Manual 9.17.150 rev A – September 2020 (Batch size = Flow x Time. As soon as the delivered batch size reaches the configured batch size, the flow is stopped. Depending on the importance of accuracy as opposed to dosing speed, proportional control or on/off control is advised.
- Page 15 Liquid Dosing Control Manual 9.17.150 rev A – September 2020 Write value <index> to parameter 128 – Counter Unit (Measurement unit per batch) Write value 1 to parameter 126 – Counter Setpoint Mode (Enable new setpoint on limit) Write value 0 to parameter 127 – Counter New Setpoint (Setpoint 0 on batch limit) When configuring the instrument for batch dosing, always set New setpoint on limit to 0.
- Page 16 Liquid Dosing Control Manual 9.17.150 rev A – September 2020 For example, when execute a batch with a flow rate of 100 g/h at an Full scale capacity of 100 g/h is more accurate then at an Full Scale capacity of 1000 g/h. ×...
-
Page 17: Prepare For Operation
9.17.150 rev A – September 2020 3. Prepare for operation The main purpose of this section is to prepare the Bronkhorst Liquid Dosing Set for operation. This includes filling the controlling instrument and actuator with liquid, flushing all the air from the dosing set, and performing an instrument Auto-Zero function. -
Page 18: Flush The System
Liquid Dosing Control Manual 9.17.150 rev A – September 2020 3. Wait until liquid is present in the system Visually check if liquid is present downstream of the Liquid Dosing Set (observed in process, visibile in clear tubing if used, ……) Wait 60 seconds Monitor the Actual Density reading (mini CORI –... - Page 19 Write value 3 to parameter 12 – Control Mode (Actuator 0%) 4. Optional steps for actuator – Valve with bleed connection (i.e. Bronkhorst C2 valve) Ensure the bleed connection or bypass are connected to a suitable container or waste line...
- Page 20 See Installation Manual – Liquid Dosing Sets (9.17.146) for instructions 6. Completion of Flush step Check for leakages with complete system being filled Close (if applicable) process valves outside the Bronkhorst set to avoid unexpected liquid flows Re-Enable Batch Mode if required for operation Write value 2 to parameter 130 –...
-
Page 21: Verify System Status
Liquid Dosing Control Manual 9.17.150 rev A – September 2020 3.3 Verify system status The system readiness for operation can be checked by monitoring the below parameters (assuming Idle condition) Internal temperature sensor When the internal temperature sensor provides a stable measurement value, then this is an indication of a stable liquid supply temperature, stable ambient temperatures, and a completion of the warm-up time of the instrument. -
Page 22: Zero Procedure
Liquid Dosing Control Manual 9.17.150 rev A – September 2020 3.4 Zero procedure Preconditions The system is filled with fluid The Liquid Flow Controller has been powered on for > 30 minutes The ambient conditions match the operating environment of the instrument 1. -
Page 23: Operate The Liquid Dosing Set
Liquid Dosing Control Manual 9.17.150 rev A – September 2020 4. Operate the Liquid Dosing Set 4.1 Start dosing Check hardware Ensure all valves in the system are set correctly for operation 4.1.1 Continuous Dosing Provide flow setpoint to controller Write value 0 to parameter 12 –... -
Page 24: Ratio Dosing
Liquid Dosing Control Manual 9.17.150 rev A – September 2020 4.1.2 Ratio Dosing Refer to section 1.2.8 on how to determine the input setting (Slave Factor) Write determined factor (setpoint internally calculated based on external input signal and factor) Write value <_> to parameter 139 – Slave Factor (0 –... -
Page 25: Pause Dosing
Liquid Dosing Control Manual 9.17.150 rev A – September 2020 Reset Batch Counter to start next batch Write value 3 to parameter 114 – Reset (Reset counter) Step ProP Name Data type Execute Value Remark 104/ Counter Mode Uint8 write Counter up to limit [batch mode] Setpoint Uint16... -
Page 26: Read Parameters
Liquid Dosing Control Manual 9.17.150 rev A – September 2020 Data Step ProPar Name Execute Value Remark Type Stop Dosing Uint8 33/3 fSetpoint write In Capacity Unit. Float Setpoint write 0-32000 = 0-100% 104/8 Counter Mode Uint8 write Counter Mode = OFF [Batch mode = OFF] 4.4 Read parameters Parameters to be read from the instrument for monitoring or logging purposes. - Page 27 Liquid Dosing Control Manual 9.17.150 rev A – September 2020 Actuator out Read parameter 55 – Actuator Out (Actuator in %) Density (Coriolis) Read parameter 270 – Actual Density (Density in kg/m External Master Flow (ratio dosing) Read parameter 11 – Analog Input (analog input of slave = measure of master) Parameter is without flow unit and is depending on the configuration of the input signal.
-
Page 28: Optimize Control Settings
Log or store the default control settings Ensure process variations are minimized or eliminated Make changes with small increments Request support from a trained Bronkhorst service engineer Please refer to the specific Liquid Flow Controller manual for more details and instructions. 5.1 Changing Filter Settings Controller speed can be increased by changing or disabling output and sensor filters. -
Page 29: Actuator Control Speed
This setting is default not used and therefore set to value 0. In Bronkhorst flow setups it can be useful if the volume between the sensor and valve is relatively large (e.g. when the sensor and actuator are mounted away from each other). -
Page 30: Correct For Actuator Delay
Liquid Dosing Control Manual 9.17.150 rev A – September 2020 5.4 Correct for actuator delay A control valve (or pump) needs a minimum electrical current (threshold) to open (or start running). Normally, when opening the valve, the current is increased gradually, until the threshold is reached and the valve opens. -
Page 31: Batch Dosing Specific Control Optimization
Liquid Dosing Control Manual 9.17.150 rev A – September 2020 5.6 Batch Dosing specific control optimization In addition to the previously listed parameters, for Batch Dosing applications the below listed optimizations can provide extra benefit to the behaviour of the Liquid Dosing Set. 5.6.1 Minimize ON/OFF Valve temperature When working with fluids with a low boiling/evaporation point, it can be useful to limit the power... -
Page 32: General Guide For Batch Dosing Optimization Based On Observation
Liquid Dosing Control Manual 9.17.150 rev A – September 2020 5.6.3 General guide for batch dosing optimization based on observation Based on the summary table as listed in the Instruction Manual mini CORI-FLOW ML120, 9.17.097, paragraph 5.4. For functioning links to specific parameters, please use the link to the Instruction Manual. Page 32 of 34... -
Page 33: Parameters
Liquid Dosing Control Manual 9.17.150 rev A – September 2020 6. Parameters ProPar Name Data Type Range Remark 0/10 Init Reset Uint8 64 or 82 Lock secured parameters Measure Uint16 0…32000 0-32000 = 0-100% Setpoint Uint16 0…32000 0-32000 = 0-100% 33/0 fMeasure Float... - Page 34 Liquid Dosing Control Manual 9.17.150 rev A – September 2020 104/11 Counter Float 1…100 % of Batch size [point to ramp down] Controller Gain 33/7 Temperature Float In degrees Celcius 104/9 Reset Counter Uint8 0…15 Enable reset source Enable 114/30 Controller Float 0…10...
