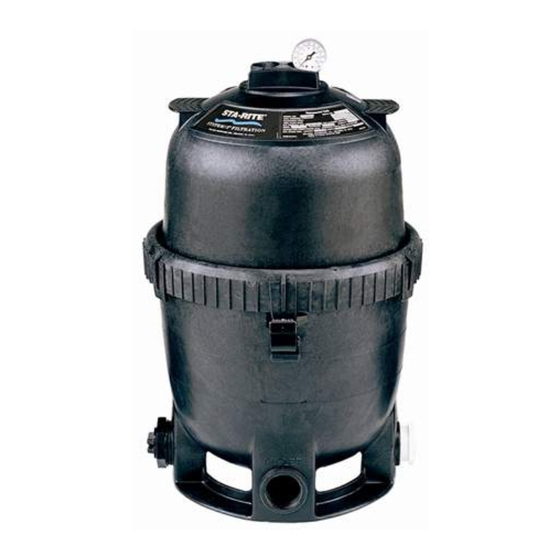

STA-RITE PLM100 Replacement Instructions

Sta-Rite Replacement Upper/Lower Half Filter Tank Kit Instructions
Hazardous pressure.
Can cause severe
injury from tank blow
up.
Release all pressure
and read instructions
before working on filter.
Figure 1 – Depress safety latch to
Depress Safety Latch
unscrew Posi-Lok™ Ring.
to unscrew Posi-Lok™
Figure 2 – Insert ring tab in slot
in filter body.
Figure 3 – Roll ring to one side to
loosen upper tank half.
Sta-Rite Pool/Spa Group
293 Wright Street, Delavan, WI 53115
International: 262-728-5551, FAX: 262-728-7550
www.starite.com
Union City, TN • Delavan, WI • Mississauga, Ont. • Murrieta, CA
© 2004, Sta-Rite Industries
Nameplate
Decal
Operation
Instructions
Decal
INSTALLING DECALS: (Tank Upper Half Only):
1. Make sure replacement upper half is clean and dry. Apply decals as shown.
2. Read warning and operating instruction decals.
DISASSEMBLY:
1. STOP PUMP; CLOSE isolation valves. OPEN air release valve and
drain fitting. Drain all water from tank.
2. WAIT until all pressure is released and water drained from filter tank and
system before loosening Posi-Lok™ Ring.
3. Remove Posi-Lok™ ring as follows:
a. Press safety latch (below the ring) toward tank to release it (Figure 1).
b. Hold latch in the release position and rotate ring COUNTERCLOCKWISE
to remove. If ring is difficult to turn, tap gently with a rubber mallet.
NOTICE: DO NOT use a screwdriver or sharp blade to pry tank shells apart.
4. Separate upper and lower tank shell halves using tabs on bottom of
Posi-Lok™ ring. Insert tab into slot located at tank joint and twist ring to pry
shell halves apart (See Figures 2 and 3).
5. Remove O-ring from upper tank shell. Inspect for cuts, cracking,
deformation or signs of wear; replace if necessary.
NOTICE: To avoid strain or damage, allow filter module to drain before
lifting it out of the tank.
6. When replacing lower tank half, install internal tank parts in new tank.
Connect to plumbing as in original installation.
(Continued on back of sheet)
Printed in U.S.A.
E
RELEASE
S380 (Rev. 8/24/04)
Warning
Decal
Logo
Decal
