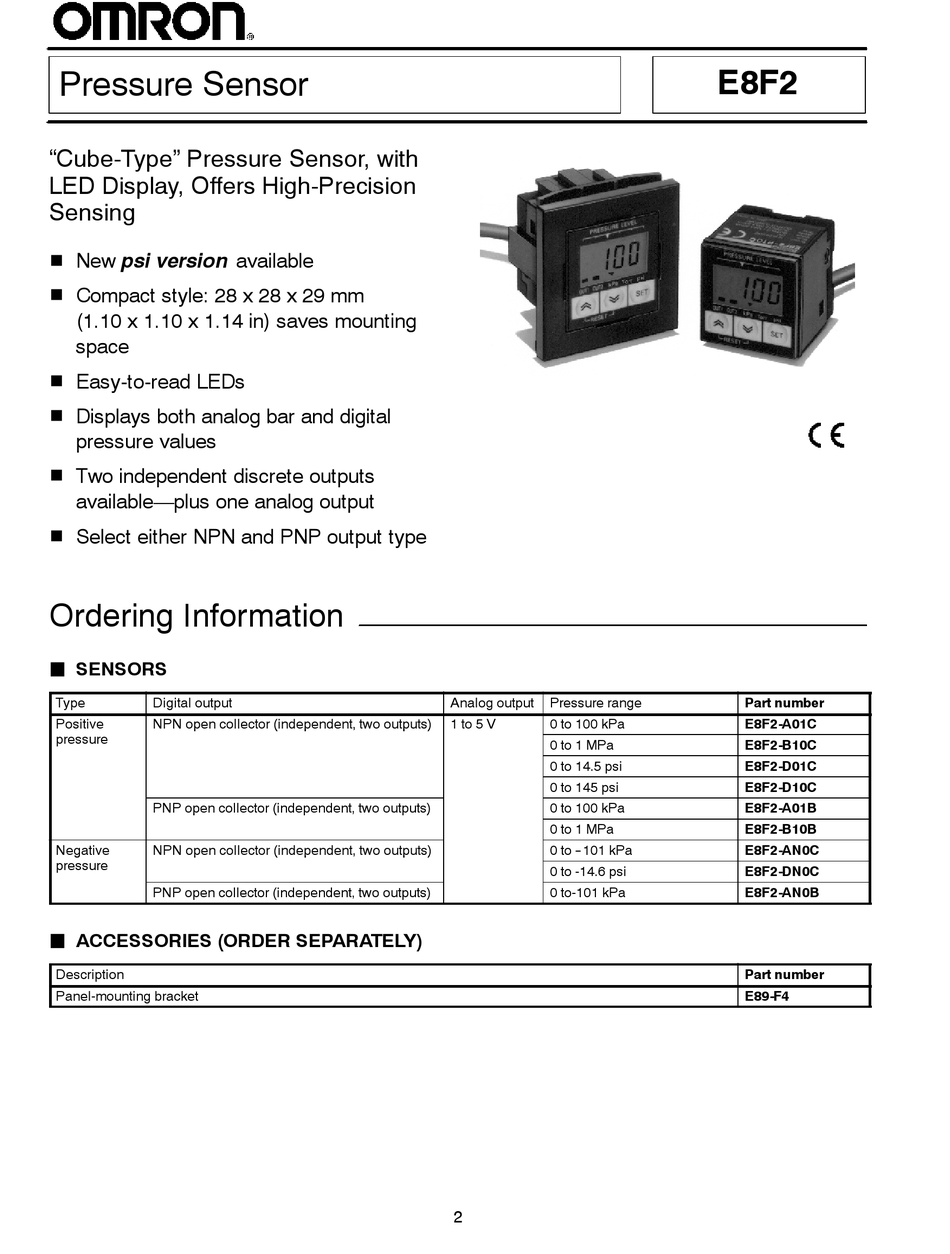

Pressure Sensor
"Cube-Type" Pressure Sensor, with
LED Display, Offers High-Precision
Sensing
New psi version available
H
Compact style: 28 x 28 x 29 mm
H
(1.10 x 1.10 x 1.14 in) saves mounting
space
Easy-to-read LEDs
H
Displays both analog bar and digital
H
pressure values
Two independent discrete outputs
H
available—plus one analog output
Select either NPN and PNP output type
H
Ordering Information
J SENSORS
Type
Digital output
Positive
Positive
NPN open collector (independent, two outputs)
NPN open collector (independent, two outputs)
pressure
PNP open collector (independent, two outputs)
PNP open collector (independent, two outputs)
Negative
Negative
NPN open collector (independent, two outputs)
NPN open collector (independent, two outputs)
pressure
PNP open collector (independent, two outputs)
J ACCESSORIES (ORDER SEPARATELY)
Description
Panel-mounting bracket
Analog output
Pressure range
1 to 5 V
1 to 5 V
0 to 100 kPa
0 to 1 MPa
0 to 14.5 psi
0 to 145 psi
0 to 100 kPa
0 to 1 MPa
0 to - - 101 kPa
0 to -14.6 psi
0 to-101 kPa
2
E8F2
Part number
E8F2-A01C
E8F2-B10C
E8F2-D01C
E8F2-D10C
E8F2-A01B
E8F2-B10B
E8F2-AN0C
E8F2-DN0C
E8F2-AN0B
Part number
E89-F4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E8F2 and is the answer not in the manual?

Questions and answers

Related Manuals for Omron E8F2

Summary of Contents for Omron E8F2

  • Page 1 E8F2 Pressure Sensor “Cube-Type” Pressure Sensor, with LED Display, Offers High-Precision Sensing New psi version available Compact style: 28 x 28 x 29 mm (1.10 x 1.10 x 1.14 in) saves mounting space Easy-to-read LEDs Displays both analog bar and digital...

  • Page 2: Application Examples

    E8F2 E8F2 Application Examples J CHIP ATTACHMENT J AIR PRESSURE J PCB AND WAFER CHECKS CHECKS ATTACHMENT CHECKS E8F2 E8F2 E8F2 Specifications J RATINGS/CHARACTERISTICS Item E8F2- E8F2- E8F2- E8F2- E8F2- E8F2- E8F2- E8F2- E8F2- A01C B10C AN0C D01C D10C DN0C...
  • Page 3 E8F2 E8F2 Item E8F2- E8F2- E8F2- E8F2- E8F2- E8F2- E8F2- E8F2- E8F2- A01C B10C AN0C D01C D10C DN0C A01B B10B AN0B Temperature influence ±3% FS max. Ambient temperature 0°C to 55°C (32°F to 131°F) Operating: - - 10°C to 60°C (14°F to 140°F)

  • Page 4: Engineering Data

    E8F2 E8F2 Engineering Data J TEMPERATURE VS. LINEAR OUTPUT J TEMPERATURE VS. OPERATING CURRENT FLUCTUATION (TYPICAL) PRESSURE FLUCTUATION (TYPICAL) E8F2-A01C E8F2-A01C Rated pressure Pressure 0 Temperature (°C) Temperature (°C) J LINEARITY (TYPICAL) J PRESSURE VS. LINEAR OUTPUT (TYPICAL) E8F2-A01C E8F2-A01C...

  • Page 5: Display Panel

    E8F2 E8F2 Nomenclature J E8F2 PRESSURE SENSOR (PSI TYPE) OUT1 OUT2 kPa Torr Psi Display Panel 1. Bar indicator (green) Indicates the degree of the measured pressure according to the the set pressure. 2. Numeric and menu display (red) Indicates measurement values and menu setting items.

  • Page 6: Operation

    E8F2 E8F2 Operation J OUTPUT STAGE CIRCUIT Output type NPN output (normally open) NPN output (normally closed) Model E8F2-A01C E8F2-B10C E8F2-AN0C Timing Hysteresis Pressure Pressure chart mode ON point ON point OFF point OFF point Output Output indicator indicator (orange)

  • Page 7: Digital Display

    ON/OFF set value check function Checks the set ON and OFF points. J SETTINGS Digital Display The E8F2 displays alphanumeric characters, such as the The following abbreviations are used for the digital display of the measurement values and menu items, with 7-segment LEDs. Controller.
  • Page 8 J MODES In addition to displaying measurement values, the E8F2 has a variety of functions. These functions are available in four main modes as described below: Measurement Mode, Basic Setting Mode, Pressure Setting Mode, Special Setting Mode. Three functions are available in measurement mode.

  • Page 9: Zero-Reset Function

    Torr Psi 1. Press the SET key for approximately 2 s so that the E8F2 will be set to basic setting mode and unt will be displayed. 2. Set the items unt, m- - a, and ope with Up or Down key.

  • Page 10: Unit Setting

    E8F2 E8F2 Unit Setting Unit setting in E8F2-AN0C OUT1 OUT2 kPa Torr Psi OUT1 OUT2 kPa Torr Psi OUT1 OUT2 kPa Torr Psi OUT1 OUT2 kPa Torr Psi 1. Press the SET key while unt is displayed to display the unit presently set.
  • Page 11 E8F2 E8F2 Output-Type Setting Output-type setting Setting item OUT1 N.O OUT2 N.O OUT1 OUT2 kPa Torr Psi OUT1 OUT2 kPa Torr Psi OUT1 OUT2 kPa Torr Psi OUT1 N.C OUT2 N.C OUT1 OUT2 kPa Torr Psi OUT1 OUT2 kPa Torr Psi...

  • Page 12: Normally Open

    Pressure Setting Mode The E8F2 provides output according to the measured values to control external devices, such as valves and pumps. In order to control the external devices, a reference value can be set so that the output will be ON or OFF if the measured values are above or below the reference value.
  • Page 13 Note: Auto-teaching will be possible if a is selected in the pressure setting method selection in basic setting mode. 1. Press the SET key to set the E8F2 to pressure setting mode and to display OUT1 and t.h1. 2. Press the Up or Down key to select the one-point teaching or two-point teaching method of OUT1 and OUT2.
  • Page 14 2. Check the measurement value and press the Set key to perform and complete teaching. 3. The values are entered Press the SET key for approximately 2 s while t.w is displayed to enter the values and return the E8F2 to measurement mode.

  • Page 15: Special Setting Mode

    OUT1 OUT2 kPa Torr Psi 1. Press the SET key and Up key simultaneously to set the E8F2 to special setting mode and display prt. 2. Set the Up or Down key to select the items prt, hys, wid, dsp, aUe, and bar.
  • Page 16 Note: 1. Hysteresis Mode: No manual hysteresis width settings are enabled in hysteresis mode except for those set by auto-teaching. Window Mode Hysteresis width settings are enabled when the E8F2 in window mode is set to measurement mode. 2. ON- and OFF-point widths in hysteresis mode are used as hysteresis widths, which cannot be changed in window mode.
  • Page 17 4. Press the Up and Down keys simultaneously to display aUe again without selecting the set value. Note: If the DSP item is set to 0.5 and AVE item is set to 32, the E8F2 will measure 32 times, the average value of which will be treated...
  • Page 18 Bar Indicator Range Setting The set value is an indication range per LED between 1 and 20% FS. If the E8F2 is set to AUT, the ideal display range will be automatica set according to the the ON point presently set.

  • Page 19: Energy Saving Mode

    OFF. 2. Provided that the E8F2 is set to window mode, the numeric and menu display will flash together with the bar indicator if the present pressure is below ON point or above the OFF point.
  • Page 20 E8F2 E8F2 ON- and OFF Set Value Check Function ON- and OFF-point Set value Measurement mode Displayed Displayed Displayed Displayed alternately alternately alternately alternately OUT2 ON point OUT2 OFF point OUT1 ON point OUT1 OFF point The ON and OFF points presently set can be checked.
  • Page 21 Two-3.5 (0.14) dia. 27 (1.06) 20 (0.79) 14.5 Four-R1 (R0.04) (0.57) 13.5 (0.53) (0.79) 26.9 * Provided with E8F2 (1.06) Two-3.5 (0.14) dia. (0.18) R7.25 (R0.29) Four-R2.5 (R0.10) R1.6 (R0.06) (0.06) J E89-F4 PANEL-MOUNTING BRACKET (SOLD SEPARATELY) Panel Cutout Dimensions (E89-F4 is available in the following two sizes.)
  • Page 22 • Wrap the tapered 1/8 NPT male screws with sealing tape to • When supplying power to the E8F2, make sure that the po- • prevent any leakage. Tighten the male screws to a torque of larity of the power is correct.
