Sensor connectors, reflectors, mounting brackets, accessories

XS, Y92E, E39

The sensor accessory portfolio provides the products required to

connect, mount or operate the main photoelectric and inductive sen-

sors. The accessories are designed to match the performance levels

of the respective sensors from general applications to the most chal-

lenging enviroments.

• Reflectors for standard applications, special mounting requirements

or special environments

• M8, M12 cable connectors

• Special fiber and photomicrosensor connectors

• Mounting brackets for square and cylindrical sensor shapes

Content

Cable connectors – quick guide and selection table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Mounting accessories for standard photoelectric, inductive and capacitive sensors . . . . . . . . . . 24

Reflectors for retro-reflective photoelectric sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Need help?

Do you have a question about the E39 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Omron E39 Series

Page 1 Reflectors for retro-reflective photoelectric sensors ........
Page 2 Cable connectors – quick guide and selection table Material Order code Extended Portfolio Size Shape Type Features and Specs Cable on Page PVC 2 m XS3F-M8PVC3S2M XS3F-M8PVC3A2M 3 pin (LED General optionally) PUR 2 m XS3F-M8PUR3S2M XS3F-M8PUR3A2M purpose Brass (CuZn)
Page 3 XS3F-M8PUR4S5M XS2F-M12PUR3A2M angled XS2F-M12PUR3A5M 3 wire XS2F-M12PUR3S2M straight XS2F-M12PUR3S5M XS2F-M12PUR4A2M angled XS2F-M12PUR4A5M 4 wire XS2F-M12PUR4S2M straight XS2F-M12PUR4S5M XS2F-M12PUR5A2M angled XS2F-M12PUR5A5M 5 wire XS2F-M12PUR5S2M straight XS2F-M12PUR5S5M Note: M12 2-wire models are available for AC and DC applications. Contact your Omron representative...
Page 4 4 = black 4 = black 5 = n.c. 5 = green / yellow Materials Pin block PBT resin (UL 94V-0) Contacts Brass/ nickel base, 0.4 µm gold plating Fixture Brass/ nickel plated Cover Polyester elastomer (UL 94V-O) O-ring Rubber Dimensions...
Page 5 XS2F M12 Screw-on cable connectors Straight Connectors 6 dia. 14.9 dia. 40.7 5 dia. 5 dia. L-shaped Connectors 6 dia. 5 dia. 5 dia. Wiring Diagram (M8 and M12) Contact No. Brown White Blue Black Cable lead colors...
Page 6 Y92E-S08PVC4S5M-L 4 pin Y92E-S12PVC4A2M-L Angled Y92E-S12PVC4A5M-L Y92E-S12PVC4C2M-L Straight Y92E-S12PVC4S5M-L For different cable length please contact your Omron representative Specifications Rated current M8 3 pin: 60 VDC Rated voltage M8 4 pin: 30 VDC M12 4-wire: 250 VDC Degree of protection IP67 (IEC 60529);...
Page 7 Dimensions Y92E-S08 Y92E-S12 Wiring Diagram (M8 and M12) Contact No. Brown White Blue Black Cable lead colors...
Page 8 XS2F-D422-DA0-R 4 wire XS2F-D422-D80-R Angled 2 wire XS2F-D422-GA0-R Brass (CuZn) 4 wire XS2F-D422-G80-R 2 wire XS2F-A421-DB0-R 4 wire XS2F-A421-D90-R Straight Vibration proof robot 2 wire XS2F-A421-GB0-R cable (srew on) for AC 4 wire XS2F-A421-G90-R usage XS2F-A422-DB0-R 2 wire Angled XS2F-A422-GB0-R...
Page 9 Pin arrangement DC type AC type Socket Materials Pin Block PBT resin/light gray or black PBT resin (UL94V-0), light grey or dark grey Phosphor bronze, nickel base, 0.4-m gold Contacts Brass/nickel base, 0.4-m gold plating plating Fixture Brass/nickel plated Cover...
Page 10 M8 Snap-on cable connectors Straight Connectors 2.15 4 dia. 13. 9 0. 5 1.95 21.1 30.7 Angled Connectors 23.1 19.8 4 dia. 8.2 dia. 2.15 1.95 XS2F-_-R M12 Screw-on cable connectors Straight Connectors 6 dia. 14.9 dia. 40.7 5 dia.
Page 11 Wiring Diagram (M12) Contact Brown Blue (DC) 2-wire model Contact Brown Blue (AC) Contact Brown White Blue 4-wire model Black (DC/AC)
Page 12 XS2F-E422-G80-E Specifications Rated current Rated voltage 125 VDC, 250 VAC Degree of protection IP67 (IEC 60529); IP69k (DIN 40050 part 9) Ambient temperature -25°C to 105°C Pin arrangement M12 4 pin 1 = brown 2 = white 3 = blue 4 = black 5 = n.c.
Page 13 Dimensions 40.7 30±5 5±3 Color: Black –10 Straight knurl mO. 1 TWIST TIE Color: Black 25.3 Straight knurl 30±5 5±3 –10 TWIST TIE Wiring Diagram (M12) Contact No. Brown White Blue Black Cable lead colors...
Page 14 Straight XS5F-D421-G80-A Note: The XS5F connectors can be attached to standard M12 plug connectors (screw-fix) and to XS5 plug connectors (twist & click). For details on the twist & click locking mechanism refer to XS5 data sheet. Specifications Rated current...
Page 15 5 = n.c. 5 = green / yellow Materials Y92E XS2G, XS2C Pin block PBT resin (UL94V-0) Contacts Brass/nickel base, 0.4 µm gold plating CuSn, nickel base, 0.3 µm gold plating Fixture Brass/nickel base Cover PBT resin (UL94V-0) O-ring Rubber...
Page 16 Dimensions Plugs (male) XS2G-D4C@ (Crimping Model, Straight), XS2G-D42@ (Soldering Model, Straight) 5 dia. 45° 14.2 dia. 14.9 dia. 47.1 XS2G-D5S1 (Screw-on model, Straight) 58.7 M12 ´ 1 14 dia. 20 dia. 14.9 dia. XS2G-D42@ (Soldering Model, L-shaped) 5 dia. 35.7 45°...
Page 17 XS2C-D4C@ (Crimping Model, L-shaped) XS2C-D42@ (Soldering Model, L-shaped) 5 dia. 14.9 dia. XS2C-D5S2 (Screw-on model, angled) 35.9 M12 ´ 1 20 dia. 14.9 dia. 39.6 14 dia.
Page 18 8 x M12 inputs + 8 x M12 outputs DRT2-MD16CL-1 NPN types are available on request For details refer to Omron XS5 product information Separate power supply. Models with power supply via DeviceNet cable are available Specifications XW3B/XW3D DRT2 4 A/port (signal lines)
Page 19 E3X-CN21-M1J 0.3M Slave connectors can be used to reduce wiring effort. The setup requires 1 master amplifier with the slave amplifiers directly mounted attached. The power supply is then provided by the master amplifier via the clipped on slave connectors. For 4-wire masters use 2-wire slaves and for 3-wire masters 1-wire slaves.
Page 20 Master connectors E3X-CN21/E3X-CN11 2,000 10.7 4 dia. 14.4 2 2 15.1 * E3X-CN21: 4-dia. vinyl-insulated round cable with 4 conductors (Conductor cross section: 0.2 mm , Insulator diameter: 1.1 mm) Only E3X-CN21 Slave connectors E3X-CN22/E3X-CN12 2,000 10.7 4 dia. 14.4 2...
Page 21 (3 m are available on request) Pin arrangement EE-1001, EE-1010 EE-1016 EE-1017 Brown Brown Brown Pink output 2 White Black Black – Blue White – Blue output 1 Black – Blue Note: For the connector EE-1001-1 the pins 1(+) and 2 (L) are short circuited...
Page 22 ±5 1,000 ±5 ±5 Connector with Cable: EE-1017 Vinyl insulated round cord: 4 dia., 4 cores, (Cross section area of conductor: 0.2 mm / insulator: 1.1 mm dia.) Connector with Robot Cable: EE-1017-R Robot instrumentation cord: 4 dia., 4 cores, (Cross section area of conductor: 0.2 mm...
Page 23 Connectors (M12) Used for branching and for XS3R Y-Joint Plug/Socket Connectors daisy-chain connections. (M8) Y-Joints Connector plugs Dust covers XS2Z (M12) Used to protect unused XS3Z (M8) connector ports Connector covers Note: For details on these products, contact your Omron representative...
Page 24 Mounting accessories for standard photoelectric, inductive and capacitive sensors E39, Y92E Mounting brackets and covers For cylindrical shapes Product Shape Type Housing material Features Applicable sensors Order code group Y92E-B8 - cost efficient mounting -E3F2 bracket Y92E-B12 general purpose -...
Page 25 Product Shape Type Housing material Features Applicable sensors Order code group Y92E-E8 - for M8, M12, M18, M30 general purpose Y92E-E12 sensor head polyarylate - for shielded and Y92E-E18 protection unshielded Y92E-E30 -E2A - increased protection in Y92E-E12-2 weld fields...
Page 26 Order code Sensors back wall mounting E39-L119 up/down position E3T-F adjustment side wall mounting E39-L120 General purpose Stainless steel back wall mounting E39-L132 mounting (SUS 304) E3G-R side and back wall inclination angle E39-L131 mounting adjustment -E39-L139 surface mounting E3G-L -E39-L140...
Page 27 Applicable Shape Type Housing material Features Mounting type Order code Sensors E3G, E3Z E39-EL4 General purpose surface, side and 3D rotation E39-EL5 backwall mounting mounting Stainless steel (SUS 304) E3T, E3Z, E3C E39-EL6 inclination angle protective side wall Side protection...
Page 28 E39-L144 horizontal angle protective surface adjustment mounting -E3Z E39-L98 - 360° horizontal Stainless steel rotation -E39-L150 side and back wall (SUS 304) mounting - max telescope -E39-L151 length -E3Z -E39-R3 side wall, back wall E39-L93FH 3D rotation around and surface moun-...
Page 29 Type Features Mounting type Order code Sensors E3Z-T E39-S65 Precision detec- - slit width from dia 0.5 mm for min ob- tion slit cover ject size detection of dia 0.2 mm -E39-S63 snap on E3T-@T -E39-S64 10.8 polarizing filter for close mounting...
Page 30 Dimensions E39-L43 E39-L44 16.2 23.2 R3.5 Four, 3.2 dia. 25.4 3.2 dia. 20° 20° 3.4 15 31.2 E39-L87 E39-L93FH 26.3 25.4 41 20.9 15° 15° 12.4 12 dia. 25.4 75.6 43.7 Two, 6.6 dia. Model 22.5 (typical)
Page 31 Two, 6.6 dia. Model (typical) 12 dia. Model Note: The E39-L93XY consists of only the (typical) one joint holder (A) and pipe (B), and the two hexagonal bolts and nuts. It cannot be mounted to the Sensor alone. E39-L96 E39-L98 (Vertical) 30°...
Page 32 R1.6 10° (Two, R1.2) R1.5 max. E39-L117 E39-L119 Nut Plate (Four, R2) 90° 10.5 Three, 15 20.5 Four, M2 Tap processing max. 90° (Two, R2) (Two, R1.7) Two, R2 11.2 11.5 (23) 15 Two, 2.2 (Two, R1.7) (Two, R1.1) (11.2)
Page 33 E39-L132 E39-L142 ±1° 90° 15.8 Four, 3.4-dia. holes 23.5 23.5 11.5 11.5 Two, R3.2 Two, R2.2 25.4 ±0.1 4.5 15.3 14° 4.2 dia. Two, R3.2 15° E39-L144 E39-L150 (Vertical) E39-L151 (Vertical) Two, R17 Two, 50° Two, 3.5 Polybutylene Four, R1.6 terephthalate 20 25.4 35...

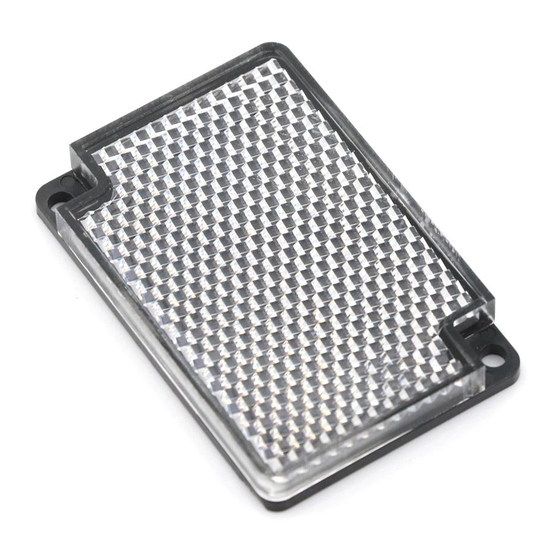

Page 34 Side screw mounting M.S.R or surface selfadhe- 41.8x22.5x11 E39-R3 Acrylic Retro-reflective photoelec- sive surface tric sensors – with M.S.R. Small size 23x13.7x4.9 E39-R4 Surface screw 100x100x9 E39-R8 mounting Large size 84.5x84.5x8.7 E39-R40 Mirror Surface Rejection (MSR) is realized by using polarization filters...
Page 35 43x30x5 E39-R16 mounting environment sensors Borosilicat resistance Surface screw mount- Heat 450°C heat resistance Borosilicat 95x51x8 E39-R47 resistant Suitable for vacuum environment Non-fogging Anti-fogging coating 40x60x7.5 E39-R1K Acrylic reflector surface Mirror Surface Rejection (MSR) is realized by using polarization filters...
Page 36 E39-RS50 50 mm x 22.8 m 22.8 m 195x22 E39-RS4 High Recommended for fine Self adhesive precision beam and laser sensors tape Pre cut (E3Z-LR, E3C, E3X) reflectors 108x46 E39-RS5 Mirror Surface Rejection (MSR) is realized by using polarization filters...
Page 37 10.1 bracket: t 0.5 Material: Stainless steel Mounting plate: stainless steel (SUS301) (SUS304) 10˚ Reflective surface: acrylic Note: The reflective plate and mounting plate (1) come as a set. E39-RP1 E39-R12/-R14 E39-R13 24 17.2 45 37 72 63.6 Reflective surface...
Page 38 Cat. No. E26E-EN2-04 In the interest of product improvement, specifications are subject to change without notice. OMRON EUROPE B.V. Wegalaan 67-69, NL-2132 JD, Hoofddorp, The Netherlands Phone: +31 23 568 13 00 Fax: +31 23 568 13 88 www.eu.omron.com...
