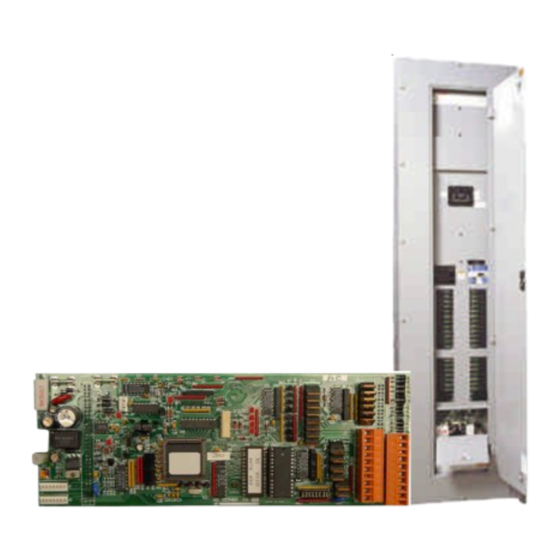

July 2003 Pow-R-Command (PRC ) 100 - Universal System Controller & Enclosures Technical Data Table of Contents: General Description Pow-R-Command 100 System Applications for Pow-R-Command 100 System General Description of Assembly Types Internal Controller-Universal System Controller USC Inputs & Outputs USC Input &... -
Page 2: General Description Of Assembly Types
Technical Data PRC100 - Universal System Controller Page 2 Effective: July 2003 & Enclosures General Pow-R-Command 100 System The Pow-R-Command 100 system is a complete network of devices, which allow a facility’s electrical use to be efficiently managed. With the Pow-R-Command 100, individual loads can be switched through a network of individual panels, which are influenced by Building Automation Systems,... -
Page 3: Usc Inputs & Outputs
Technical Data PRC100 - Universal System Controller Page 3 Effective: July 2003 & Enclosures Common Universal Input 8 Analog Output 1 Universal Input 7 Analog Output 2 Common Analog Output 3 Universal Input 6 +15V dc Source Universal Input 5 Digital Input 4 Universal Input 4 Digital Input 3... -
Page 4: On Board Indicator Led's
Smart Breakers are a uniquely designed BABR/GHBS or BABRS/GHQRS type Smart can extend up to 4,000-feet from the Network device offered by Eaton’s Cutler-Hammer. Breakers. The distinction is labeled on the Access Devices to the furthest controller Smart Breakers combine the thermo board by the prongs. - Page 5 Technical Data PRC100 - Universal System Controller Page 5 Effective: July 2003 & Enclosures USC Wiring Examples Universal System Controller (USC) Figures 4 & 5 show typical wiring of inputs and outputs of the USC. Figure 4 shows the wiring of typical devices such as photo light Wall Switch Universal Input 8 sensors, wall switches, and occupancy...
- Page 6 Technical Data PRC100 - Universal System Controller & Enclosures Page 6 Effective: July 2003 Networking Pow-R-Command 100 Nodes Figure 6 shows a typical Pow-R-Command 100 network. The network begins at the Pow-R-Command 100 Network Access Device. The Pow-R-Command 100 Network Access Device is used to interface between the Pow-R-Command 100 system PC workstation or Ethernet network.
-
Page 7: Pow-R-Command 100 Panelboard
Rail Interface Board devices can be used and intermingled in the standard Eaton’s Cutler-Hammer Pow-R-Line layout of the panel. GHBS & GHQRS are 1- 3a panelboard with the additional control The Rail Interface Board is a bridge between inch bolt-on Smart Breakers. - Page 8 Technical Data PRC100 - Universal System Controller Page 8 Effective: July 2003 & Enclosures Table 1: Pow-R-Command 100 Panelboard Sizing Sizing & Layout Instructions Panel Layout "X" Spaces - Poles Breaker Type 1 Select PRC100 Smart Chassis from Table 1 Note: Smart 1-Pole 1-Pole Chassis is always located at the bottom of the panel-...
-
Page 9: Pow-R-Command 100 Relay Cabinets
Pow-R- Switch Override Controller Command 100 Relay Cabinet. The first two As standard, Eaton’s Cutler-Hammer uses sets of ports are used to connect the Relay Touchplate, or comparable, type relays. The Switch Override Controller is a Pow-R-... -
Page 10: Pow-R-Command 100 Control Cabinets
Technical Data PRC100 - Universal System Controller Page 10 Effective: July 2003 & Enclosures Unitary Modem Interface Standard Control Cabinet Features The Unitary Modem Interface is a Pow-R- The Pow-R-Command 100 Control Cabinet is Command 100 Network Access Device that sold complete with all of the standard can be mounted to the Relay Termination components of the Pow-R-Command 100... -
Page 11: Pow-R-Command 100 Column Type Panels
Technical Data PRC100 - Universal System Controller Page 11 Effective: July 2003 & Enclosures Breaker Termination Board Electrical Features Like the Breaker Termination Boards found in • 240V ac & 480Y/277V ac the Pow-R-Command 100 Panelboard, the • 3-Phase 4-Wire, 1-Phase 3-Wire, 1-Phase Breaker Termination board in the column panel acts is a control bus. - Page 12 Technical Data PRC100 - Universal System Controller Page 12 Effective: July 2003 & Enclosures Sizing Information for 240V ac Pow-R- Table 3: Pow-R-Command 100 240V ac 100A Sizing Information Command 100 Column Type Panel M ain Breaker T ypes Sub-Feed M aximu Number Box, D imensions Inches T rim...
- Page 13 Technical Data PRC100 - Universal System Controller Page 13 Effective: July 2003 & Enclosures Sizing Information for 480Y/277V ac Pow- Table 3: Pow-R-Command 100 480Y/277V ac 100A Sizing Information R-Command 100 Column Type Panel M ain Breaker T ypes Sub-Feed M aximu Number Box, D imensions Inches T rim...
-
Page 14: Pow-R-Command 100 In Integrated Facility System
Pow-R-Command 100 In Integrated Facility Systems Switchboards An Integrated Facility Systems (IFS) Switchboard is an innovative design created by Eaton’s Cutler-Hammer designed to save space, reduce construction cycle time, and reduce labor and material requirements. IFS Switchboards take loose panelboards,... -
Page 15: Pow-R-Command 100 Technical Resource Library
PRC100-Network Signal Repeaters TD01412026E For the most current list of documents on the Pow-R-Command 100 system, and available downloads, please visit www.cutler-hammer.com. Eaton Corporation © 2003 Eaton Corporation All Rights Reserved Cutler-Hammer business unit 1000 Cherrington Parkway Printed In USA Moon Township, PA 15108 Form No.
