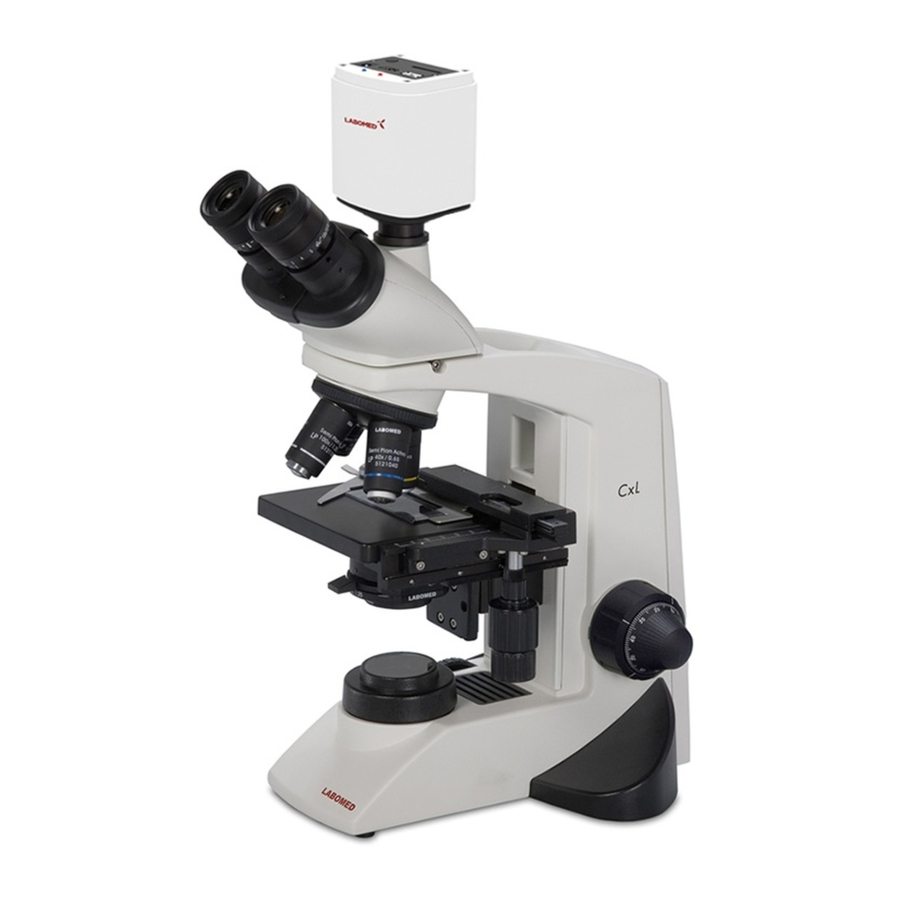

- Page 1 Vision CxL Dark Field Kit User Manual To ensure proper use of this instrument as well as to avoid injury while operating instrument, www.laboamerica.com understanding this manual completely before use is highly recommended.
- Page 2 INTRODUCTION Darkfield microscopy is a specialized illumination technique that capitalizes on oblique illumination to enhance contrast in specimen that are not imaged under normal brightfield illumination conditions. After the direct light has been blocked by an opaque stop in the substage condenser, light passing through the specimen from oblique angles at all azimuths is diffracted, refracted and reflected into the microscope objective to form a bright image of the specimen superimposed onto a dark background.
- Page 3 INSTALLATION Remove brightfield condenser from substage assembly and gently push in darkfield condenser in its place as shown in Fig.1 Fig. 1 Secure the darkfield condenser by tightening the thumbscrew provided as shown in Fig. 2 Fig. 2 Remove the 100X objective from nosepiece adapter and attach 100X (SL, Oil) achro objective (Iris) as shown in Fig.3 Fig.
- Page 4 Tel.: 877.877.7274 - Fax: 516.801.2046 www.microscopeinternational.com - info@nyscopes.com LABOMED and CxL are registered trademarks of Labo America, Inc. With a policy of continuous development, Labo America, Inc. reserves the right to change design and specifications without prior notice. ISO 9001 : 2008 ©...
