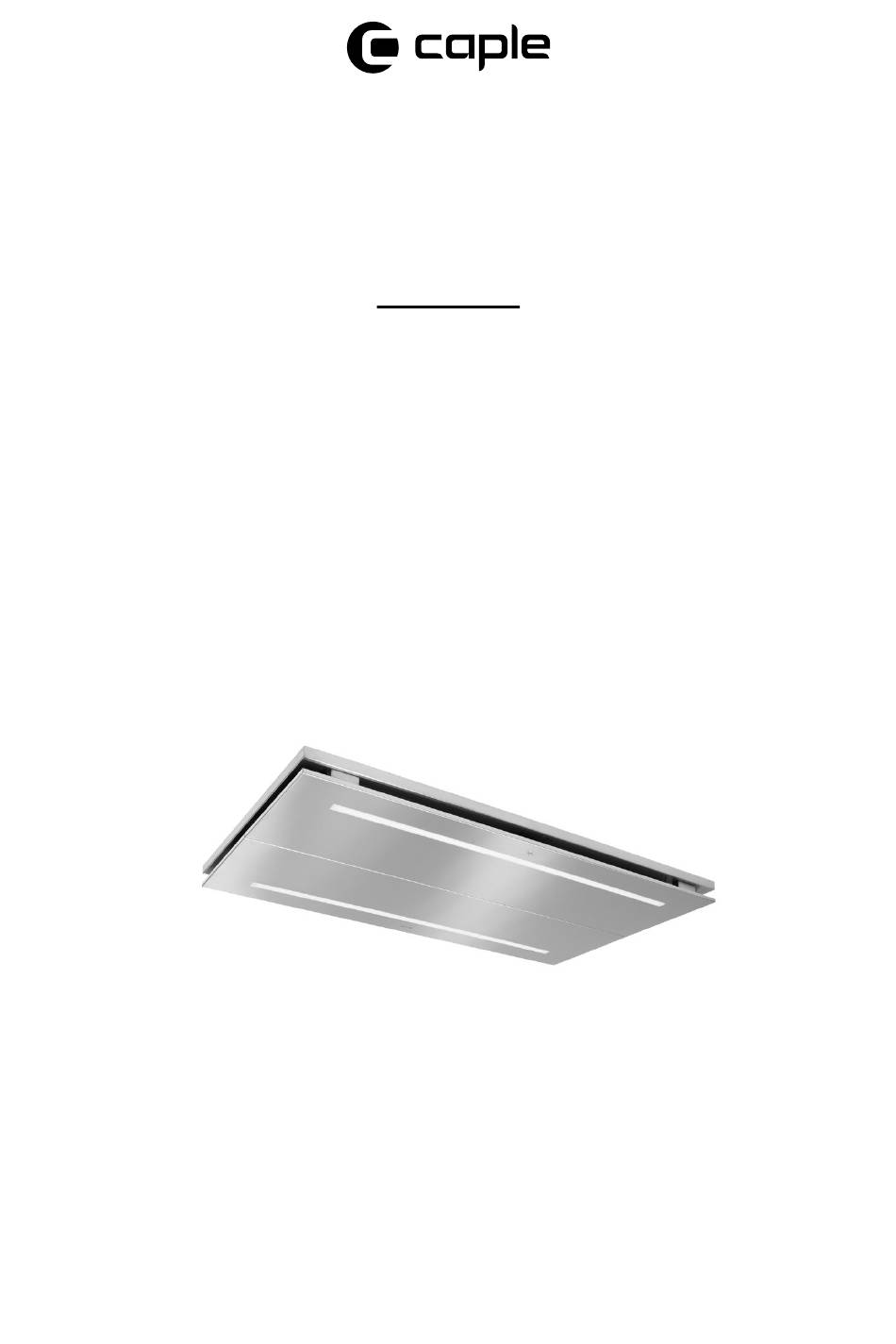

- Page 1 C e i l i n g H o o d I n s t r u c t i o n M a n u a l CE11 2 2 SS/ CE1 1 2 2W H Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
- Page 2 C O N T E N T S Warnings Environmental Protection Opening the Panel Installation Remote Control Timing Cleaning and Maintenance Caple Contact Details Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference...
- Page 3 (eg. centralized heating, radiators, water heaters, etc.). To evacuate the air outlet, please comply with the pertaining rules given by competent authorities. Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference...
- Page 4 - Before carrying out any cleaning or maintaining operations, the appliance needs to be removed from the electric grid. Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference...
- Page 5 - It must only be used as a domestic appliance to extract vapours and remove odours from cooking. Any other usage is not supported by the manufacturer and could be dangerous. Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference...
- Page 6 - The cooker hood can get very hot during cooking due to heat rising from the hob. - Do not touch the housing or the grease filters until the cooker hood has cooled down. Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference...
- Page 7 › Staff kitchen areas in shops, offices and other working environments. › Farm Houses. › By clients in hotels, motels and other residential type environments. › Bed and breakfast type environments. Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference...
- Page 8 For more detailed information about treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service or the retailer where you purchased the product. Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference...
- Page 9 Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges.
- Page 10 Ducting is not supplied with the product, this is to be supplied by the installer depending on the installation requirements. For more information on venting, please see our ‘Extraction & Ventilation guide’ available at www.caple.co.uk 10 Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference...
-
Page 11: Freestanding Installation
Fig.17. Once done, refit the grease filters, the carbon filters FIG.3 and close the glass/steel panels. Fig.17. CE1122SS/WH_Instruction manual.indd 9 22/03/2018 10:53 Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference... - Page 12 (Fig.10). upper side using the four screws previously removed (Fig.9). upper side using the four screws previously removed (Fig.10). Fig.7. Fig.10. Fig.9. FIG.7 FIG.8 FIG.9 Fig.7. Fig.10. Fig.9. 12 Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference...
- Page 13 Connect the internal motor or the external motor’s cable to the terminal board found inside the plastic box for the wiring. The cables are colour coded, make sure the cables are resprected when performing the electrical connection. Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference...
- Page 14 D U C T E D V E R S I O N Make the holes using a 8mm drill bit and place the metric plugs provided in the holes. FIG.11 FIG.12 14 Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference...
- Page 15 - Open the hole in the middle of the upper side hood (Fig.7) or in the long side (Fig.12). - Open the hole in the middle of the upper side hood (Fig.7) or in the long side (Fig.12). Fig.12. Fig.7. Fig.12. Fig.7. FIG.16 FIG.17 Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference...
- Page 16 For the best perfomance, the installation allows. For the best performance, 200mm is recommended if the installation allows. 200mm is recommended if the installation allows. Fig.8. Fig.8. FIG.21 16 Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference...
- Page 17 The use of carbon filters is not necessary when the hood is being ducted to the outside. use of carbon filters is not necessary when the hood is being ducted to the outside. Fig.16. FIG.23 .16. Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference...
- Page 18 R E M O T E C O N T R O L When using for the first time, press and hold the light button for 5 seconds. Remote control used for the remote operation of Caple hoods: T E C H N I C A L DATA Alkaline battery powered: 12V mod.
- Page 19 Press the main power-off button on the hood and then restore power to the electronic control unit. Within the next 15 seconds, press the Light Button to synchronise the central unit with the code. Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference...
- Page 20 The products are endowed with an electronic device which automatically switches the product off after 4 hours working from the last operation. 20 Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference...
- Page 21 › If the appliance is working at 3rd speed, it is automatically switched to 2nd speed, after 7 minutes operation. Operation speeds can also be changed during operation. The energy consumption of the appliance in standby mode is lower than 0.5W. Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference...
- Page 22 D I M E N S I O N S D I M E N S I O N S M IN IMUM BUILD IN DEP T H 2 15 M M 22 Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference...
- Page 23 Instruction manual CE1122SS/CE1122WH Please keep this instruction manual for future reference...
- Page 24 Caple Service Fourth Way Avonmouth T: 0117 938 1900 Bristol E: service@caple.co.uk BS11 8DW www.caple.co.uk...
