Summary of Contents for Caple CE920WH

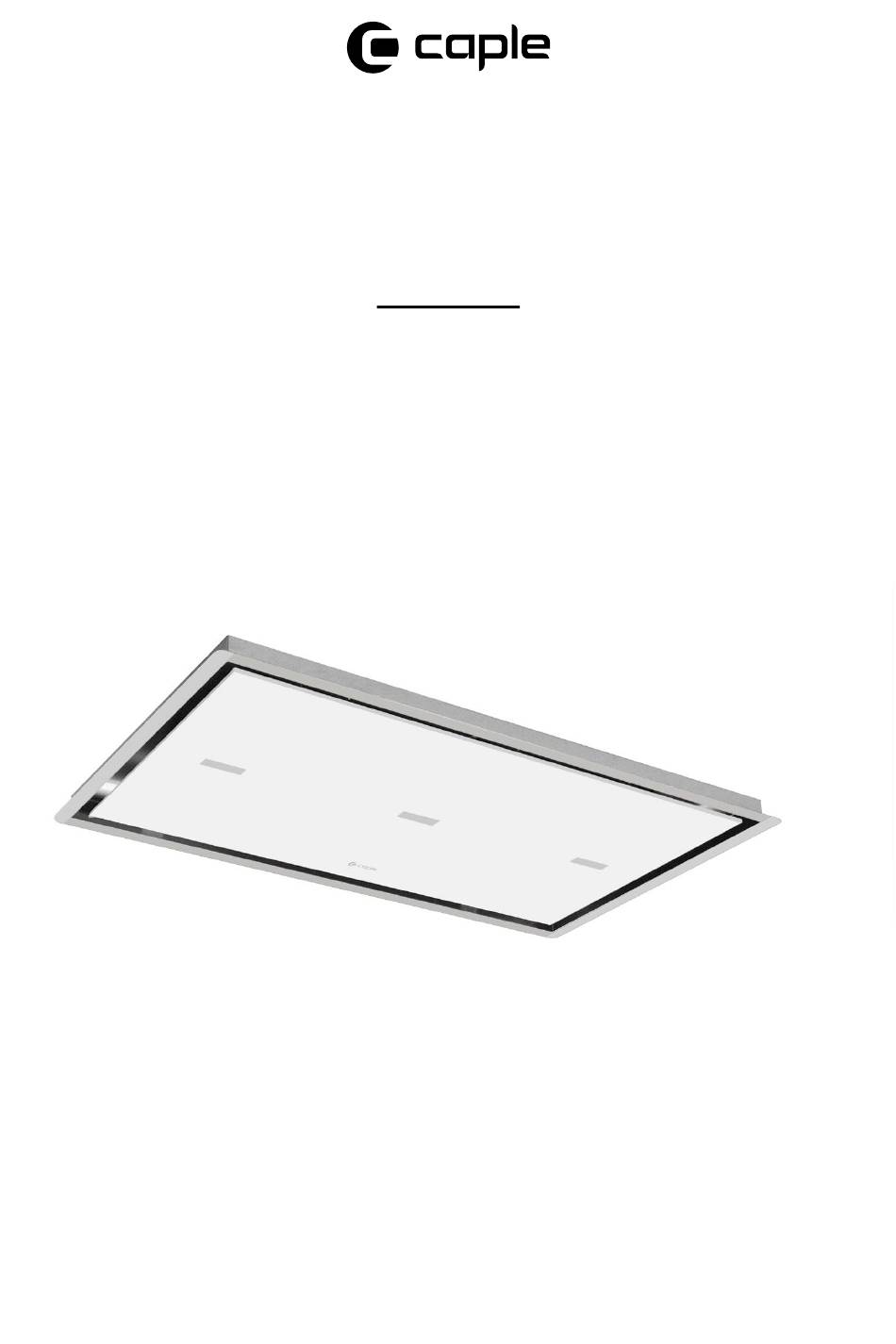

- Page 1 C e i l i n g H o o d I n s t r u c t i o n M a n u a l CE9 20 WH Contact Caple on 0117 938 7420 for spare parts or www.caple.co.uk...
- Page 2 C O N T E N T S Warnings Environmental Protection Opening The Panel Installation Remote Control Timing Cleaning and Maintenance Caple Contact Details Instruction manual CE920WH Please keep this instruction manual for future reference...
- Page 3 (eg. centralized heating, radiators, water heaters, etc.). To evacuate the air outlet, please comply with the pertaining rules given by competent authorities. Instruction manual CE920WH Please keep this instruction manual for future reference...
- Page 4 - Before carrying out any cleaning or maintaining operations, the appliance needs to be removed from the electric grid. Instruction manual CE920WH Please keep this instruction manual for future reference...
- Page 5 - It must only be used as a domestic appliance to extract vapours and remove odours from cooking. Any other usage is not supported by the manufacturer and could be dangerous. Instruction manual CE920WH Please keep this instruction manual for future reference...
- Page 6 - The cooker hood can get very hot during cooking due to heat rising from the hob. - Do not touch the housing or the grease filters until the cooker hood has cooled down. Instruction manual CE920WH Please keep this instruction manual for future reference...
- Page 7 › Staff kitchen areas in shops, offices and other working environments. › Farm Houses. › By clients in hotels, motels and other residential type environments. › Bed and breakfast type environments. Instruction manual CE920WH Please keep this instruction manual for future reference...
- Page 8 Registration can also be completed online by visiting www.caple.co.uk. Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges.
- Page 9 Radio Equipment Directive (RED) 2014/53/EU. This Declaration is issued under the sole responsibility of the manufacturer. Hereby, Caple declares that the radio equipment included in the product is in compliance with the RED directive 2014/53/EU. The full text of the EU Declaration of Conformity is available on our website www.caple.co.uk.
- Page 10 O P E N I N G T H E PA N E L This appliance must be installed with a suitable external motor manufactured by Caple. N OT E : The motor does not come included and must be ordered separately.
- Page 11 .3. The ceiling brackets are telescopic, so their height can be adjusted at 80mm between the ling and the hood. FIG.6 FIG.3 Instruction manual CE920WH Please keep this instruction manual for future reference...
- Page 12 > Bring the hood close to the brackets previously fixed and then connect the appliance to the supply mains. Secure the hood to the ceiling, by using the screws supplied, as shown in Fig.5. in Fig.5. Fig.18. Fig.4. FIG.4 FIG.5 12 Instruction manual CE920WH Please keep this instruction manual for future reference...
- Page 13 R E M O T E C O N T R O L Remote control used for the remote operation of Caple island hoods: T E C H N I C A L DATA Alkaline battery powered: 12V mod. 27A Operating frequency: 433.92 Mhz...
- Page 14 Press the main power-off button on the hood and then restore power to the electronic control unit. Within the next 15 seconds, press the Light Button to synchronise the central unit with the code. 14 Instruction manual CE920WH Please keep this instruction manual for future reference...
- Page 15 2 seconds. When LED’s light on, press buttons (within 5 seconds). LED’s flashing 6 times indicate the procedure is completed. WA R N I N G : This operation permanently deletes the preset codes. Instruction manual CE920WH Please keep this instruction manual for future reference...
- Page 16 The products are endowed with an electronic device which automatically switches the product off after 4 hours working from the last operation. 16 Instruction manual CE920WH Please keep this instruction manual for future reference...
- Page 17 › If the appliance is working at 3rd speed, it is automatically switched to 2nd speed, after 7 minutes operation. Operation speeds can also be changed during operation. The energy consumption of the appliance in standby mode is lower than 0.5W. Instruction manual CE920WH Please keep this instruction manual for future reference...
- Page 18 For steel appliances specialised detergents are recommended (please follow the instructions indicated on the product itself to obtain the desired results). › The LED lights must be replaced only by a qualified person. 18 Instruction manual CE920WH Please keep this instruction manual for future reference...
- Page 19 Instruction manual CE920WH Please keep this instruction manual for future reference...
- Page 20 Caple Service Fourth Way Avonmouth T: 0117 938 1900 Bristol E: service@caple.co.uk BS11 8DW www.caple.co.uk...
