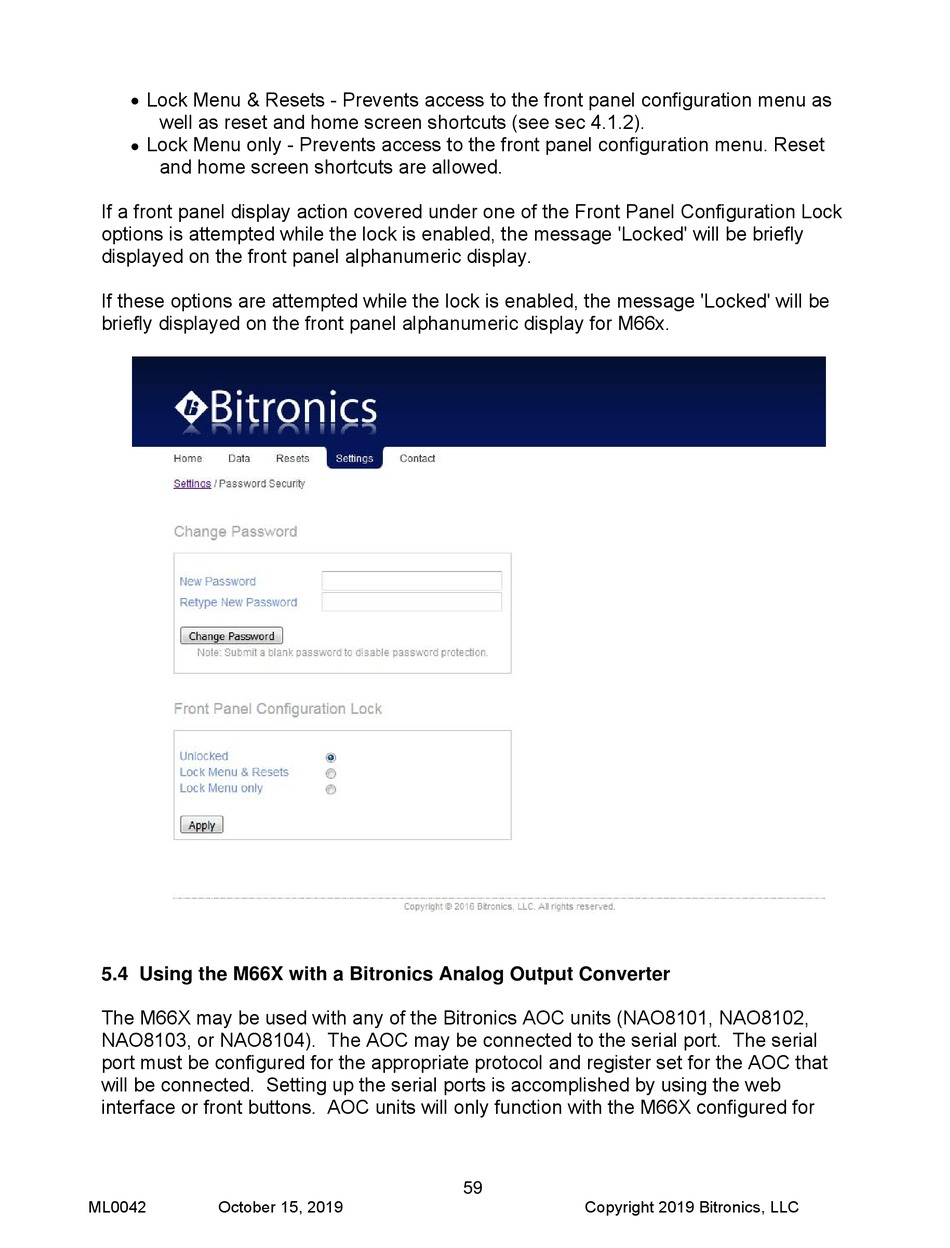

Using The M66X With A Bitronics Analog Output Converter - Novatech Bitronics M660 User Manual

 Lock Menu & Resets - Prevents access to the front panel configuration menu as
well as reset and home screen shortcuts (see sec 4.1.2).
 Lock Menu only - Prevents access to the front panel configuration menu. Reset
and home screen shortcuts are allowed.
If a front panel display action covered under one of the Front Panel Configuration Lock
options is attempted while the lock is enabled, the message 'Locked' will be briefly
displayed on the front panel alphanumeric display.
If these options are attempted while the lock is enabled, the message 'Locked' will be
briefly displayed on the front panel alphanumeric display for M66x.

5.4 Using the M66X with a Bitronics Analog Output Converter

The M66X may be used with any of the Bitronics AOC units (NAO8101, NAO8102,
NAO8103, or NAO8104). The AOC may be connected to the serial port. The serial
port must be configured for the appropriate protocol and register set for the AOC that
will be connected. Setting up the serial ports is accomplished by using the web
interface or front buttons. AOC units will only function with the M66X configured for
