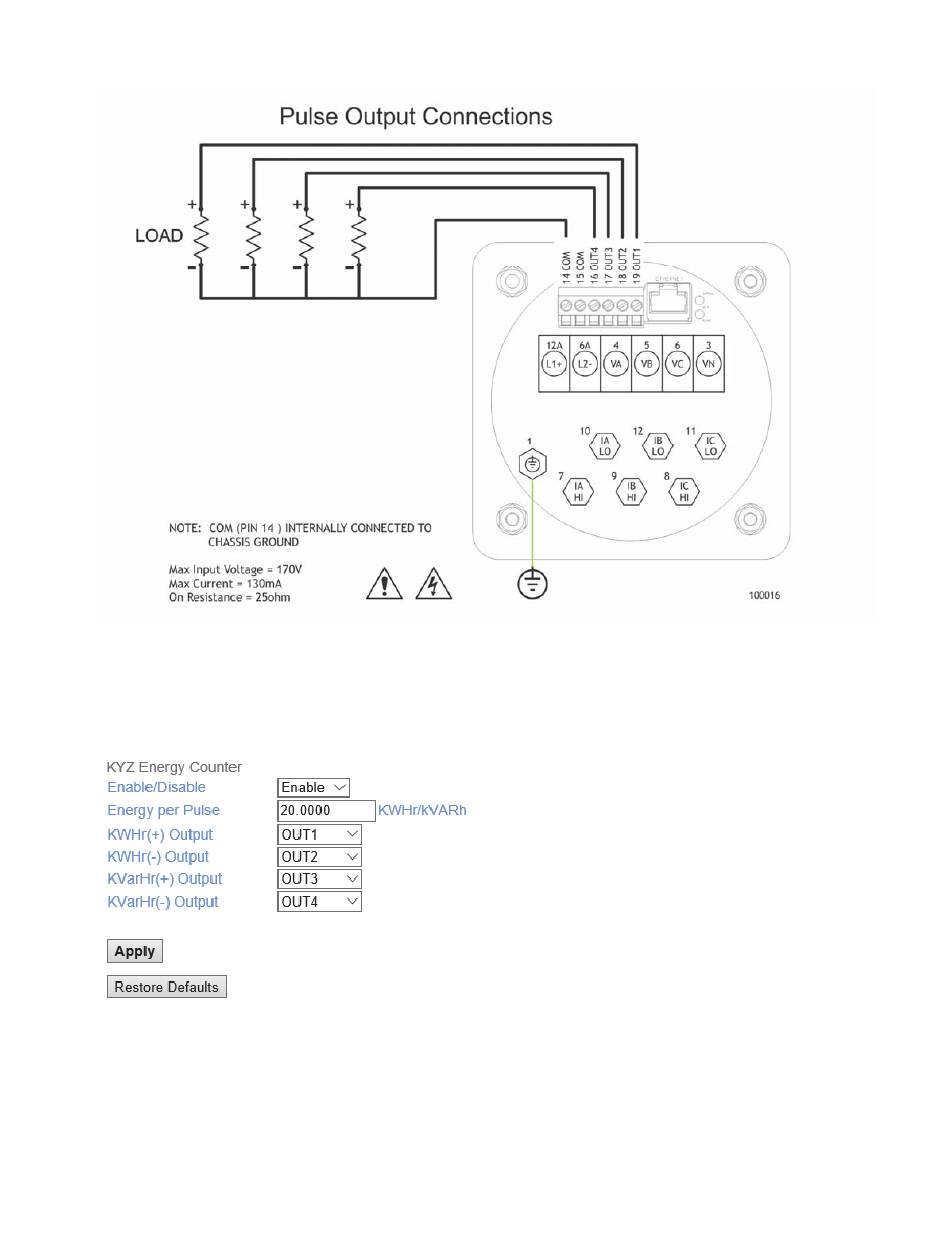

Figure 7 – Pulse Output Connections
KYZ configuration in the 60 Series is achieved by navigating to the Settings / Input
screen of the instrument's webserver.
When the 4 digital KYZ option is ordered, the positive and negative KWHr and KVarHr
can be assigned to any of the four outputs in whatever order is desired.
Explanation of KYZ Parameters
41
ML0042
October 15, 2019
Copyright 2019 Bitronics, LLC
