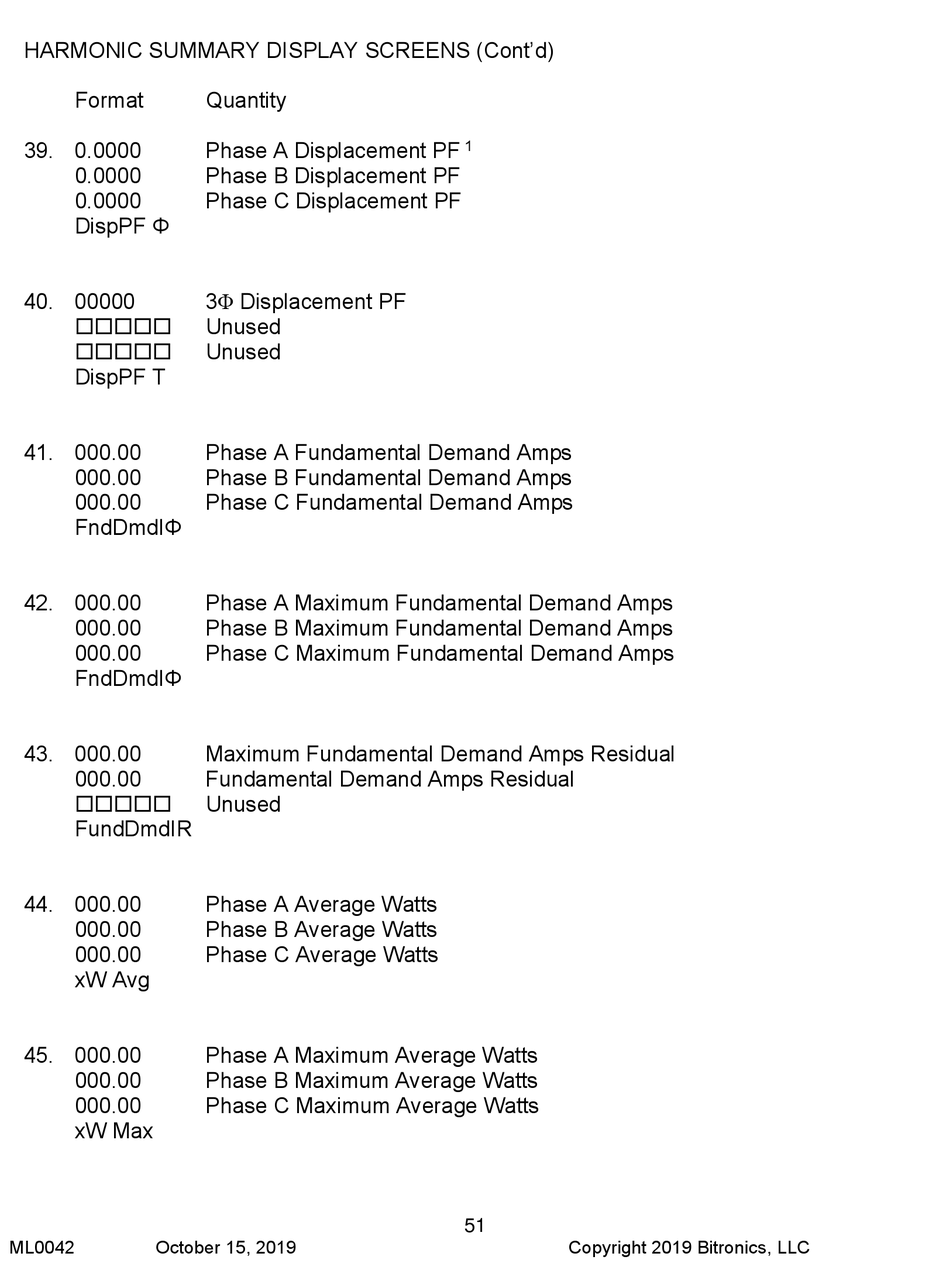

HARMONIC SUMMARY DISPLAY SCREENS (Cont'd)
Format
39. 0.0000
0.0000
0.0000
DispPF Φ
40. 00000


DispPF T
41. 000.00
000.00
000.00
FndDmdIΦ
42. 000.00
000.00
000.00
FndDmdIΦ
43. 000.00
000.00

FundDmdIR
44. 000.00
000.00
000.00
xW Avg
45. 000.00
000.00
000.00
xW Max
ML0042 October 15, 2019
Quantity
Phase A Displacement PF
Phase B Displacement PF
Phase C Displacement PF
3Φ Displacement PF
Unused
Unused
Phase A Fundamental Demand Amps
Phase B Fundamental Demand Amps
Phase C Fundamental Demand Amps
Phase A Maximum Fundamental Demand Amps
Phase B Maximum Fundamental Demand Amps
Phase C Maximum Fundamental Demand Amps
Maximum Fundamental Demand Amps Residual
Fundamental Demand Amps Residual
Unused
Phase A Average Watts
Phase B Average Watts
Phase C Average Watts
Phase A Maximum Average Watts
Phase B Maximum Average Watts
Phase C Maximum Average Watts
1
