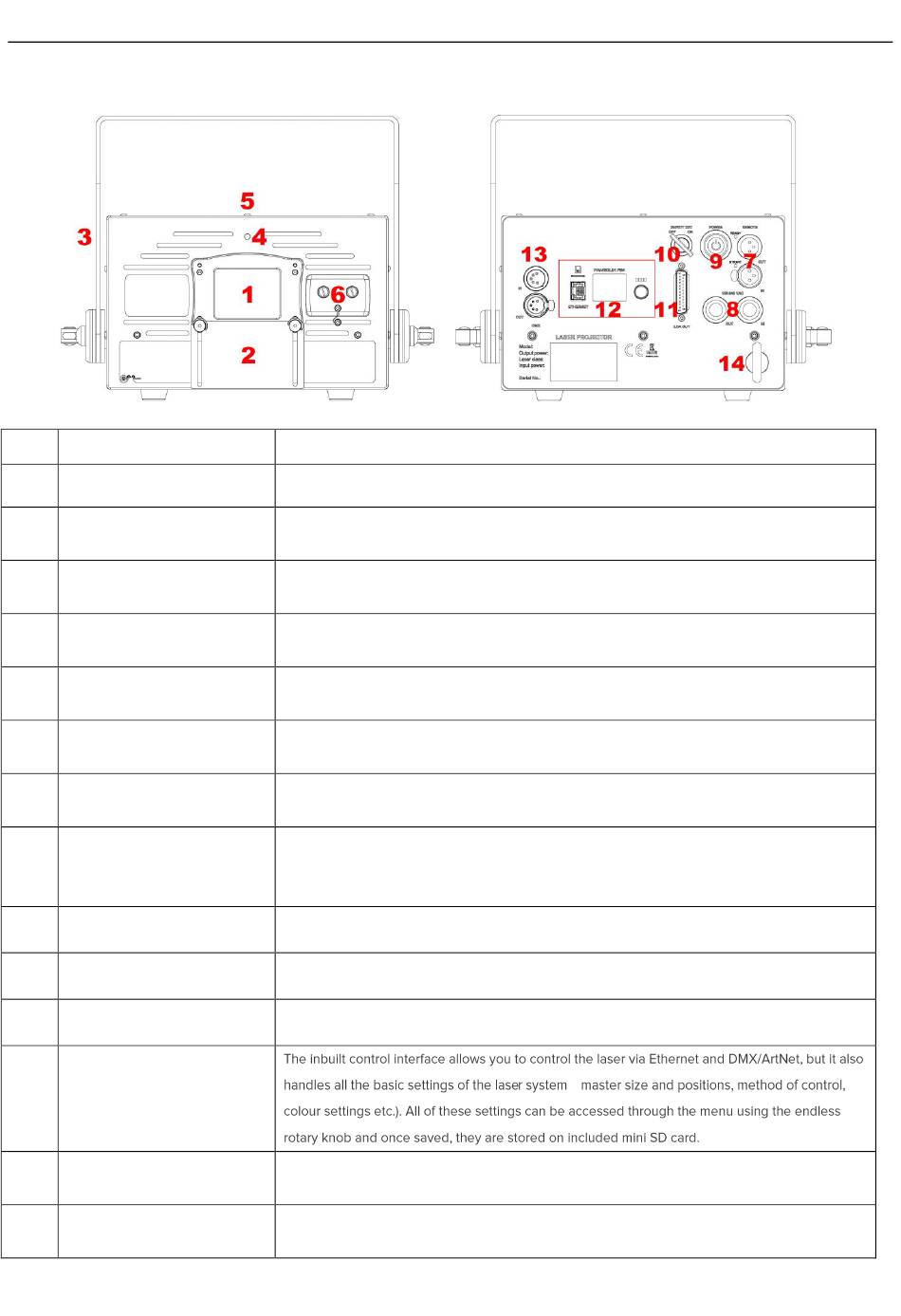

Front & Rear panel view (Elite 5 PRO)
NO. Name
1
Laser aperture
2
Aperture masking plate
3
Attachment bracket
4
Laser emission
5
Cover bolts
RGB colour alignment
6
mechanism
7
3-Pin Interlock
8
Power in & out
9
Power ON/OFF
10
Key switch
11
DB25 OUT
FB4 laser control
12
interface
13
DMX Input/Through
14
Safety eyelet
Laser output, do not look directly into this aperture
Can be moved up and down when two locking bolts are loosened. The masking plate
can also be attached to the top of the aperture.
The attachment bracket spins 360 degrees around the laser body whilst it
can be locked in desired position by two small locking handles on sides.
When this indicator is lit up the laser system is ready to emit the laser
radiation as soon as it receives instructions from control software.
To access the optical compartment of the laser system undo 18 button hex bolts and
carefully remove the cover.
To access the colour alignment mechanism undo 2 silver bolts and remove the cover.
Laser output is available only when the interlock is connected.
It could be used to connect a laser emergency switch.
AC100~240V power input and output sockets. With output feature you can connect the
device to one another using the input and output sockets. They must be the same
fixtures. DO NOT mix fixtures.
Power on/off
Turn the key switch ON to allow laser output.
DB25 interface out for ILDA mode
Use these ports to connect DMX control signal or to daisy chain the DMX signal
between multiple laser display systems.
Use this together with appropriate safety wire to secure the system against unexpected
fall.
