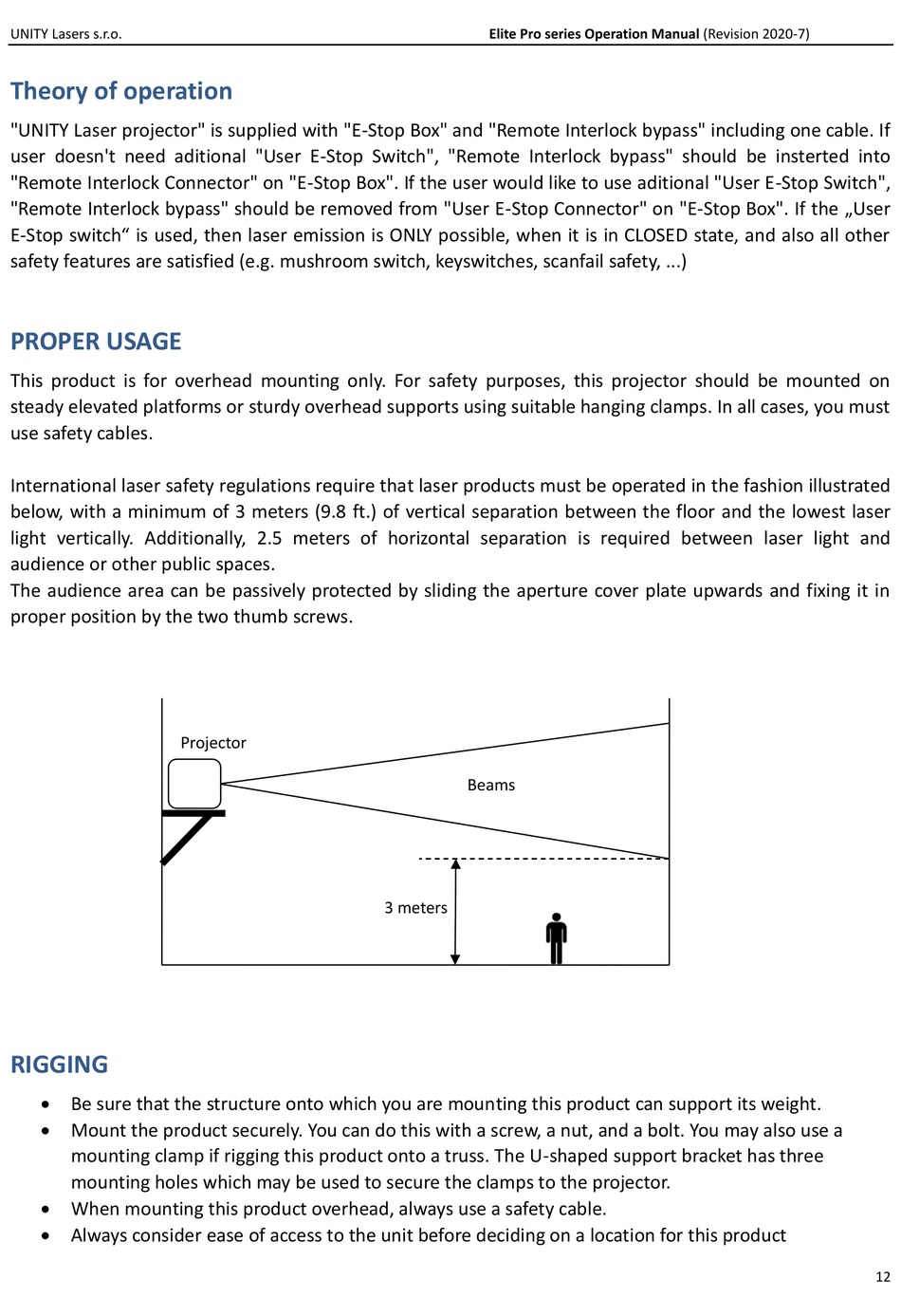

Theory of operation

"UNITY Laser projector" is supplied with "E-Stop Box" and "Remote Interlock bypass" including one cable. If
user doesn't need aditional "User E-Stop Switch", "Remote Interlock bypass" should be insterted into
"Remote Interlock Connector" on "E-Stop Box". If the user would like to use aditional "User E-Stop Switch",
"Remote Interlock bypass" should be removed from "User E-Stop Connector" on "E-Stop Box". If the „User
E-Stop switch" is used, then laser emission is ONLY possible, when it is in CLOSED state, and also all other
safety features are satisfied (e.g. mushroom switch, keyswitches, scanfail safety, ...)

PROPER USAGE

This product is for overhead mounting only. For safety purposes, this projector should be mounted on
steady elevated platforms or sturdy overhead supports using suitable hanging clamps. In all cases, you must
use safety cables.
International laser safety regulations require that laser products must be operated in the fashion illustrated
below, with a minimum of 3 meters (9.8 ft.) of vertical separation between the floor and the lowest laser
light vertically. Additionally, 2.5 meters of horizontal separation is required between laser light and
audience or other public spaces.
The audience area can be passively protected by sliding the aperture cover plate upwards and fixing it in
proper position by the two thumb screws.

RIGGING

 Be sure that the structure onto which you are mounting this product can support its weight.
 Mount the product securely. You can do this with a screw, a nut, and a bolt. You may also use a
mounting clamp if rigging this product onto a truss. The U-shaped support bracket has three
mounting holes which may be used to secure the clamps to the projector.
 When mounting this product overhead, always use a safety cable.
 Always consider ease of access to the unit before deciding on a location for this product
Projector
Elite Pro series Operation Manual (Revision 2020-7)
Beams
3 meters
