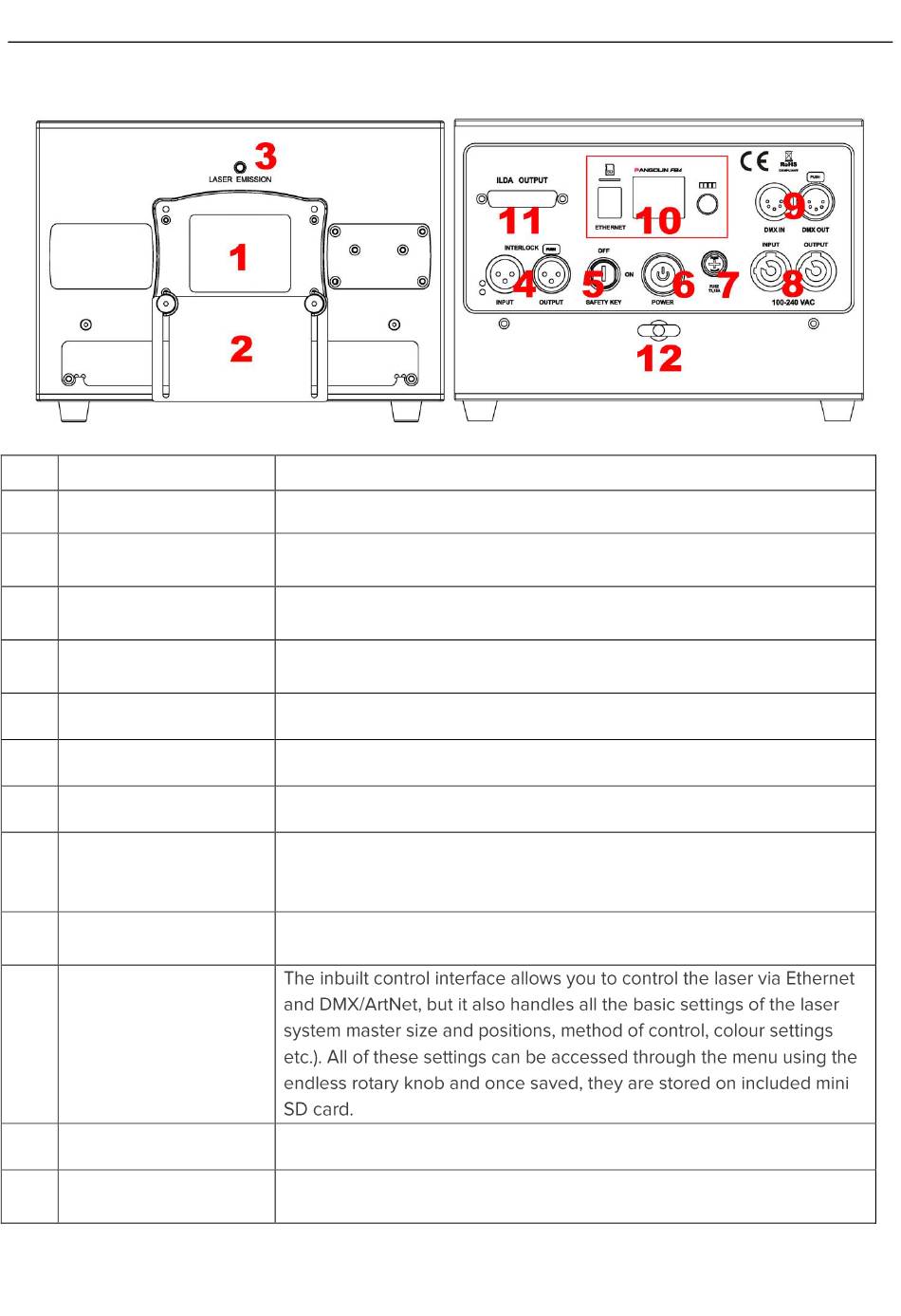

Front & Rear panel view (Elite 3 PRO)
NO. Name
1
Laser aperture
Aperture masking
2
plate
3
Laser emission
4
3-Pin Interlock
5
Key switch
6
Power ON/OFF
7
Fuse
8
Power in & out
9
DMX Input/Through
FB4 laser control
10
interface
11
DB25 OUT
12
Safety eyelet
Laser output, do not look directly into this aperture
Can be moved up and down when two locking bolts are loosened. The
masking plate can also be attached to the top of the aperture.
When this indicator is lit up the laser system is ready to emit the laser
radiation as soon as it receives instructions from control software.
Laser output is available only when the interlock is connected.
It could be used to connect a laser emergency switch.
Turn the key switch ON to allow laser output.
Power on/off
Current rating 3.15A, slow acting type.
AC100~240V power input and output sockets. With output feature you
can connect the device to one another using the input and output
sockets. They must be the same fixtures. DO NOT mix fixtures.
Use these ports to connect DMX control signal or to daisy chain the
DMX signal between multiple laser display systems.
DB25 interface out for ILDA mode
Use this together with appropriate safety wire to secure the system
against unexpected fall.
