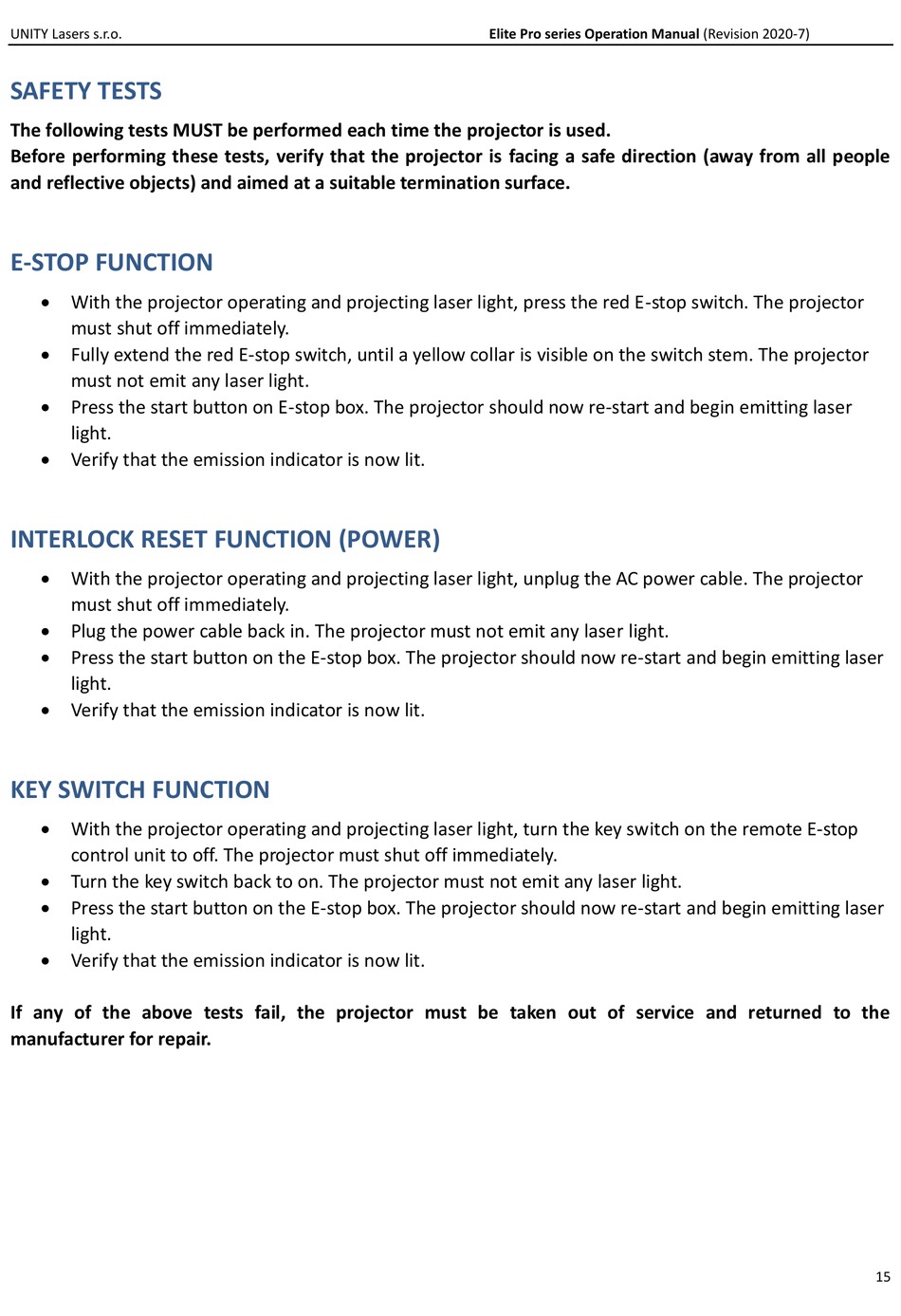

SAFETY TESTS

The following tests MUST be performed each time the projector is used.
Before performing these tests, verify that the projector is facing a safe direction (away from all people
and reflective objects) and aimed at a suitable termination surface.

E-STOP FUNCTION

 With the projector operating and projecting laser light, press the red E-stop switch. The projector
must shut off immediately.
 Fully extend the red E-stop switch, until a yellow collar is visible on the switch stem. The projector
must not emit any laser light.
 Press the start button on E-stop box. The projector should now re-start and begin emitting laser
light.
 Verify that the emission indicator is now lit.

INTERLOCK RESET FUNCTION (POWER)

 With the projector operating and projecting laser light, unplug the AC power cable. The projector
must shut off immediately.
 Plug the power cable back in. The projector must not emit any laser light.
 Press the start button on the E-stop box. The projector should now re-start and begin emitting laser
light.
 Verify that the emission indicator is now lit.

KEY SWITCH FUNCTION

 With the projector operating and projecting laser light, turn the key switch on the remote E-stop
control unit to off. The projector must shut off immediately.
 Turn the key switch back to on. The projector must not emit any laser light.
 Press the start button on the E-stop box. The projector should now re-start and begin emitting laser
light.
 Verify that the emission indicator is now lit.
If any of the above tests fail, the projector must be taken out of service and returned to the
manufacturer for repair.
