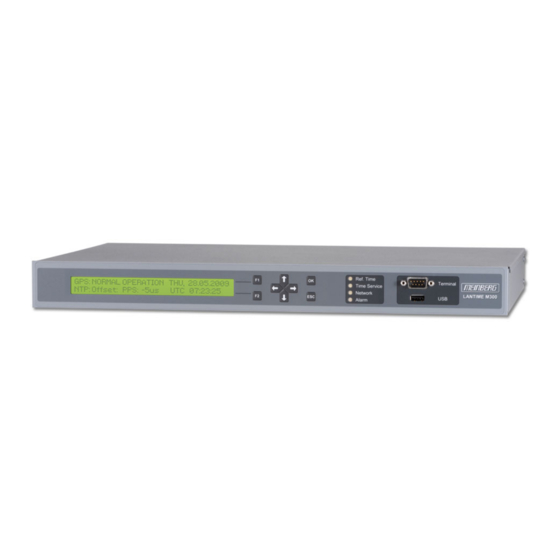

Meinberg LANTIME M300 WWVB Technical Reference
Ntp time server with wwvb receiver
Hide thumbs
Also See for LANTIME M300 WWVB:
- Manual (141 pages) ,
- Operating instructions manual (115 pages) ,
- Technical reference (46 pages)
Subscribe to Our Youtube Channel
Related Manuals for Meinberg LANTIME M300 WWVB
Summary of Contents for Meinberg LANTIME M300 WWVB

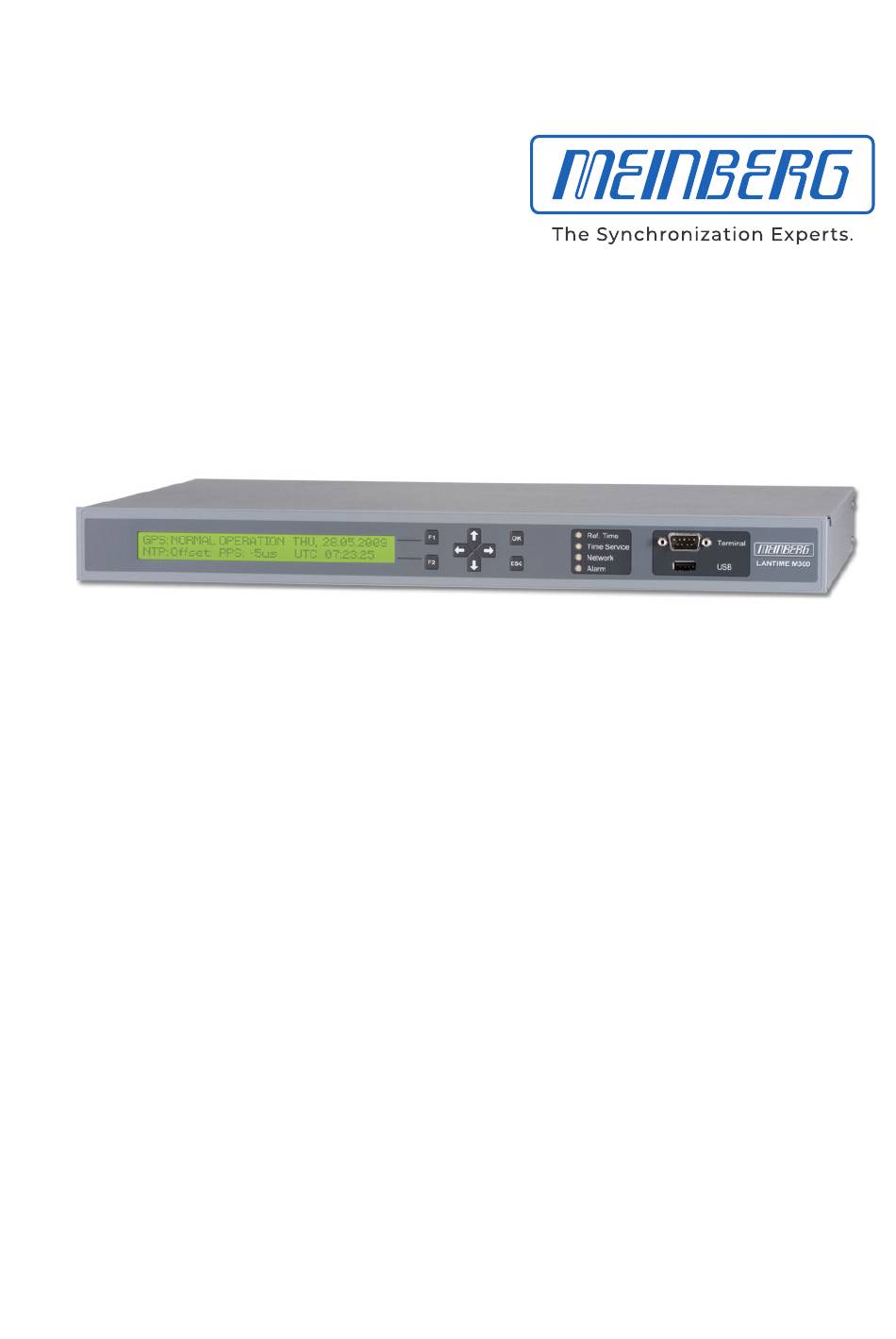

- Page 1 TECHNICAL REFERENCE LANTIME M300 WWVB NTP Time Server with WWVB Receiver 3rd September 2019 Meinberg Radio Clocks GmbH & Co. KG...
-
Page 3: Table Of Contents
Mounting and Installation of a Longwave Antenna ......8 WEEE Compliance 9 Declaration of Conformity Date: 3rd September 2019 LANTIME M300 WWVB... -
Page 4: Imprint
1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont / Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Internet: https://www.meinbergglobal.com... -
Page 5: Important Safety Information
Meinberg Funkuhren shall not be responsible for any damage arising due to non-observance of these regulations. -
Page 6: Used Symbols
Dieses Produkt fällt unter die B2B Kategorie. Zur Entsorgung muss es an den Hersteller übergeben werden. This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. LANTIME M300 WWVB Date: 3rd September 2019... - Page 7 This manual is intended exclusively for electricians or persons trained by an electrician who are familiar with the applicable national standards and safety rules. Installation, commissioning and operation of this device may only be carried out by qualified personnel. Date: 3rd September 2019 LANTIME M300 WWVB...
-
Page 8: Security During Installation
For safety reasons, the device with the highest mass should be installed in the lowest position of the rack. Other devices must be placed from the bottom to the top. The device must be protected against mechanical stress such as vibration or shock. LANTIME M300 WWVB Date: 3rd September 2019... - Page 9 fluids or foreign objects enter), the current flow can be interrupted. Questions about the house installation, need to be clarified with your house administration. The power supply should be connected with a short, low-inductance line. Date: 3rd September 2019 LANTIME M300 WWVB...
- Page 10 LANTIME M300 WWVB Date: 3rd September 2019...
-
Page 11: Protective Conductor- / Ground-Terminal
(grounding rail). The mounting parts (without cable) are not included in the scope of delivery. Note: Please use a grounding cable 1.5 mm Always pay attention to a correct crimp connection! Date: 3rd September 2019 LANTIME M300 WWVB... -
Page 12: Safety During Operation
Devices that are connected via one or more uninterruptible power supplies (UPS) remain operational even when the UPS power cord is disconnected. Therefore, you must put the UPS out of operation according to the documentation of the corresponding user documentation. LANTIME M300 WWVB Date: 3rd September 2019... -
Page 13: Safety During Maintenance
Risk of explosion if the battery is not replaced correctly. Replace only with the same or equivalent type recommended by the manufacturer. When disposing used batteries, observe the local regulations for the disposal of hazardous waste. Date: 3rd September 2019 LANTIME M300 WWVB... -
Page 14: Cleaning And Care
ESD protective covers, which are extremely wrinkled or even have holes, no longer protect against electrostatic discharge. ESD protective covers must not be low-resistance and metallically conductive if a lithium battery is installed on the assembly. LANTIME M300 WWVB Date: 3rd September 2019... -
Page 15: Return Of Electrical And Electronic Equipment
Return and Collection Systems For returning your old equipment, please use the country-specific return and collection systems available to you or contact Meinberg. The withdrawal may be refused in the case of waste equipment which presents a risk to human health or safety due to contamination during use. -
Page 16: Global Information Lantime M300/Wwvb
After the network connection has been established the time server can also be configured and monitored remotely from a workstation via TELNET or FTP. An integrated web server enables access to the LANTIME by using an ordinary web browser. LANTIME M300 WWVB Date: 3rd September 2019... -
Page 17: Technical Specifications Lantime Chassis
This connector must be wired to an equipotential bonding bar (earthing bar). Connection is possible on both sides of the housing. The mounting parts (without cable) are included in the scope of delivery. Date: 3rd September 2019 LANTIME M300 WWVB... -
Page 18: Lantime M300 - Front Connectors
By using the 4 arrows and the "ESC", "F1" and "F2" buttons of the keypad you can navigate through each menu in the display. You can always return to the main menu by pressing the "ESC" button several times. LANTIME M300 WWVB Date: 3rd September 2019... - Page 19 • to lock the keys on the LC-Display, to prevent unauthorized access • to save the LANTIME configuration • to transfer the configuration between several LANTIMES • to save log files Date: 3rd September 2019 LANTIME M300 WWVB...
-
Page 20: M300 - Rear Connectors
- All connectors must be protected against touching live parts with a suitable plug housing! - Note: Always ensure safe wiring! - Important: The device must be connected to a proper grounding (PE). LANTIME M300 WWVB Date: 3rd September 2019... -
Page 21: Rs232 Comx Timestring
19200 / 8N1 (default) Timestring: Meinberg Standard (default) Assignment: Pin 2: TxD (transmit) Pin 3: RxD (receive) Pin 5: GND (ground) COM x Connection type: D-SUB female 9pin. Cable: data cable (shielded) PC connector 1:1 Date: 3rd September 2019 LANTIME M300 WWVB... -
Page 22: Error Relay
Dangerous voltages can occur at the terminal of the fault signal relay! Work on the terminal of the fault signal relay must never be carried out with the signal voltage present! LANTIME M300 WWVB Date: 3rd September 2019... -
Page 23: Wwvb Antenna
6.6 Pulse Per Second Output Output signal PPS (pulse per second) Signal level: TTL 2.5 V into 50 Ohm Pulse length: 200 ms Connection type: BNC, female PPS Out Cable: shielded coax line Date: 3rd September 2019 LANTIME M300 WWVB... -
Page 24: 10/100Base-T Network Port (Ieee 803.2)
6 M300 - Rear connectors 6.7 10/100Base-T Network Port (IEEE 803.2) Output signal: 100Base-T Data transmission speed: 10/100 MBit/s LAN x Connection type: 8P8C (RJ45) Cable: Copper twisted pair, e.g. CAT 5.0 100M 10M Duplex Modes: Half/Full/Autonegotiaton LANTIME M300 WWVB Date: 3rd September 2019... -
Page 25: Wwvb Antenna
The antenna has to be mounted as exactly as possible. Turning it out of the main receive direction will result in less accurate time frames. The antenna must be placed in longitudinal direction to the WWVB-transmitter (Fort Collins - Colorado). Date: 3rd September 2019 LANTIME M300 WWVB... -
Page 26: Mounting And Installation Of A Longwave Antenna
For standard longwave receivers it is important that the modulation mark is blinking exactly once per second, without intermediate flickering. LANTIME M300 WWVB Date: 3rd September 2019... -
Page 27: Weee Compliance
Any transportation expenses for return- ing this product (at its end of life) have to be incurred by the end user, whereas Meinberg will bear the costs for the waste disposal itself. Date: 3rd September 2019... -
Page 28: Declaration Of Conformity
9 Declaration of Conformity 9 Declaration of Conformity Konformitätserklärung Doc ID: LANTIME M300/WWVB-2019-09-03 Hersteller Meinberg Funkuhren GmbH & Co. KG Manufacturer Lange Wand 9, D-31812 Bad Pyrmont erklärt in alleiniger Verantwortung, dass das Produkt, declares under its sole responsibility, that the product...
