Function chart Distributing station

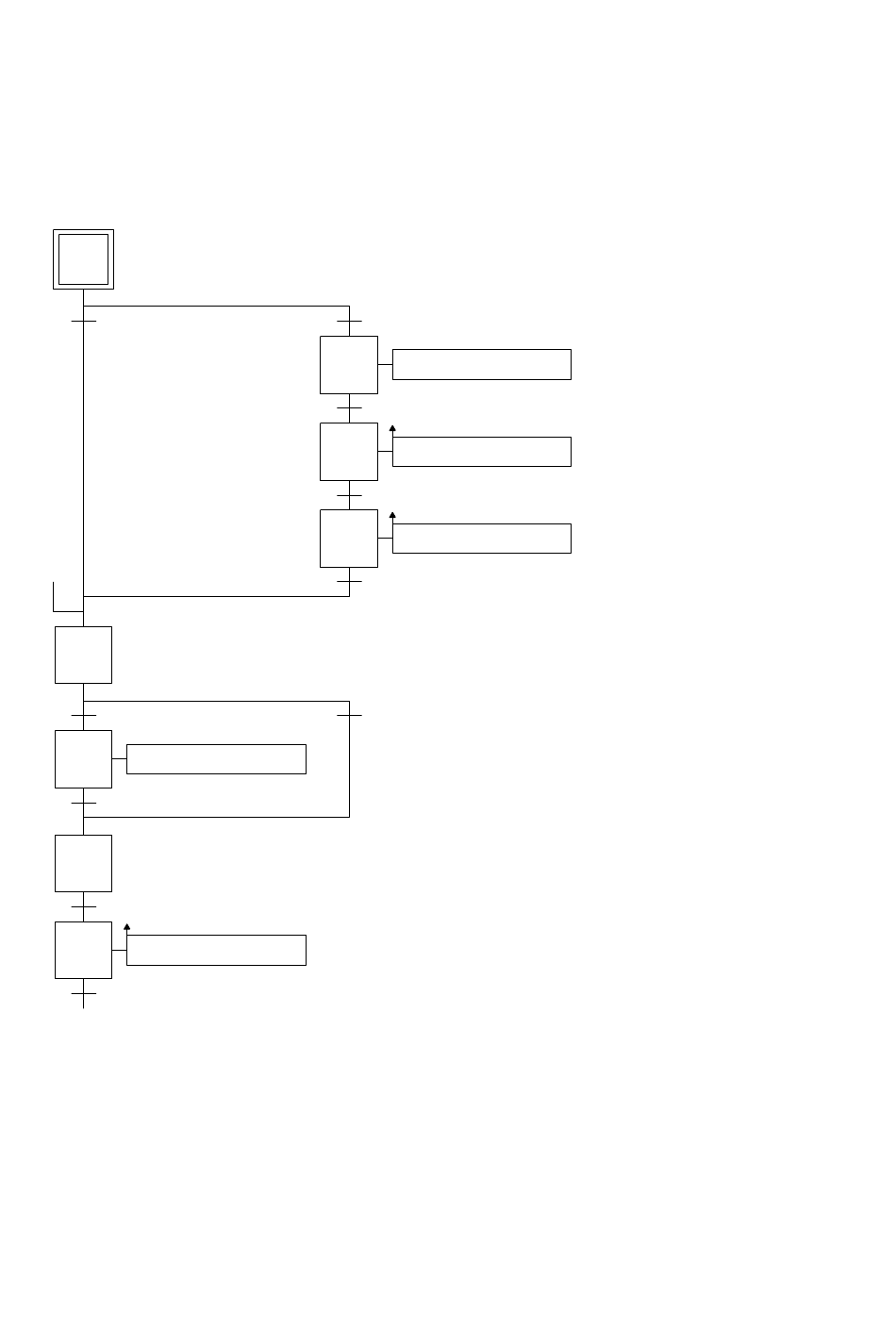

sequential function chart according to DIN EN 60848 (IEC 60848) for the Distribution station
1-bit-link
1
Start
station is reset
and in initial position
C 16
5
empty step:
cycle start
flag "start" is not set
6
turn on "start"
"start"
indicator light
indicator
light
flag "start" is set
7
empty step:
downstream
station free
downstream station free
8
swivel arm to position
swivel arm
to position
"downstream station"
"downstream
station"
swivel arm to position "downstream station"
A 9
© Festo Didactic GmbH & Co. KG • MPS
station is not reset
2
turn on "reset"
"reset"
indicator light
indicator
light
"reset" button pressed
3
move station
initial-
to initial position
position
station in initial position
4
set flag "reset finished"
reset
ok
flag "reset finished"is set
flag "start" is set
