- Page 1 Pressure booster (en) Operating instructions 8080164 2017-07e [8080166]...
- Page 2 ............... . . Festo DPA 2017-07e...
-
Page 3: Pressure Booster

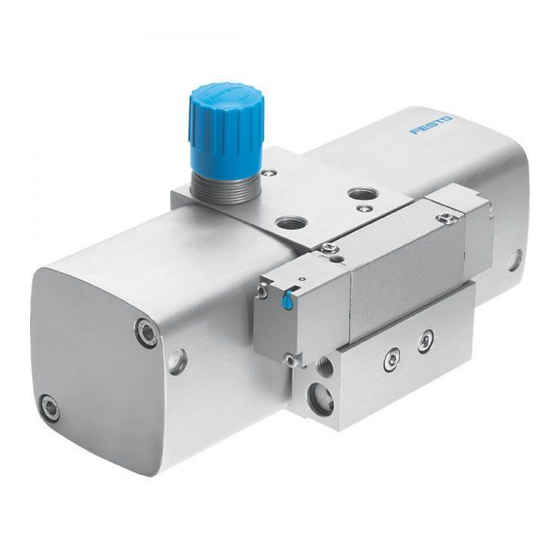

Pressure booster DPAEnglish Documentation on the product For all available product documentation è www.festo.com/pk Operating elements and ports DPA-40 DPA-63/100 Pneumatic connection 1 for input pressure Manual override Pneumatic connection 2 for output pressure Exhaust hole; sealed with sintered filter... -
Page 4: Function And Application
Ensure that there is a supply of correctly prepared compressed air. Take into consideration the ambient conditions at the location of use. Please comply with national and local safety laws and regulations (e.g. Safety regulations as per EN 1012, part 1). Festo DPA 2017-07e English... -
Page 5: Transport And Storage
S Take the weight of the DPA into consideration. Depending on the version, the DPA can weigh up to 13 kg. The rotary knob must not be used as a support for transporting the DPA because the large load may dislodge the rotary knob. Festo DPA 2017-07e English... -
Page 6: Installation
(2x) threaded holes of the DPA on the right and left. Tightening torque 30 Nm. 1) The exhaust hole and both valve exhaust ports (6/7 è Fig. 1) must not be sealed. Festo DPA 2017-07e English... - Page 7 Use a silencer for the exhaust air. If the exhaust air is to be ducted, it must be vented relative to atmosphere. The exhaust air from both valve exhaust ports (7 è Fig. 1) must not be ducted. Check whether an air reservoir is required. In this way you will avoid pressure fluctuations. Festo DPA 2017-07e English...
- Page 8 15 Nm 25 Nm 40 Nm 2 Nm 25 Nm 40 Nm Inner hose diameter/ 7 mm/ 12 mm/ 12 mm/ recommended hose PAN-10x1.5 PAN-16x2 PAN-16x2 type 5 mm/ 10 mm/ 10 mm/ PAN-R-8x1.25 PAN-R-16x3 PAN-R-16x3 Festo DPA 2017-07e English...
- Page 9 DPA-…-10. DPA-40-10/16/D DPA-63/100-10/16 DPA-63-D DPA-100-D Fig. 4 4. Align the pressure gauge with the spanner by screwing it in further by a maximum of 1.5 turns. Festo DPA 2017-07e English...
- Page 10 First open the three-way valve on the input side, then the three-way on-off valve on the output side. Note The output pressure on pressure boosters without a controller is twice the input pressure. Festo DPA 2017-07e English...
- Page 11 The pressure statuses are monitored by pressure gauges (è Fig. 4): – Pressure gauge (A): input pressure – Pressure gauge (B): output pressure 5. DPA-63/100-10 only: Press the rotary knob towards the housing to lock it. Festo DPA 2017-07e English...
- Page 12 Flange mounting DPA-40 FDPA-40 Foot mounting DPA-63 HUA-63 DPA-100 HUA-100 Pressure gauge set DPA-40-10 DPA-40-10-MA-SET DPA-40-16/DPA-40-D DPA-40-16-MA-SET DPA-63-10 DPA-63-10-MA-SET DPA-63-16 DPA-63-16-MA-SET DPA-100-10 DPA-100-10-MA-SET DPA-100-16 DPA-100-16-MA-SET Pressure gauges DPA-63-D/DPA-100-D MA-40-16-x-EN for input pressure, MA-40-25-x-EN for output pressure Festo DPA 2017-07e English...
-
Page 13: Troubleshooting
(e. g. with large com pressed air reservoir) Pressure booster Fault in commissioning/unfa Briefly exhaust the switching does not start vourable Operating conditions valve by pressing the manual è override 5 ( (valve in mid-position) Fig. 1) Festo DPA 2017-07e English... -
Page 14: Technical Data
1) If the regulator spring is at maximum tension (rotary knob turned all the way clock wise), the maximum output pressure can be exceeded by 40 %: – Max. 14 bar on DPA-…-10 – Max. 22 bar on DPA-…-16 Festo DPA 2017-07e English... - Page 15 Festo DPA 2017-07e...
- Page 16 Copyright: Festo AG & Co. KG Ruiter Straße 82 73734 Esslingen Germany Phone: +49 711 347-0 Fax: +49 711 347-2144 E-mail: Reproduction, distribution or sale of this document or communica service_international@festo.com tion of its contents to others without express authorization is prohibited.
