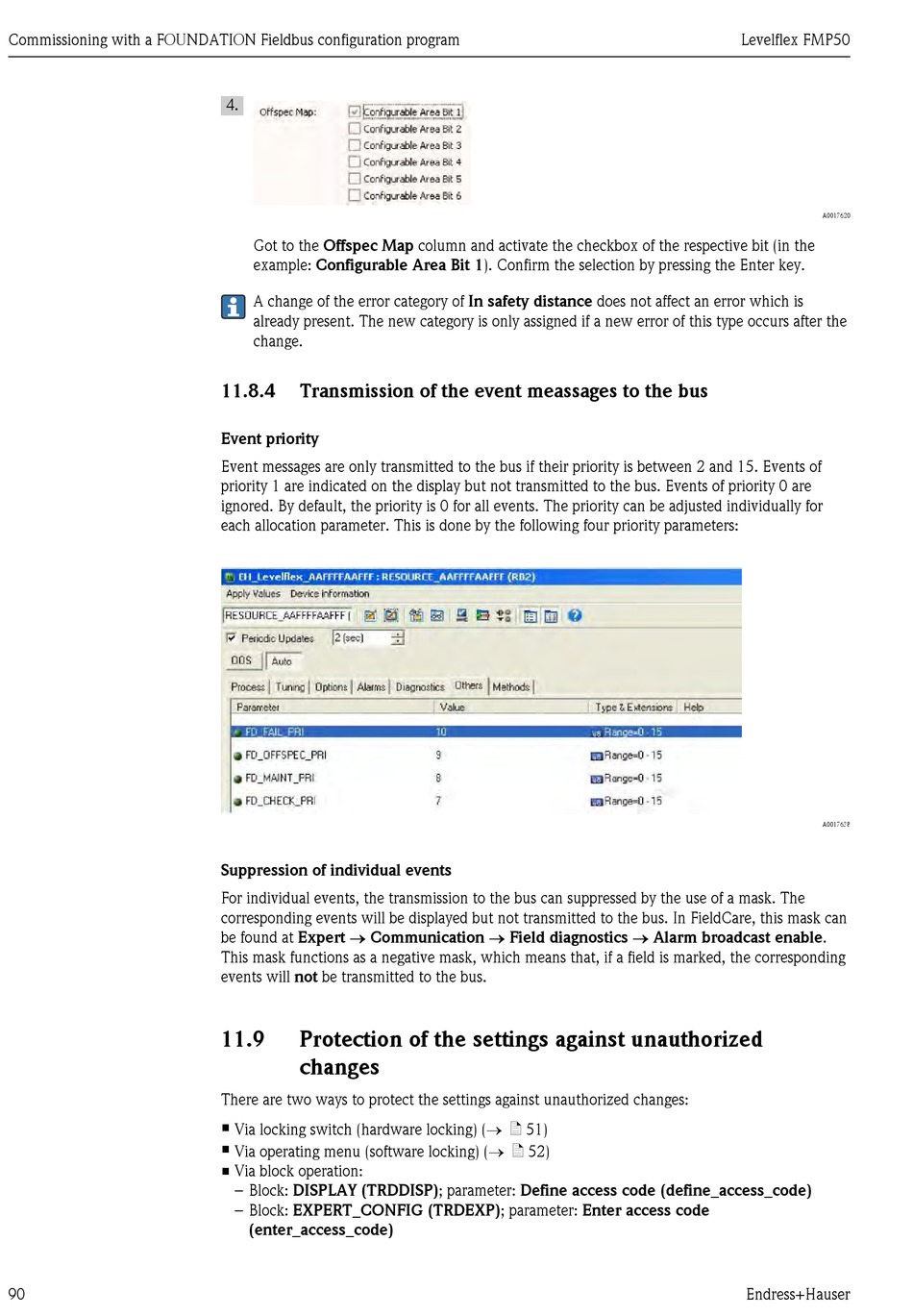

Transmission Of The Event Meassages To The Bus; Protection Of The Settings Against Unauthorized Changes - Endress+Hauser Levelflex FMP50 Operating Instructions Manual

Commissioning with a FOUNDATION Fieldbus configuration program
90
4.
Got to the Offspec Map column and activate the checkbox of the respective bit (in the
example: Configurable Area Bit 1). Confirm the selection by pressing the Enter key.
A change of the error category of In safety distance does not affect an error which is
already present. The new category is only assigned if a new error of this type occurs after the
change.
11.8.4

Transmission of the event meassages to the bus

Event priority
Event messages are only transmitted to the bus if their priority is between 2 and 15. Events of
priority 1 are indicated on the display but not transmitted to the bus. Events of priority 0 are
ignored. By default, the priority is 0 for all events. The priority can be adjusted individually for
each allocation parameter. This is done by the following four priority parameters:
Suppression of individual events
For individual events, the transmission to the bus can suppressed by the use of a mask. The
corresponding events will be displayed but not transmitted to the bus. In FieldCare, this mask can
be found at Expert ® Communication ® Field diagnostics ® Alarm broadcast enable.
This mask functions as a negative mask, which means that, if a field is marked, the corresponding
events will not be transmitted to the bus.
11.9 Protection of the settings against unauthorized
changes
There are two ways to protect the settings against unauthorized changes:
• Via locking switch (hardware locking) (® ä 51)
• Via operating menu (software locking) (® ä 52)
• Via block operation:
– Block: DISPLAY (TRDDISP); parameter: Define access code (define_access_code)
– Block: EXPERT_CONFIG (TRDEXP); parameter: Enter access code
(enter_access_code)
Levelflex FMP50
A0017620
A0017638
Endress+Hauser
