Levelflex FMP50
Endress+Hauser

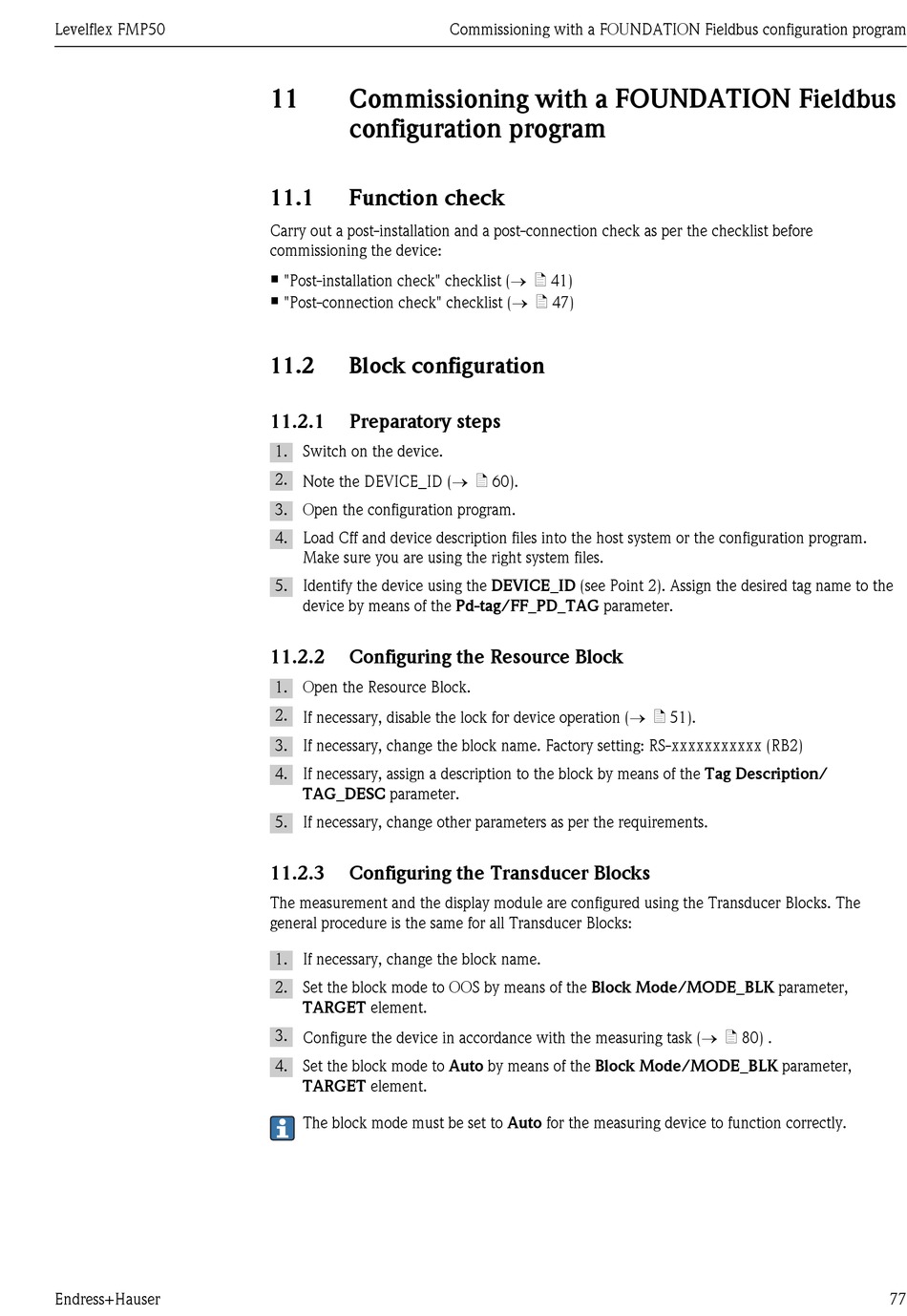

11 Commissioning with a FOUNDATION Fieldbus
configuration program
11.1

Function check

Carry out a post-installation and a post-connection check as per the checklist before
commissioning the device:
• "Post-installation check" checklist (® ä 41)
• "Post-connection check" checklist (® ä 47)
11.2

Block configuration

11.2.1

Preparatory steps

1. Switch on the device.
2. Note the DEVICE_ID (® ä 60).
3. Open the configuration program.
4. Load Cff and device description files into the host system or the configuration program.
Make sure you are using the right system files.
5. Identify the device using the DEVICE_ID (see Point 2). Assign the desired tag name to the
device by means of the Pd-tag/FF_PD_TAG parameter.
11.2.2

Configuring the Resource Block

1. Open the Resource Block.
2. If necessary, disable the lock for device operation (® ä 51).
3. If necessary, change the block name. Factory setting: RS-xxxxxxxxxxx (RB2)
4. If necessary, assign a description to the block by means of the Tag Description/
TAG_DESC parameter.
5. If necessary, change other parameters as per the requirements.
11.2.3

Configuring the Transducer Blocks

The measurement and the display module are configured using the Transducer Blocks. The
general procedure is the same for all Transducer Blocks:
1. If necessary, change the block name.
2. Set the block mode to OOS by means of the Block Mode/MODE_BLK parameter,
TARGET element.
3. Configure the device in accordance with the measuring task (® ä 80) .
4. Set the block mode to Auto by means of the Block Mode/MODE_BLK parameter,
TARGET element.
The block mode must be set to Auto for the measuring device to function correctly.

Commissioning with a FOUNDATION Fieldbus configuration program

77
