Axon Fleet 2 Quick Start Manual

Axon Fleet 2 Camera System Quick Start Guide
English (U.S./Canada/Australia/U.K.)

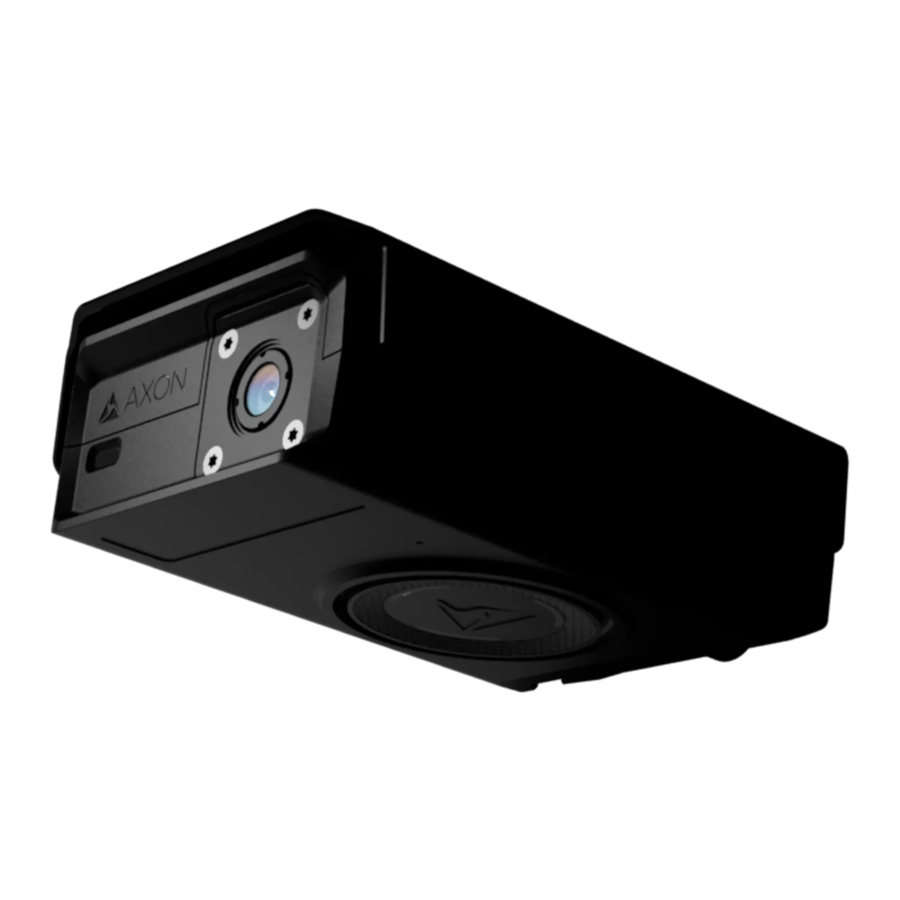

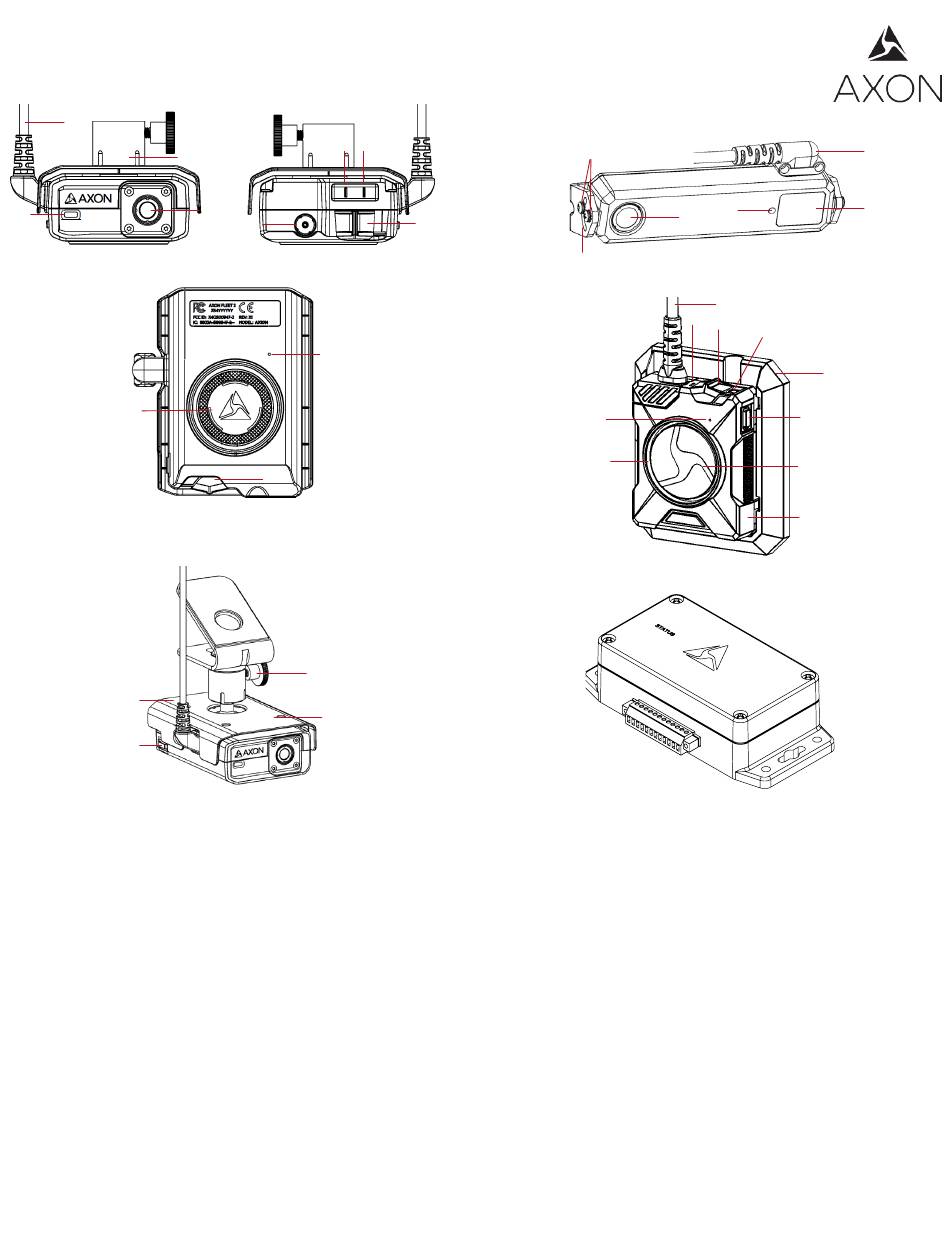

Axon Fleet 2 Front Camera Hardware
4
3
2
camera front
9
camera bottom
14
13
camera in adhesive window mount
Axon Fleet 2 Front Camera Features
1. Camera lens
2. Operation indicator (blinking green = BUFFERING mode, blinking
red = EVENT (recording) mode)
3. Swivel ball joint
4. Power/audio cable
5. Dataport (data transfer through PC)
6. Function LED (see table on page 2)
7. Operation LED (see table on page 2)
8. Power switch (red = On/BUFFERING mode)
9. EVENT button (press = start recording; press = stop recording
10. Speaker
11. Thumbscrew (Loosen to pan and tilt the camera, and then tighten
to fix camera in place. Failure to loosen the thumbscrew prior to
tilting or panning the camera may damage the camera swivel ball
joint or camera housing.)
12. Sunshield
13. Function button (mute or add marker)
14. Microphone (under sunshield)
6 7
1
5
camera back
10
8
11
12
Axon Fleet 2 Rear Camera Hardware
F
8
B
M
O
Axon Fleet 2 Rear Camera Features
A. Camera lens
B. Camera mount
C. Ambient light sensor
D. IR illumination window
E. Camera cable
F. Angle adjustment screws
G. Camera controller
H. Controller mount
I. Function LED (see table on page 2)
J. Operation LED (see table on page 2)
K. Power switch (red = On/BUFFERING mode)
L. EVENT button (press = start recording; press = stop recording)
M. Speaker
N. Function button (mute or add marker)
O. Ring LED (blinks red and yellow during firmware updates)
Note: A microphone is located on the back of the rear camera.
C
A
rear camera
E
I
K
J
rear camera controller and mount
Axon Fleet power unit
(one provided for each Axon Fleet 2 camera)
E
D
H
N
L
G
