  • Page 1 Axon Fleet 2 Camera System User Manual Document Revision: BETA-I July 2018...
  • Page 2 Javascript is a trademark of Oracle America, Inc. registered in the US and other countries.   Axon, Axon Fleet 2, Evidence.com, Evidence.com Lite, Evidence Sync, and TASER are trademarks of Axon Enterprise, Inc., some of which are registered in the US and other countries. For more information, visit www.axon.com/legal.

  • Page 3: Table Of Contents

    Table of Contents Introduction..............................4 Additional Reading ............................. 4 Getting to Know Your Axon Fleet 2 Camera System ................6 Axon Fleet 2 Front Camera Hardware ..................... 6 Axon Fleet Rear Camera Hardware ......................9 Axon Fleet Power Unit ..........................11 Recording with the Axon Fleet 2 System ....................

  • Page 4: Introduction

    Wi-Fi technology. You also can transfer information by using Evidence Sync software installed on a Windows computer. The Axon Fleet 2 system usually consists of 2 cameras: one installed in the front of the vehicle in a windshield mount, and the second pointed at the law enforcement vehicle’s prisoner compartment.
  • Page 5 Axon Fleet 2 Camera System User Manual The Axon Academy website explains how to register for the Evidence.com website, configure settings, assign personnel to cameras, and transfer video from an Axon device to a computer. Visit academy.axon.com. Axon Enterprise, Inc.

  • Page 6: Getting To Know Your Axon Fleet 2 Camera System

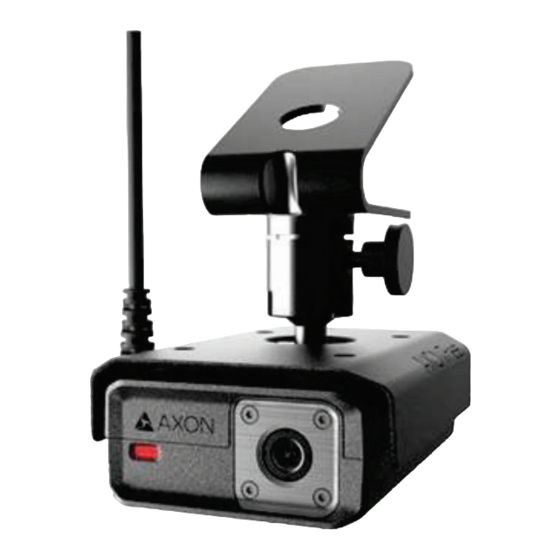

    Note: Many of the features activated by the buttons below also can be activated with the Axon View XL program. See the Axon View XL Manual for more information. Axon Fleet 2 Front Camera Hardware The following images show the different components on the Axon Fleet 2 front camera, Model AX1014. Swivel ball joint...
  • Page 7 Axon Fleet 2 Camera System User Manual Function LED Operation LED Dataport Power switch Axon Fleet 2 Front Camera back Function LED – Shows camera functions that are enabled. Function Enabled Function LED Mute Blinking blue Camera error* Solid red...
  • Page 8 Sunshield (under sunshield) Function Button Axon Fleet 2 Front Camera with windshield mount Windshield mount – Attaches to the vehicle’s windshield. Thumbscrew – Allows panning and tilting the camera, and then fixing camera in place. Sunshield – Used to reduce glare on camera lens.

  • Page 9: Axon Fleet Rear Camera Hardware

    Microphone – For recording in-cabin audio. Located under the sunshield. Axon Fleet Rear Camera Hardware The following images show the different components on the Axon Fleet 2 rear camera, Model AX1015, and rear camera controller, Model AX1016. Microphone (on back of camera)
  • Page 10 Camera cable – Connects the camera to the camera controller. Camera controller – The Axon Fleet 2 rear camera controller includes physical controls to enable video and audio capture while providing visual and audible notifications of the camera’s state of operation.

  • Page 11: Axon Fleet Power Unit

    The Axon Fleet system uses the vehicle’s electrical system as a power source. If the vehicle’s ignition is shut off, the battery in the Axon Fleet power unit supplies power to the camera so it can keep recording. With a fully charged power unit battery, the camera can record up to 4 hours without the engine running.

  • Page 12: Recording With The Axon Fleet 2 System

    With default settings, the system does not capture audio in BUFFERING mode, so anything recorded in that mode will be video-only. BUFFERING mode starts only after the Axon Fleet system is turned on. The system does not record when the camera is turned off.

  • Page 13: Event Mode (Starting Recording)

    Use the Axon View XL application to start recording. Press the EVENT button on the camera/controller. • If your vehicle has an Axon Signal Vehicle unit, your camera will transition from • BUFFERING to EVENT mode when the Axon Signal Vehicle unit sends a signal.

  • Page 14: Muting Audio Recording

    • Zoom Function The Axon Fleet 2 Front Camera is equipped with a zoom function. This function allows you to magnify the center portion of the front camera’s view while using Live View. The zoom function works in both BUFFERING and EVENT modes.

  • Page 15: Axon Signal

    Emergency vehicles can be equipped with an Axon Signal Vehicle unit. When triggered, such as by a light bar activation, the Axon Signal Vehicle unit sends a signal to your Axon Fleet system. Upon receiving this signal, your Axon cameras transition from BUFFERING to EVENT mode.
  • Page 16 Axon Fleet 2 Camera System User Manual The Axon Signal technology cannot turn an Axon system on. If the Axon Fleet system is turned off, the camera will not record even if an Axon Signal Vehicle unit sends a trigger signal. Axon Enterprise, Inc.

  • Page 17: Notification Reference Tables

    Axon Fleet 2 Camera System User Manual Notification Reference Tables Audio Prompts The Axon Fleet system emits beeping sounds called “audio prompts” to notify you of the system status. These audio prompts usually occur after a camera action. Operating Mode Audio Notification...

  • Page 18: Uploading Video From The Axon Fleet 2 System

    Wireless via LTE The Axon Fleet system can upload video via Long Term Evolution (LTE), a fast wireless service, if the vehicle has an in-car router that supports LTE. For more information, see the Axon View XL Manual. Wireless at Station An agency can equip its parking facilities with wireless access points so that vehicles equipped with Axon Fleet systems can upload their videos.

  • Page 19: Troubleshooting And Other Information

    Troubleshooting and Other Information • If you have trouble with your Axon Fleet system cameras, turn the camera off and turn it on again. If you receive camera status errors in View XL, refer to the Axon View XL Manual for •...

  • Page 20: Compliance Marks

    Compliance Marks Radio Waves An Axon Fleet 2 system transmission is in the frequency ranges of 2402 – 2480 MHz, 2412 – 2462 MHz, and 5745 – 5825 MHz. Changes or modifications to the equipment not expressly approved by the manufacturer could void the product warranty and the user’s authority to operate the equipment.
  • Page 21 Axon Fleet 2 Camera System User Manual This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 22 Axon Fleet 2.0 Front camera uses a stamped metal dual band dipole. Antenna gain is <5.8dBi at 2.4GHz, and <1.88dBi at 5.8GHz. The required impedance for this antenna is 50 ohms.
