Issue 10
Original version
Apr 19

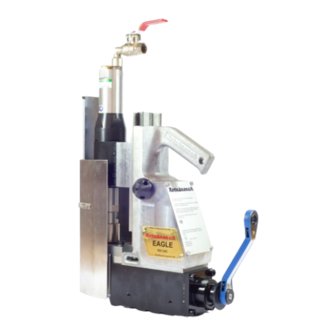

Magnetic drilling machine
Model Number RD130C
This machine (Serial Number ...........................) is CE approved.
Ex II 2GD c T6 IIC T85°C
Rotabroach™ Ltd
Burgess Road
Sheffield, South Yorkshire
United Kingdom
S9 3WD
Tel: +44 (0) 114 2212 510
Fax: +44 (0) 114 2212 563
Email: sales@rotabroach.co.uk
Web site: www.rotabroach.co.uk
- 1 -
Advertisement
Table of Contents
Related Manuals for Rotabroach RD130C
Summary of Contents for Rotabroach RD130C
- Page 1 Issue 10 Original version Apr 19 Magnetic drilling machine Model Number RD130C This machine (Serial Number ......) is CE approved. Ex II 2GD c T6 IIC T85°C Rotabroach™ Ltd Burgess Road Sheffield, South Yorkshire United Kingdom S9 3WD Tel: +44 (0) 114 2212 510 Fax: +44 (0) 114 2212 563 Email: sales@rotabroach.co.uk...
- Page 2 We would really like your feedback on the machine. Other Products by Rotabroach™: Thank you for your purchase of our product. For more information please visit our website at www.rotabroach.co.uk Or contact our sales department on +44 (0) 114 2212 510 - 2 -...
-
Page 3: Table Of Contents
Issue 10 Original version Apr 19 CONTENTS OF THE MANUAL. 1) INTENDED USE ____________________________________________________________________ 5 2) GENERAL SAFETY RULES ____________________________________________________________ 5 3) OPERATIONAL SAFETY PROCEDURES __________________________________________________ 5 4) INFORMATION PLATE SYMBOLS ______________________________________________________ 7 5) SPECIFICATION ____________________________________________________________________ 8 6) MOUNTING OF CUTTERS ____________________________________________________________ 9 7) REMEDIES FOR HOLE MAKING PROBLEMS ______________________________________________ 9 8) EXPLODED VIEW OF MACHINE ______________________________________________________ 11 9) PARTS LIST ______________________________________________________________________ 12... - Page 4 On the basis of the referenced test reports, the below product has been found to comply with the relevant harmonised standard(s) to the directive(s) listed on this verification at the time the tests were carried out. Name and address of manufacturer: Rotabroach Ltd Burgess Road, Sheffield S9 3WD, United Kingdom...
-
Page 5: Intended Use
Read all these instructions before attempting to operate the machine. Remove from the pneumatic supply before carrying out any adjustment, servicing or maintenance. Follow instructions for lubricating and changing accessories. All repairs to be carried out by an authorized Rotabroach service facility. 3) OPERATIONAL SAFETY PROCEDURES OPERATING INSTRUCTIONS READ BEFORE USING THE MACHINE Before connecting the pneumatic supply, ensure the motor switch is in the off position. - Page 6 Issue 10 Original version Apr 19 10. Form the habit of checking to see that keys and adjusting wrenches are removed from the tool before turning it on. 11. Never operate the machine if parts are missing or damaged. 12. Never direct jets of water or flammable liquids over the drill. 13.
-
Page 7: Information Plate Symbols
Issue 10 Original version Apr 19 • Follow instructions for lubricating and changing accessories. 28. On completion of the cut, a slug will be ejected. DO NOT operate the machine if the slug has not ejected as it may cause injury. 29. -
Page 8: Specification
Issue 10 Original version Apr 19 5) SPECIFICATION Maximum hole cutting capacity in .2/.3C steel = 52mm dia. x 50mm deep Arbor bore = 19.05mm (3/4”) dia. Motor Unit Atlas Copco LZB 42 A0030-11 300 RPM 6-7 Bar (Nominal values) Hose 10mm (3/8) Magnet Manually Operated... -
Page 9: Mounting Of Cutters
Issue 10 Original version Apr 19 6) MAGNET DETECTION 7) EXTENSION CABLE SELECTION 6) MOUNTING OF CUTTERS • The machine has been made to accept cutters having 19.05mm (3/4”) dia. Weldon shanks. The following procedure is to be used when mounting cutters: Lay the machine on its side with feed handles uppermost, ensuring arbor is wound down to its lowest point to enable access to socket screws RD4066. - Page 10 Issue 10 Original version Apr 19 Insufficient use of cutting oil or unsuitable type of oil. Inject oil of light viscosity into the coolant-inducing ring and check that oil is being metered into cutter when pilot is depressed. If not, check pilot groove and arbor internally for dirt or apply oil externally.
-
Page 11: Exploded View Of Machine
Issue 10 Original version Apr 19 8) EXPLODED VIEW OF MACHINE - 11 -... -
Page 12: Parts List
Issue 10 Original version Apr 19 12) EXPLODED VIEW OF MACHINE 9) PARTS LIST Item Component Part No Item Component Part No Motor Packing RD3388 M6 Spring Washer RD4207 Magnet RD43100 M6 Socket Head Screw RD4098 Motor RD43105 Capstan Arm RD33089 Housing RD3380... -
Page 13: Atlas Copco Motor
Issue 10 Original version Apr 19 10) ATLAS COPCO MOTOR - 13 -... - Page 14 Issue 10 Original version Apr 19 Ref No. Part No Description 39 (40-42) 4430 0563 80 Gear rim complete Gear rim (z = 47) 4090 0704 00 Lubricating nipple 0335 3508 01 Circlip (SB45) 4430 0559 00 Front part 0666 8003 05 Seal ring (G30 x 37 x 4) 0337 2622 00 Key (R6 x 6 x 30)
-
Page 15: Pipe Adaptor Kit Rd2311
Feed the safety strap through the lugs at the front of the housing, around the pipe and pull tight. • When cutting the hole DO NOT use excessive pressure but rather let the cutter ease into the cutting surface. 12) OPTIONAL EXTRAS Rotabroach cutting fluid RD208 - 1 litre RD229 - 5 litre Chuck attachments RD440 –... -
Page 16: Maintenance
Apr 19 14) MAINTENANCE In order to ‘get the best life’ out of your Rotabroach machine always keep it in good working order. A number of items must always be checked on Rotabroach machines. Always before starting any job make sure the machine is in good working order and that there are no damaged or loose parts. -
Page 17: Cutter Selection And Speeds
Issue 10 Original version Apr 19 15) CUTTER SELECTION AND SPEEDS Material Material Hardness Cutter Mild and free cutting steels <700N/mm² RAP or RAPL Mild and free cutting steels <850N/mm² SRCV or SRCVL Steel angle and joists <700N/mm² RAP or RAPL Steel angle and joists <850N/mm²... -
Page 18: Warranty Statement
(or online registration) has been completed and returned to Rotabroach™ or its designated distributor within a period of (30) days from the purchase date. Failure to do so will void the warranty. If the stated is adhered to, Rotabroach™ will repair or replace (at its option) without charge any faulty items returned.
