3.2 Hole pattern flange (axis 5) and bottom

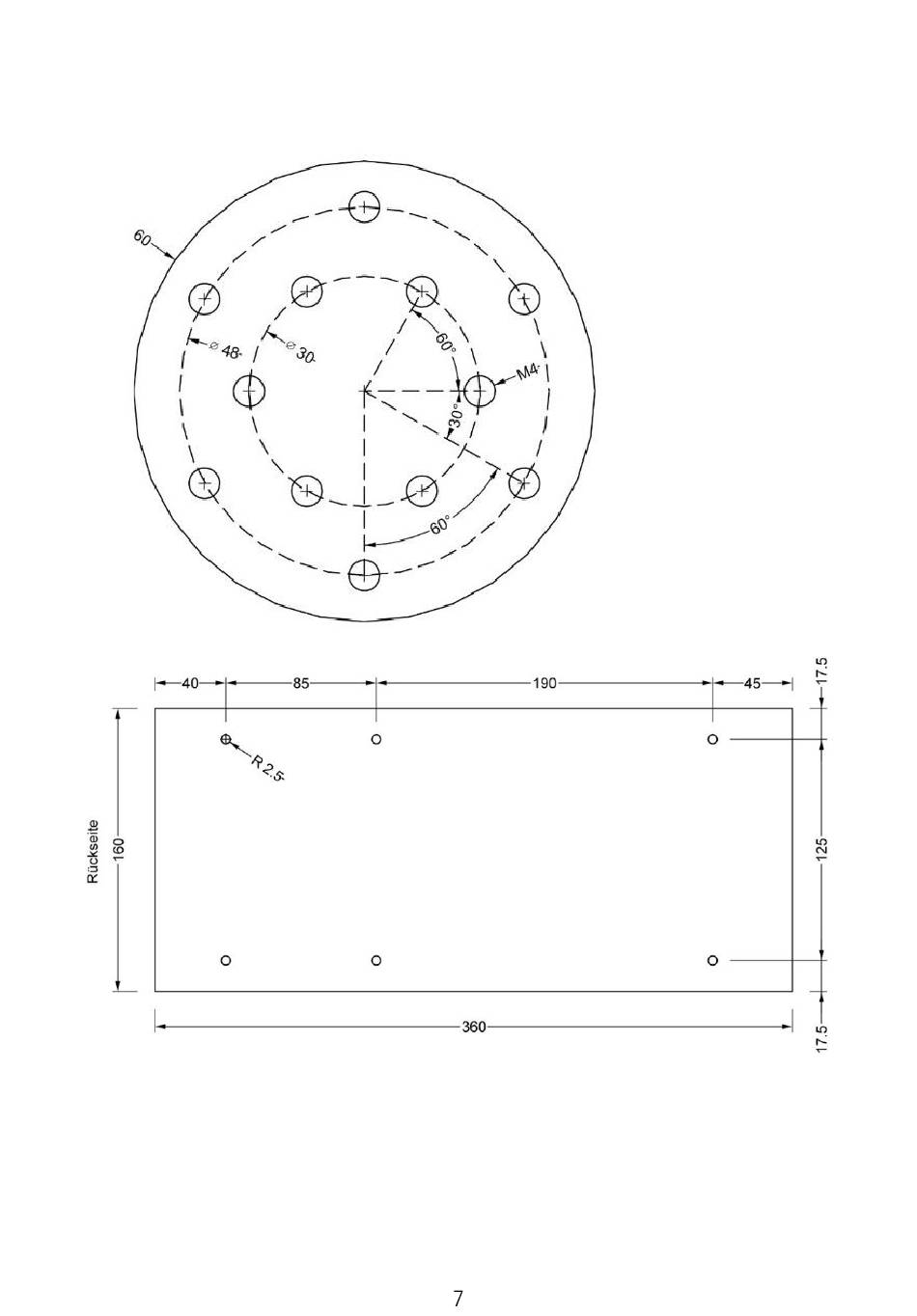

Diagram 2: Top: Hole pattern flange of the axis 5; Bottom: Hole pattern of the robot base.
