Dimensions And Pinout - Elatec TWN4 MultiTech 2 BLE Technical Handbook

2. TWN4 MultiTech 2 BLE PCB

2.2. Dimensions and Pinout

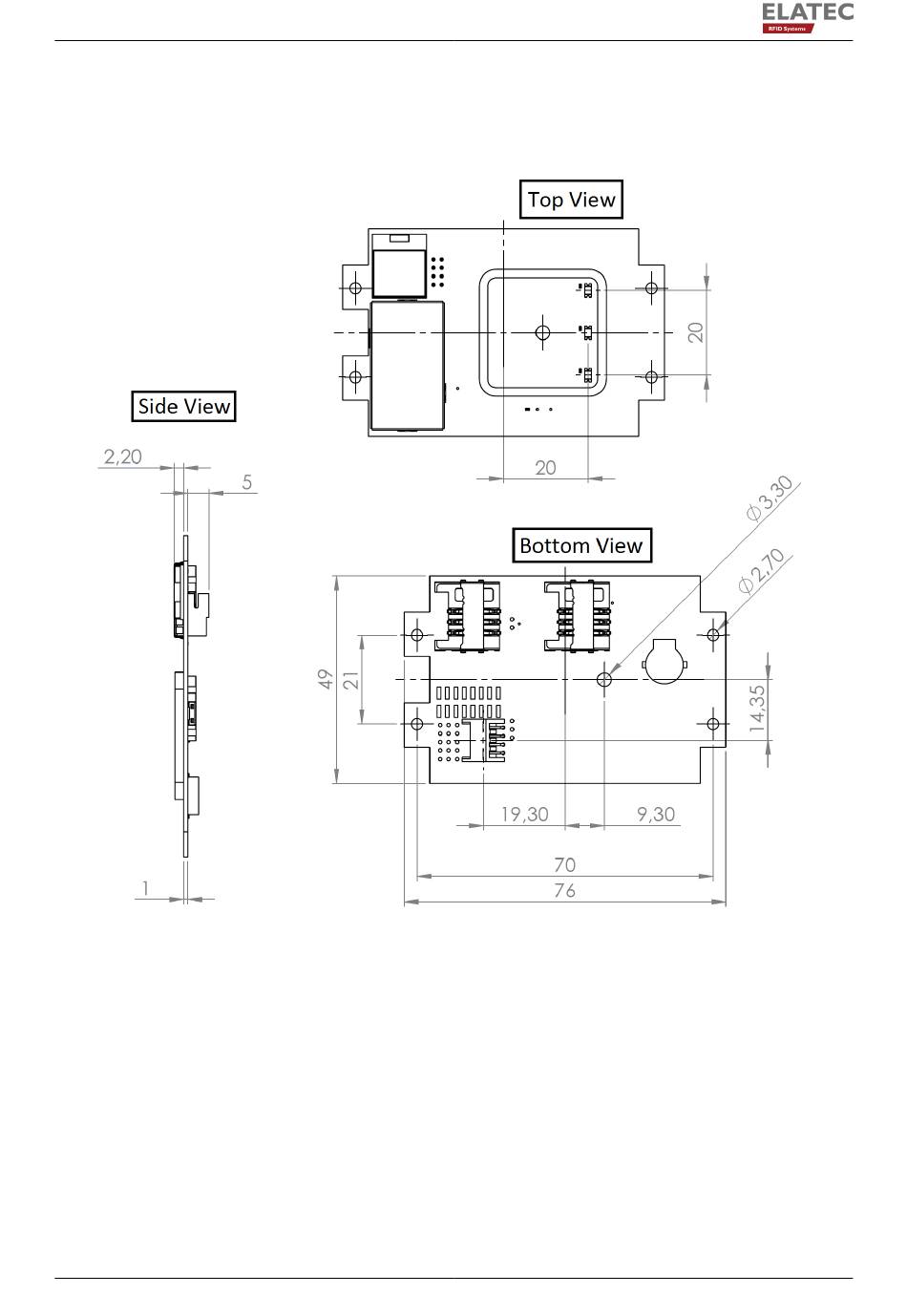

Figure 2.2 provides the physical dimensions of the TWN4 MultiTech 2 BLE.
Figure 2.2.: PCB Dimensions
