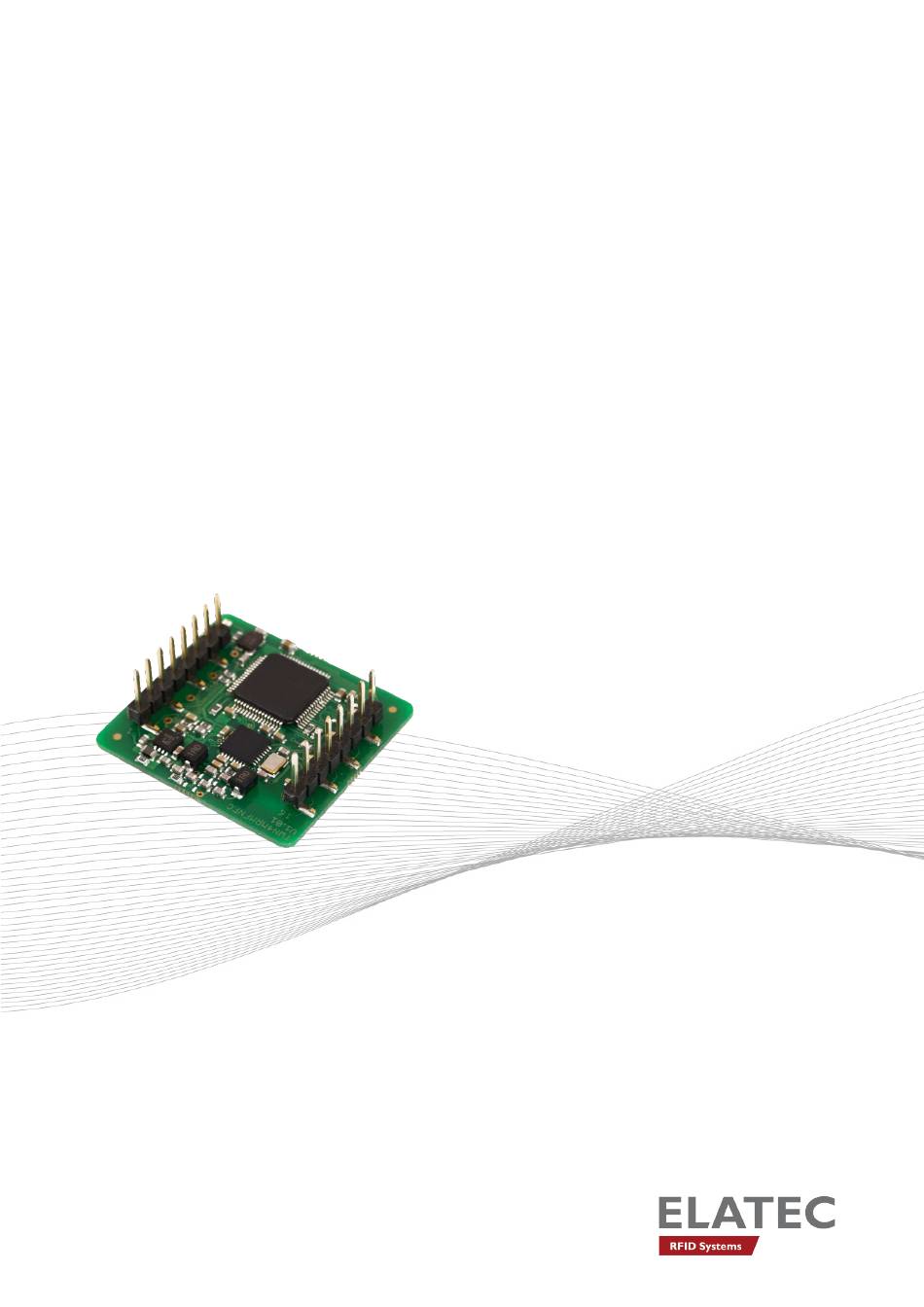

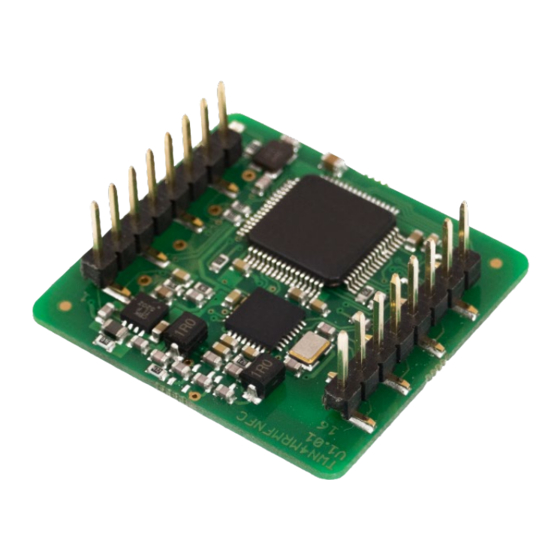

- Page 1 TWN4 MULTITECH HF MINI TWN4 Mini Reader MIFARE NFC INTEGRATION MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION .................................. 3 ABOUT THIS MANUAL ..............................3 ABOUT TWN4 MULTITECH HF MINI ..........................3 ELATEC SUPPORT ................................3 REVISION HISTORY ..............................3 SAFETY INFORMATION ..............................3 INTEGRATION INSTRUCTIONS ............................4 GENERAL ..................................4 LIST OF APPLICABLE RULES ............................4 SPECIFIC OPERATIONAL USE CONDITIONS ......................4 LIMITED MODULE PROCEDURES ..........................4... -
Page 3: Introduction
ELATEC technical documentation related to TWN4 MultiTech HF Mini, as well as the technical documentation related to the host device. In particular, the instructions and safety information given in the user manual of TWN4 MultiTech HF Mini should be read carefully and listed in the technical documentation of the host manufacturer as well, as soon as these instructions and safety information are required for a safe and proper use of the host device containing TWN4 MultiTech HF Mini. -
Page 4: Integration Instructions
GENERAL TWN4 MultiTech HF Mini may be installed in any host devices, as long as it is operated under the operational conditions stated in the user manual and other technical documents (e.g. data sheet). TWN4 MultiTech HF Mini is equipped with one integrated antenna. -
Page 5: Label And Compliance Information
ADDITIONAL TESTING, PART 15 SUBPART B DISCLAIMER TWN4 MultiTech HF Mini is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant, and the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification. -
Page 6: Compliance Statements
4 COMPLIANCE STATEMENTS TWN4 MultiTech HF Mini is in compliance with the EU directives and regulations as listed in the respective declaration of conformity (cf. TWN4 Mini Reader MIFARE NFC EC Declaration of Conformity). This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 7: Integrator And Host Requirements
Using a permanently affixed label, TWN4 MultiTech HF Mini must be labeled with its own FCC and IC identification numbers. In case this label is not visible anymore after integration of TWN4 MultiTech HF Mini in the host device, it is necessary to bring a label on the... -
Page 8: Appendix
Development Canada Apparatus (All Frequency Bands) For more information about this integration manual or TWN4 MultiTech HF Mini, go to www.elatec.com or contact ELATEC. © 2021 ELATEC GmbH – TWN4 MultiTech HF Mini integration manual DocRev1 – 08/2021 Page 8 of 9... - Page 9 Elatec reserves the right to change any information or data in this document without prior notice. Elatec declines all responsibility for the use of this product with any other specification but the one mentioned above. Any additional requirement for a specific customer application has to be validated by the customer himself at his own responsibility. Where application information is given, it is only advisory and does not form part of the specification.
