- Page 1 ® ® SciLog SciTemp Temperature Monitor & Sensor Installation, Operation, & Maintenance Instructions...
- Page 2 Parker Hannifin Corporation. Parker has a continuous policy of product development and although the Company reserves the right to change specification, it attempts to keep customers informed of any alterations. This publication is for general information only and customers are requested to contact our Process Filtration Sales Department for detailed information and advice on a product’s...
-
Page 3: Table Of Contents
Table of Contents: Precautions: ..............Error! Bookmark not defined. Calibration: ........................6 Installation & Start-Up ..................... 7 Maintenance & Cleaning: ....................7 Introduction: ........................6 ® SciTemp Temperature Sensor System Specifications: ..........8 Part A: SciTemp ® Temperature Sensor Hardware ............11 1.0 Overview: ........................ - Page 4 FOR CONTINUED PROTECTION AGAINST SHOCK HAZARD, CONNECT TO PROPERLY GROUNDED OUTLET ONLY. DO NOT REMOVE THE GROUND PRONG. CAUTION USE ONLY CLASS 2 LISTED AC/DC POWER SUPPLIES WITH THIS DEVICE. Parker dominick hunter # 070-017TOR, OR ITS EQUIVALENT IS RECOMMENDED.
- Page 5 équipement. DÉBRANCHEZ TOUJOURS cet équipement de la source de courant avant de nettoyer ou d’exécuter l’entretien. APPELEZ PARKER pour pièces détachées, renseignements et entretien. ATTENTION DÉBRANCHEZ TOUT COURANT DE CETTE UNITÉ AVANT DE FAIRE L’INSTALLATION, D’EFFECTUER L’ENTRETIEN, LE NETTOYAGE OU AVANT DE RETIRER LE FUSIBLE.
-
Page 6: Calibration
Parker customer service personnel will be able to serve you more efficiently if you have the following information: Serial number and model name of the equipment Installation procedure being used Concise list of symptoms ... -
Page 7: Installation & Start-Up
Warranty Country specific information can be found at: www.parker.com/termsandconditions Standards: EN 61326-1:2006, Class B EN 6100-3-2:2006 EN 6100-3-3:1995 +A1:2001 +A2:2006 EN 61010-1 Issued: 2001/03/01 Conforms to UL STD 61010-1:2012 Ed.3+ R: 29Apr2016 Certified to: CSA STD C22.2 No 61010-1-12 Ed.3+U1:U2 Installation &... -
Page 8: Scitemp ® Temperature Sensor System Specifications
Hardware Specifications – Monitor W: 6.0¨ (15.2 cm); Height 2.75¨ (7.0 cm); D: 5.5¨ (14.0 cm) Dimensions 1.5 lb (0.69 Kg) Weight Molded Plastic / Stainless Steel Enclosure 100-240 V, 60/50 Hz AC Adaptor, 12 VDC, 500 ma Output, Power Center positive. - Page 9 Specifications - Sensors 5 VDC provided by SciTemp ® Monitor. Power Choice of five sizes: Luer, 3/8” Barb, 1/2” Barb, 3/4” Tri-Clover (TC) Sanitary and 1” Tri- Fluid Connections Clover (‘Ladish’) Sanitary. Polysulphone meets USP Class VI and FDA 21 CFR 177.1520, all wetted materials made Wetted Materials with animal-free compounds.
- Page 10 SciDoc Documentation Software for PC SciTemp® Temperature Sensor System Documentation Software Package Excel spreadsheet with custom macros for data compilation. Includes Winwedge interface software. Sent to you ready to use. Complete process analysis with graphing of data Real-time verification and documentation of process parameters, with Differential Temperature calculated by the spreadsheet.
-
Page 11: Part A: Scitemp ® Temperature Sensor Hardware

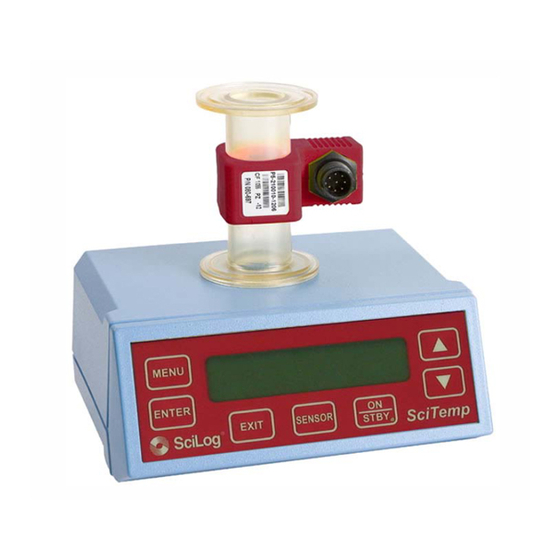

® Part A: SciTemp Temperature Sensor Hardware 1.0 Overview: The SciTemp Temperature Sensor System consists of two major components, the SciTemp ® ® Temperature Monitor, with its power supply, and the Disposable SciTemp ® Temperature Sensor flow cell, with its cable. The Monitor is a small desktop package with a backlit display and seven buttons for easy interface and menu selections. -
Page 12: Front Panel: Data Entry & Display
2.0 Front Panel: Data Entry & Display The front panel consists of a user interface, which includes an alphanumeric display and a membrane keypad to select operational modes and alarm settings. The display is a two line, 20 character, liquid crystal display (LCD). The display is backlit to allow easy viewing over a wide range of lighting conditions. -
Page 13: Back Panel: Interface Options
3.0 Back Panel: Interface Options ® The SciTemp Temperature Sensor back panel provides interfacing ports for: ® Temperature Sensor Sensors: Female 9 pin twist-lock, Disposable SciTemp labeled “Sensor T1, T2”. Analog and TTL Output: Female DB25, labeled “Output”. ... - Page 14 Pin Out of the DB25 female “Output” connector: Analog Outputs are from an 18 bit resolution A/D converter: For 4-20 ma output of Temperature at T1 (Analog 1), use pins 2 (4-20 -) and 14 (4-20 +). If excitation is needed in the loop, connect pin 1 (Vpwr) to pin 14 (4-20 +), and connect the output cable to pin 2 (4-20 -) and pin 15 (Gnd).
- Page 15 TTL Outputs: P1 Hi/Low Alarm: TTL 1 Pins 11 (Out0) and 13 (Gnd) P2 Hi/Low Alarm: TTL 2 Pins 24 (Out1) and 13 (Gnd) P3 Hi/Low Alarm: TTL 3 Pins 12 (Out2) and 13 (Gnd) TM or DP Hi/Low Alarm: TTL 4 Pins 25 (Out3) and 13 (Gnd) TTL outputs are either 0 or 5 VDC, and carry minimal current.
-
Page 16: Disposable Temperature Sensors
4.0 Disposable Temperature Sensors: Connector type Max flow rate * Max pressure Luer 1 liter/min 60 psi 3/8" Barb 8 liters/min 60 psi 1/2" Barb 17 liters/min 60 psi 3/4" TC 31 liters/min 60 psi 60 liters/min 60 psi 1” Ladish TC *At a 1.0 psi drop across the sensor Specifications for all SciTemp™... -
Page 17: Part B: Scitemp™ Temperature Sensor Monitor Software
® Part B: SciTemp Temperature Sensor Monitor Software 1.0 Software Overview: The SciTemp Temperature Monitor digitally displays inputs from up to two disposable ® SciTemp Temperature Sensors simultaneously, and displays the Differential ® Temperature. The Main Menu allows you to change the temperature units (C or F), the high and low analog range settings, adjust the baud rate and print time, as well as configure user- defined Hi/Low temperature alarms for both displayed values. -
Page 19: Main Menu
2.0 Main Menu: SUMMARY: This menu allows the setting of various parameters as they relate to your process. Use “Menu” to scroll through the menu, the up/down arrow keys to scroll through choices, and “Enter” to select the choice. MAIN SCREEN: Displays both temperatures, T1 and T2 to a resolution of 0.01 TEMPERATURE UNITS: Use the up/down arrows to select between C (Celsius) and F (Fahrenheit). -
Page 21: Custom Calibration Menu
3.0 Custom Calibration Menu: SUMMARY: This menu shows the settings used for performing a custom calibration of a given disposable temperature sensor. This allows you to calibrate the unit using a different temperature standard using a NIST traceable thermometer if you wish. This procedure adds a modification to the existing Factory Calibration, it does not replace it, and it can be reset if needed. -
Page 22: Scitemp™ Temperature Sensor Printout Format
® 4.0 SciTemp Temperature Sensor Printout Format RS-232 Output as sent to Serial Printer or Windows HyperTerminal: 1/28/08 0.14 02/01/08; SciTemp v0.14; UNITS=C; ALARMS: HT1= 0.00; LT1= 0.00; HT2= 0.0 0; LT2= 0.00; Sensor 1 ID=A1-210151-0108; CF= 0.16; CCF= 0.00; Sensor 2 ID=A1-210186-0108;... -
Page 23: Data Collection
5.0 Data Collection Summary: The SciTemp ® Temperature Monitor has two serial ports. The serial port which is labeled “Pinter / PC,” is used for RS-232 serial communication with a PC or serial printer. SciTemp ® has made available a software package that includes an Excel spreadsheet with custom macros that is automatically populated when data is received. -
Page 24: Scitemp™ Temperature Sensor Data Collection Software
® 5.1 SciTemp Temperature Sensor Data Collection Software: SciTemp ® has made available a software package that captures the data output of the SciTemp Temperature Monitor and places it in an Excel spreadsheet in real time. This ® spreadsheet also populates a graph to aid you in the analysis of your process. It consists of a copy of WinWedge32 and a customized spreadsheet with built in macros. - Page 25 Choose the Com Port you have the SciTemp ® Temperature Monitor connected to. Click on the OK button and WinWedge32 will start, showing itself as an icon in your system tray. WinWedge Icon You are then presented with the next screen Enter all of the appropriate Operator Information in this dialog box and click on “OK”.
- Page 26 When ready, turn on the SciTemp ® Temperature Monitor, pressing the “On / Stby” button, or connect the disposable temperature sensor. The monitor will load the calibration data from the sensor, and place that information in the spread sheet. All remaining data generated will automatically be placed in the cells of the spreadsheet, and the charts populated with the same data.
- Page 27 You may, of course, create your own charts or modify those included by adding trend lines, changing titles, etc. While the Data worksheet cells are protected, the charts are not with this purpose in mind. When you are finished with a run, your screen will look similar to this one: Click on File-Save as: and choose an appropriate file name based on your needs.
-
Page 28: Pc Hyperterminal Settings
5.2 PC HyperTerminal Settings: Temperature Monitor to PC: PC communications via the Serial Port labeled “Printer ® SciTemp / PC” requires a SciTemp ® RS-232 Cable. NOTE: When you are not using the SciTemp ® printer, this allows process data to be “dumped” into your PC for archiving. The list of settings below must match those in Serial section of the SciTemp ®... -
Page 29: Appendix A: Sensor Performance Data
Appendix A: Sensor Performance Data SciTemp Sanitization Protocol Sanitizing Conc. Temp. Pressure Contact Sani-Cycles Agent Limit º C Time, Min 0.10 N 20-30 0 - 10 15-30 NaOH 0.50 N 20-30 0 - 10 15-30 NaOH 500 ppm 20-30 7 - 8 0 - 10 15-30 NaOCl... - Page 32 Parker Hannifin Manufacturing Ltd Parker Hannifin Corporation Bioscience Division - EMEA Bioscience Division – N.A. © 2015 Parker Hannifin Corporation. All rights reserved. Durham Road 2340 Eastman Avenue Birtley, Co. Durham Oxnard, California, USA 93030 DH3 2SF, England toll free: 877 784 2234...
