Page 2

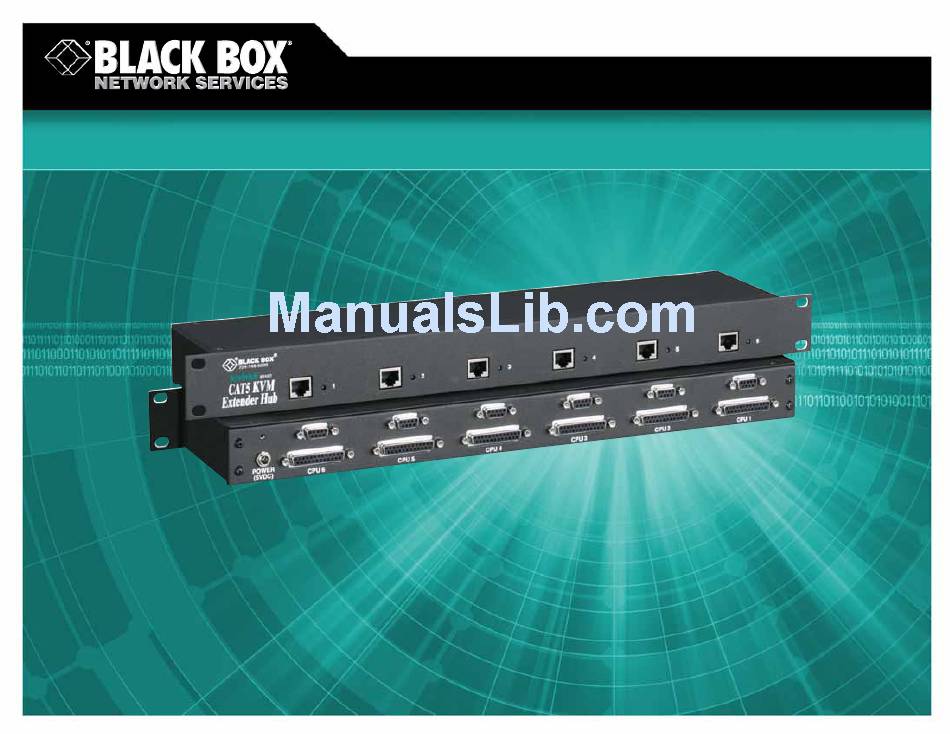

We offer seven varieties of extender hubs. The 6- and 12-port standard models (ACU1006RA and ACU1012RA) carry KVM signals only and support only one user station per CPU.
Compatibility — Video: VGA, SVGA, XGA, XGA-2, or RGsB (sync on green), although if your system has monitor ID-bit requirements, you might need to call Black Box for technical support; Keyboard: IBM PC/AT or PS/2 compatible (PC/AT types require connector adapter);...
Page 4
Monitor: (6) HD15 F; Audio I/O: (12) 3.5-mm stereo sockets; Serial: (6) DB9 F blackbox.com Indicators — ACU1006RA, ACU1012RA, ACU1006DRA, ACU1006SRA, ACU1006DSRA, ACU1006VRA, ACU1006DVRA: Front-mounted LEDs (1 for each port) for power and link integrity; ACUREM, ACUSREM, ACUMREM, ACUVREM, ACUWREM, ACUREMSW, ACU1006MRA, ACU1006MRVA: None Temperature Tolerance —...
TIA/EIA-568B, to run from your hub to your remote unit. (Bulk CAT5 cable should be terminated with high-quality RJ-45 plugs.) To use Category 5e or Category 6 cable, call Black Box for technical support. • CPU extension cables. • Serial extension cables.
