Summary of Contents for Kogan KAGVNTDRY7A

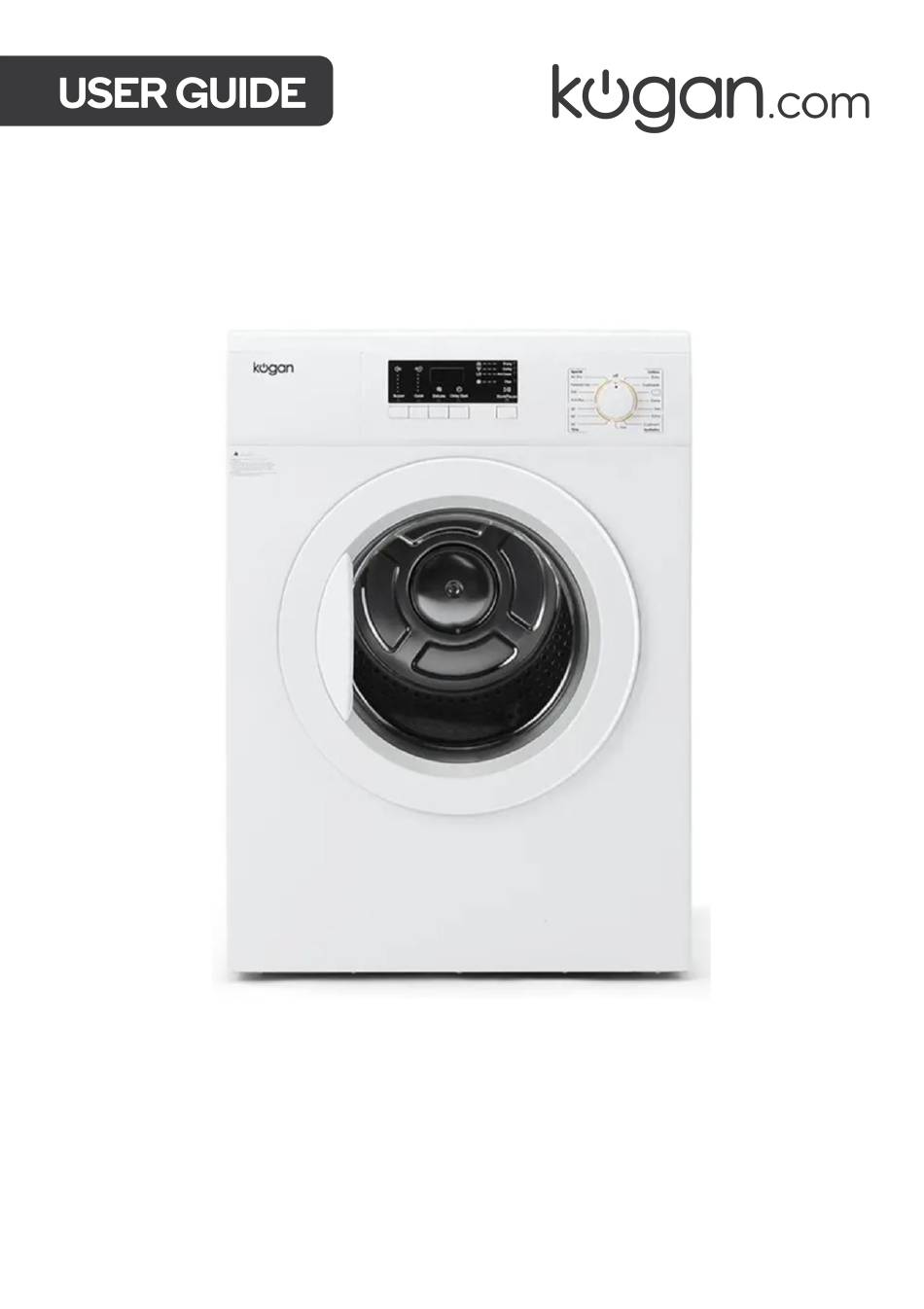

- Page 1 7KG VENTED DRYER KAGVNTDRY7A...
-
Page 3: Safety And Warnings
Do not attempt to repair this product yourself. If the product or its power supply experiences any malfunction or damage, cease use immediately and contact Kogan.com for support. • This appliance is not intended for use by persons (including children) with reduced... - Page 4 Do not allow lint to build up around the tumble dryer. • The power cord should only be replaced by a service agent authorised by Kogan.com in order to avoid a hazard. • Should the appliance need to be moved, it must be transported vertically.
- Page 5 Usage conditions and restrictions This appliance is intended for indoor household use only. It is not intended for industrial, commercial or trade use. Do not use it outdoors. Do not use it for anything other than its intended purpose (drying domestic quantities of washing) and only use it as described in this manual.
- Page 6 This appliance contains no user-serviceable parts. If it suffers any failure or damage, cease immediately and contact Kogan.com for support after consulting the Troubleshooting section of this user guide.
- Page 7 OVERVIEW Control panel Drum light Filter Adjustable feet Thermostat reset button Side vent outlet Vent pipe cover Rear vent outlet...
- Page 8 Control Panel Special Cottons Air dry Extra Cupboard+ Freshen-up Silk Anti-bac Damp Iron Extra Cupboard Iron Synthetics Time Buzzer Indicator lights • Quick Drying • Delicate Cooling • Delay Start • Display Filter Start/Pause Program selector dial...
-
Page 9: Installation
INSTALLATION Location • It is recommended that, for your convenience, the machine is positioned close to your washing machine. • During operation, the tumble dryer will expel a certain amount of warm, moist air that should be removed from the room as quickly as possible to prevent condensation. - Page 10 Level adjustment When pushing down on the edges of the dryer’s top plate, the machine should not move at all. If the machine rocks, adjust the feet. Loose Locked High Adjustable foot • Loosen the locknuts. • Rotate the adjustable feet clockwise to lower the dyer. •...
- Page 11 Installing the vent hose To accommodate for different dryer installations, the supplied vent hose can be installed into one of two different vent outlets. One is located on the rear of the dryer, the other is on the left-hand side. •...
-
Page 12: Operation
OPERATION Before First Use • Ensure that electrical connection complies with the specifications found on the dryer’s rating plate. • Remove the polystyrene block and any other packaging material from the drum. • Before using your tumble dryer for the first time, we recommend that you place a few damp cloths inside the appliance and dry for 30 minutes. - Page 13 Selecting a Program Turn the program selector dial to the required program. The corresponding light starts to flash. The program will automatically be switched off if there is no user input for 10 minutes. The program selector dial is divided into four sections: cottons, synthetics, time and special. Special Cottons Extra...
- Page 14 Program Option Buttons Depending on the program, different functions can be combined. These must be selected after choosing the desired program and before pressing the Start/Pause button. When these buttons are pressed, the corresponding indicator lights come on. Pressing the button again will cancel the option.
- Page 15 Incorrect option selection: If you select an option that is not compatible with the program you have selected, the display shows ErS (error). This code will also be displayed during operation if you press one of the option buttons or the program selector. Start/Pause: Press this button to start the dryer after having selected the program and the options.
- Page 16 Thermostat Reset If during operation, the heating element isn’t working, the manual thermostat may need to be reset. To perform a thermostat reset follow the below procedure: • Turn the program selector dial to the “Air Dry” position and press the start button. •...
- Page 17 Modifying the Program To change a program which is running, first cancel it by turning program selector dial to “off”. Select the new program and press the “Start” button. Suitable Items Never tumble dry the following particularly items: net curtains, woollen items, silk fabrics with metal trim, nylon tights, bulky materials such as anoraks, blankets, sleeping bags, feather quilts and any items containing rubber foam or materials similar to rubber foam.
- Page 18 Maximum Loads Try to always load the maximum capacity of the machine as small loads are uneconomical. Use the below as a guide to help determine the correct load capacity for the type of items you are drying: • Cotton, linen: drum full but not too tightly packed. •...
- Page 19 Drying Program Max load Section Course Description of program 6 kg 7 kg Drying bathrobe, towelling towel, Jeans, Extra 6 kg 7 kg work clothes. Drying bathrobe, towelling towel, Jeans, Cupboard+ 6 kg 7 kg work clothes. Cottons 6 kg 7 kg Drying shirt, T-shirt, cotton trousers Damp...
-
Page 20: Cleaning And Care
CLEANING & CARE Disconnect the appliance from the power outlet before you perform any cleaning or maintenance. Cleaning Interior & Exterior of Dryer • Do not clean the dryer by directly spraying water onto it. • Do not clean using benzene, thinner, alcohol or acetone as this may cause discoloration, deformation, damage, electric shock or fire. - Page 21 Cleaning the filter • Open the loading door. • Remove the lint filter by pulling upwards and out. • Clean lint, fibre and cotton ravelling by hand or with a soft piece of cloth. • Close the lint filter and place it back into its housing. Note: Ensure the lint filter is cleaned after every cycle and whenever prompted by the dryer.
-
Page 22: Specifications
SPECIFICATIONS Dryer Capacity Power (standby mode) 0.42W Energy consumption at full load 5.75kWh Program time at full load 217min Dimensions (WxDxH) 595x555x850mm Depth (with loading door open) 1030mm... -
Page 23: Troubleshooting
TROUBLESHOOTING Some issues are caused due to lack of simple maintenance or oversights, which can be solved easily. Before contacting help.Kogan.com for support, please carry out the checks listed below. If the dryer encounters a problem during operation, the Start/Pause indicator light will flash. - Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com.
