Related Manuals for Kogan KAGVNTDRY7A
Summary of Contents for Kogan KAGVNTDRY7A

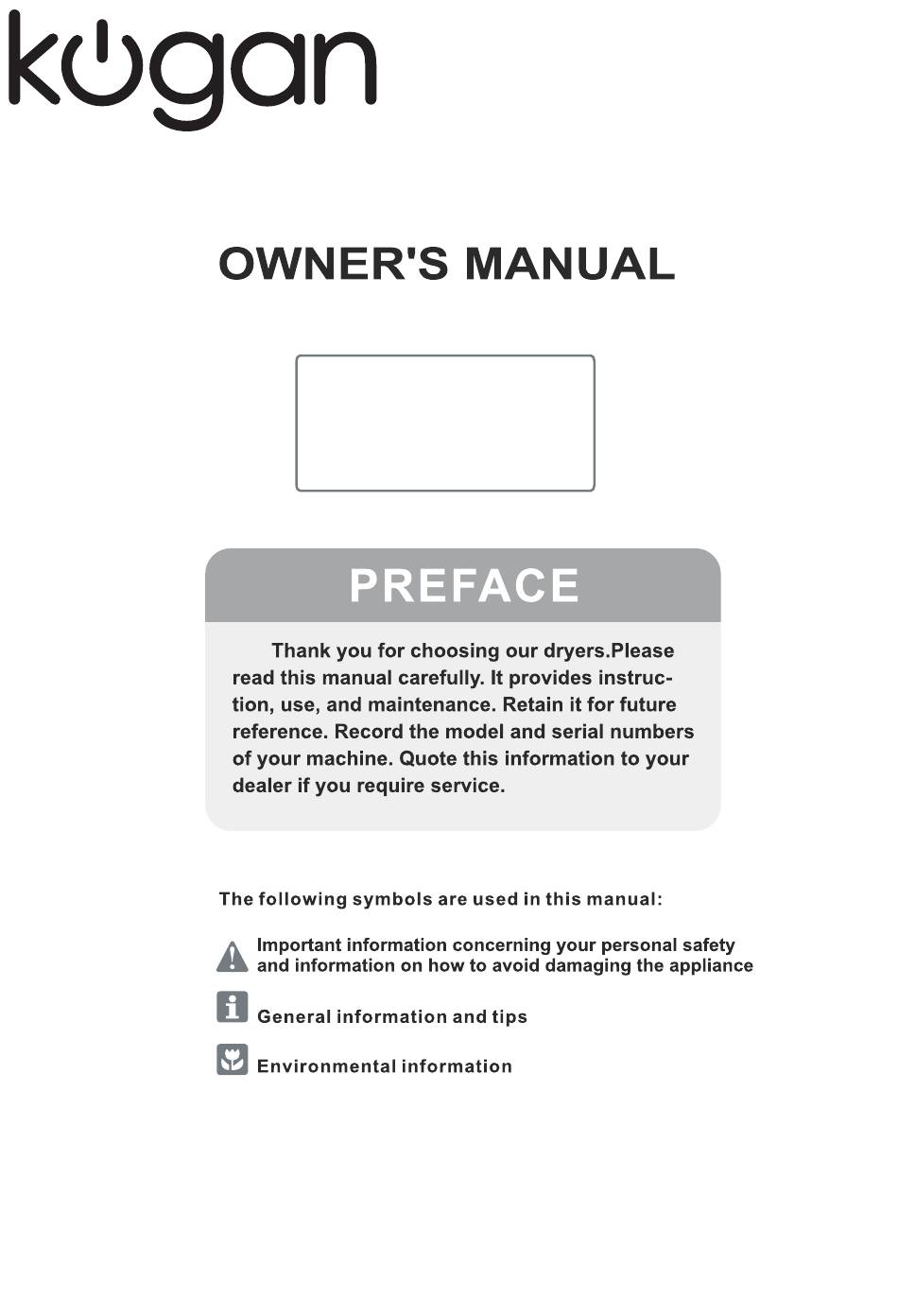

- Page 1 Kogan 7KG Vented Dryer Applicable Models KAGVNTDRY7A Thank you for choosing our dryers. Please read this off OWNER’S MANUAL carefully prior to using and keep it for further reference.
- Page 2 Read and understand thoroughly this safety instructions before use. The items indicated here are very important safety precautions, which must be followed. Any failure and losses caused by ignoring the above mentioned items and cautions mentioned in the operation and installation instruction are not covered by our warranty and any liability.
- Page 3 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. The package materials may be dangerous to children.
-
Page 4: Control Panel
1.Control Panel 2.Drum Light 3.Filter 4.Adjustable Feet 5.Thermostat reset button 6.Side Vent offutlet 7.Vent Pipe Cover 8.Rear Vent offutlet Control panel Ensure that electrical connections comply with the installation instructions. Open the door(see picture). Remove the polystyrene block and any material Place the laundry in the drum, from the drum. - Page 5 Note: “ ” is for the “standard cotton programme”. The programme is suitable to dry normal wet cotton laundry and it is the most efficient programme in terms of energy consumption for drying wet cotton laundry. The appliance detects the moisture in the load and automatically adjust the drying time for optimal drying. Just select the programme according to fabrics.
-
Page 6: Thermostat Reset
The display shows the following informtion: After you have selected the programme, its duration (in hours and minutes) appears on the display . It is calculated automatically on the basis of the maximum load accepted for each type of fabric and of the required degree of drying. -
Page 7: Modifying The Programme
Modifying the programme To change a programme which is running, first cancel it by turning programme selector dial to “off ”. Select the new programme and press the “Start” button. Never tumble dry the following :Particularly delicate items such as net curtains ,woolen ,silk ,fabrics with metal trim, nylon tights ,bulky materials such as anoraks ,blankets, eiderdowns, sleeping bags, feather quilts and any items containing rubber foam or materials similar to rubber foam . - Page 8 Extra Cupboard+ Anti-Bac 1.5kg 1.5kg If the weight of the laundry is less than 1 kg, it is more efficient to dry to select "Time controlled Drying" programme. You must DISCONNECT the appliance from the electricity supply, before you can carry out any cleaning or maintenance work.
- Page 9 If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. Dryer Model KAGVNTDRY7A Dry Capacity (kg) Electrical connection Voltage-Overall...
- Page 10 Note : All the above data in the table came out base on “ ” which tested according to En61121:2013 standard. These data may be different because of different laundry type, residual moisture, environmental conditions and voltage fluctuation. It is recommended that, for your convenience, the machine is positioned close to your washing machine. Whilst drying, the tumble dryer will expel a certain amount of warm, very moist air, and this should be removed from the room as quickly as possible to prevent condensation.
-
Page 11: Packaging Materials
Advice: If the hose is long and the room temperature low, the moisture might condense inside the hose. This is an unavoidable natural phenomenon. To prevent this water from lying in the hose or flowing back into the tumble dryer, it is advisable to drill small hole (dia.3 mm) in the lowest point of the hose and to place a small container below it. -
Page 12: Ecological Hints
household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. - Page 13 Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.
