E6L Engine: Replacing the PSU Bay
This section provides instructions for replacing the PSU (Power Supply Unit) bay in the E6L Engine:

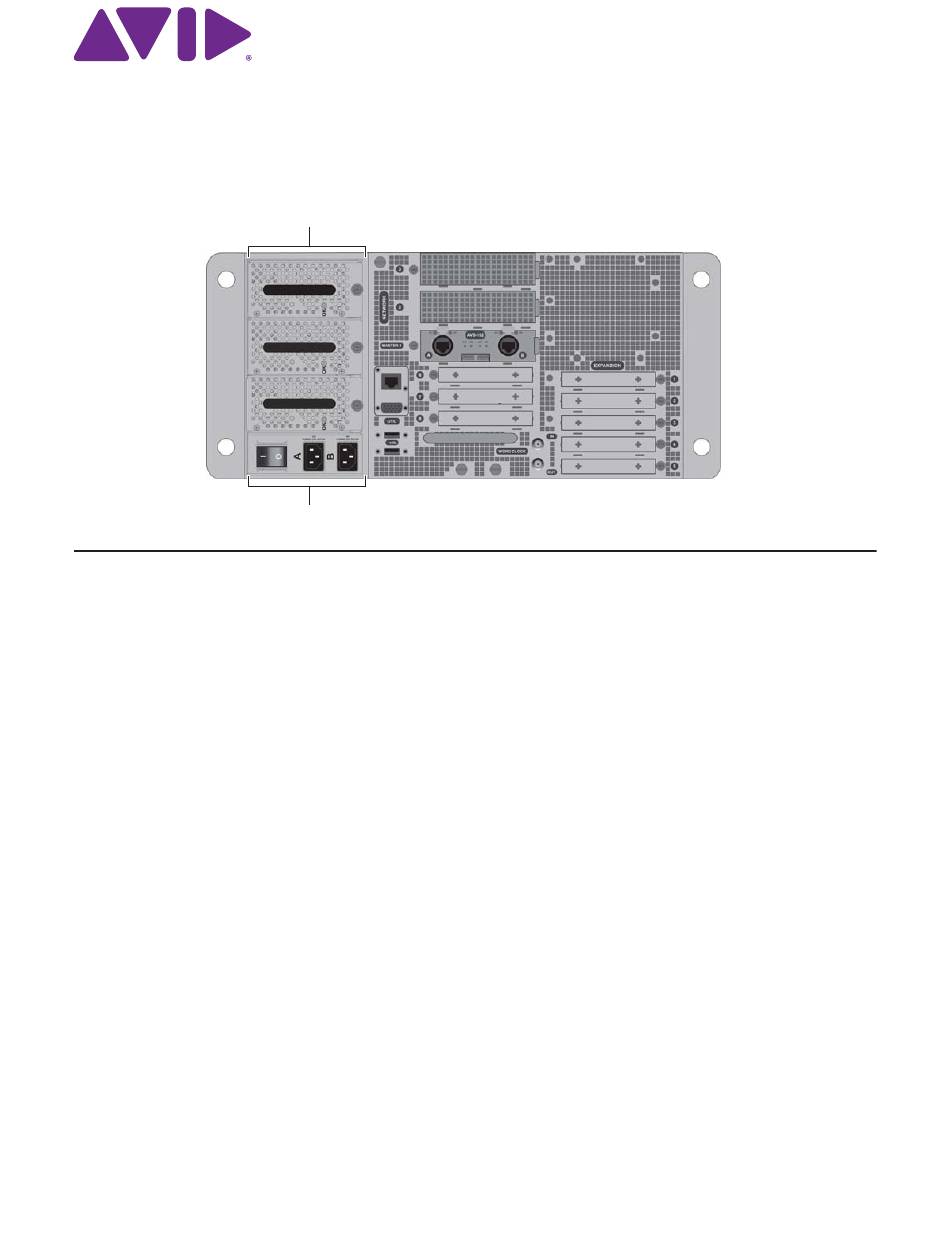

VENUE E6L Engine PSU bay
Before you Begin
Make sure to collect all the following items before beginning the procedure.
Required Tools and Items
• 1x #2 Phillips Screwdriver
• 1x 5/16-inch (8mm) socket wrench
• Anti-Static wrist strap (not included)
• Small cups or other containers to hold and organize the different types of fasteners as you remove them from the unit
• Table or other stable, flat surface large and strong enough for the E6L engine
• Recommended: Pen and lightweight tape to label cables as you disconnect them (to ensure correct re-installation)
E6L Engine: Replacing the PSU Bay
9329-65861-00 REV A
1
