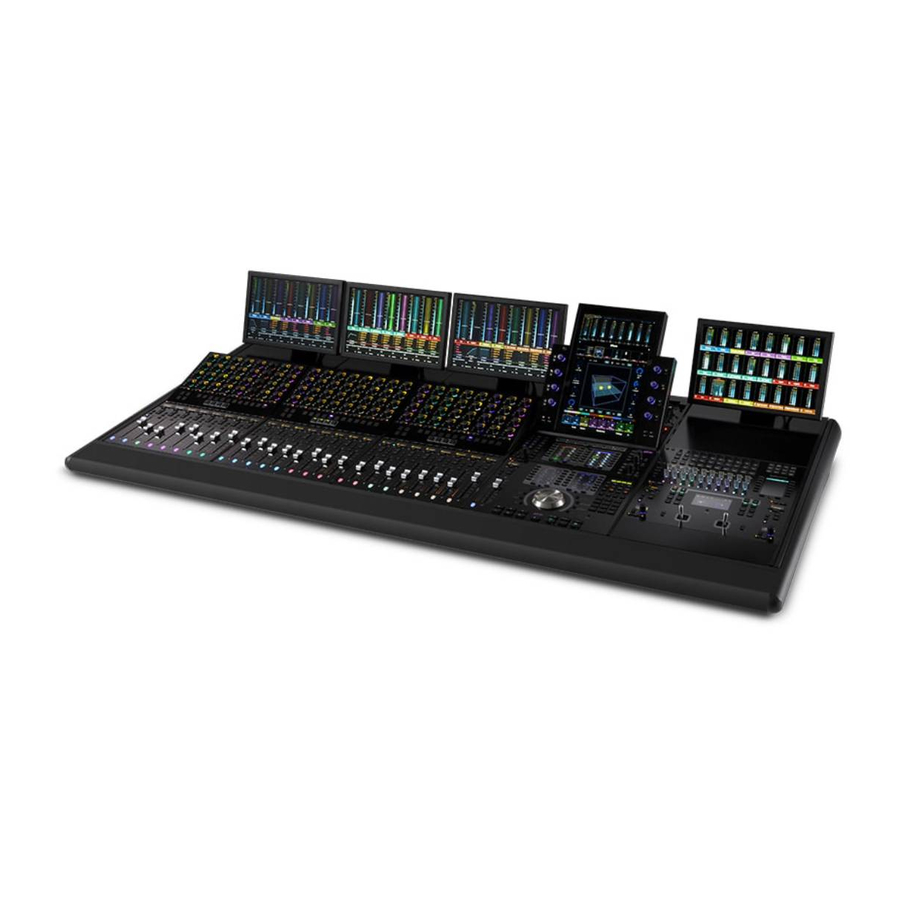

Avid Technology S4 Installation Manual
  1. Manuals
  2. Brands
  3. Avid Technology Manuals
  4. Music Mixer
  5. S4
  6. Installation manual

Avid Technology S4 Installation Manual

Hide thumbs Also See for S4:
Table of Contents

Advertisement

Quick Links

Download this manual
Avid S4 Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avid Technology S4

Summary of Contents for Avid Technology S4

  • Page 1 Avid S4 Installation Guide...
  • Page 2 Legal Notices © 2019 Avid Technology, Inc., (“Avid”), all rights reserved. This guide may not be duplicated in whole or in part without the written consent of Avid. For a current and complete list of Avid trademarks visit: http://www.avid.com/legal/trademarks-and-other-notices Bonjour, the Bonjour logo, and the Bonjour symbol are trademarks of Apple Computer, Inc.
  • Page 3 A grounding type plug has Avid Technology Inc., has been authorized to apply the appropriate NRTL mark on two blades and a third grounding prong. The wide blade or the third prong are pro- its compliant equipment.

  • Page 5: Table Of Contents

    ............. 34 Installing S4 Supporting Software .
  • Page 6 Appendix B. Expanding an S4 System ........
  • Page 7 Part I: Introduction...

  • Page 9: Chapter 1. Introduction

    This guide explains how to assemble the system, including how to install modules and how to configure your S4 system. Before You Begin •...

  • Page 10: Overview Of Installation

    • System Restore USB Flash Drive • Power Adapter cable for Master Module Do not use the System Restore drive for anything other than S4 System Restore software. Do not use this drive to store audio files or any other data or software.

  • Page 11: System Requirements And Compatibility

    Product Activation and Software License Activation Activate your S4 system software online as instructed later in this guide. You must use the System ID on the included S4 System Software Activation Card to activate and download all S4 system software and documentation. You will also need to activate your S4 software license after installing the software.

  • Page 12: About This Guide

    About This Guide This guide explains how to assemble S4 and uses the following to identify different elements of the system. • The names of , and that appear on-screen are in a different font. Commands Options Settings • The names of switches and keys on the control surface are shown in bold (such as...

  • Page 13: Chapter 2. Modules And Configuration Overview

    The Master Module is the primary module of the system, providing the Touchscreen, two banks of Soft Keys, a monitoring section and other controls. Each system must have one Master Module. In S4 systems the Master Module supports up to 24 fader strips and can control up to two connected workstations.

  • Page 14: Channel Modules

    Channel Modules The Channel Strip Module provides the fader strips of the system. S4 systems support a maximum of three Channel Strip Modules. Channel Strip Module Each Channel Strip Module (CSM) provide a lower fader section, central function select section, and an upper knob section. The lower fader section has eight motorized faders, eight displays, multiple switches and indicator LEDs.
  • Page 15 Display Module The S4 frame is designed to ensure adequate ventilation and cooling for the Display Module. If you are installing a Display Mod- ule in a custom (non-Avid) frame, be sure that the frame does not obstruct the Display Module air vents. Any unit that has been installed in a custom frame will have its warranty voided if the fault is found to be due to insufficient ventilation.

  • Page 16: Module Layout

    Channel, Option, and the Master sections can be arranged in almost any order, left-to-right, with only one restriction: the Master Module cannot be installed at the far left. For example, for an S4 16-fader system in a 3-foot frame the master section modules can be located in two possible locations, as shown below.
  • Page 17 Part II: Hardware Assembly...

  • Page 19: Chapter 3. Hardware Assembly

    Chapter 4: Hardware Assembly Make sure you have already determined your desired module arrangement (see “Module Layout” on page 10). Assembling your S4 is simple and involves the following steps: • Installing the Frame • Positioning Cables • Connecting and Installing Modules •...

  • Page 20: Overview Of Installation

    • Install Display Modules, if any. About These Instructions The following instructions use the example of an expanded S4 8-fader system (see Figure 1). This configuration provides 8 fader strips, a standard master section, plus optional Display, Joystick, and Knob modules. In these installation instructions: •...

  • Page 21: Installing The Frame

    3- and 4-foot. Also, built-in power and Ethernet cables are not show in all images. If you are installing S4 into custom furniture you can remove the side covers (end caps). Use an M4 hex driver to remove the five M4x6 fasteners from each side cover.

  • Page 22: Positioning Cables

    • Cable ties secure cables to the bottom of the chassis. If necessary, cut one or more cable ties that are closest to the ends of ca- bles, then route the cables between chassis as needed. • A bag of new cable ties is also included with the frame. Use these to re-secure cables in their new chassis location(s). S4 Installation Guide...

  • Page 23: Connecting And Installing Modules

    Connecting and Installing Modules Install all modules beginning with the left-most chassis. Begin with the slot/module closest to the front (slot 1). In our example configuration we are installing a Channel Strip Module in chassis 1. If your left-to-right module arrangement differs from our example configuration, use the instructions in the following sections as appropriate: •...
  • Page 24 • If you are not installing a CSM in the next chassis, see “Installing Master Section Modules” on page 19 or “Installing Option Modules” on page 22 as appropriate for your chassis 2. • Refer back to these CSM instructions if you are installing one or more additional CSMs. S4 Installation Guide...
  • Page 25 Installing Master Section Modules Installing the Automation Module is nearly identical to installing a Channel Strip Module. Installing the Automation Module To install the Automation Modules: If you have not already done so, unpack the Automation Module and Master Module. Remove the large black plastic covering from the opening in the back of the chassis where you plan to install the Master Module.
  • Page 26 After connecting Ethernet to the primary (side) Ethernet port of the Master Module, do either of the following (see Figure 12): • Recommended: If you are not connecting S4 to an existing DHCP Server on your network (and/or if connecting the S4 switch directly to one or more workstations) connect the second chassis Ethernet cable to Ethernet port 2 (right) on the back panel of the Master Module.
  • Page 27 Install the connected Master Module into its chassis. The Master Module occupies two slots. Make sure to orient it correctly, seating it fully against the top edge of the Automation Module. Do not fold or pinch any cables. Pay special attention to the connectors for power, Ethernet, and Talkback (optional). When placing the Master Module into the frame, guide cables around (not over) internal components such as the PDU or switch.
  • Page 28 Make sure the module sits fully into the frame and not on top of any other modules, panels, or cables Unpack the next Attention Knob Module (or whichever Option module you want in slot 3) and connect power and Ethernet. S4 Installation Guide...
  • Page 29 • Newer Display Module packages include two brackets, one smaller (S6) bracket that lets you position Display Modules lower and closer to the back of the frame, and a larger (S4) bracket that lets you mount them higher and closer to the operator. If your Display Module packages include both brackets it is recommended to use the larger S4 brackets.

  • Page 30: Fill Panels, Compression Panels, And T-Strips

    Fits behind or in front of a Master Joystick, Master Post, or Knob Module. Mini Fill Panel Same size as Master Joystick, Master Post, and Knob Modules. Fill Panel Small Figure 19. Fill Panels: Mini Fill Panel (left) and Fill Panel Small (right) S4 Installation Guide...
  • Page 31 For sealing master section chassis (1x included in each Frame package) Master Figure 21. Compression Panels: CSM (left) Channel (center) and Master (right) Installing Compression Panels is the same for S4 and S6 (in the following images S6 is shown). Chapter 4: Hardware Assembly 25...
  • Page 32 To install Channel Compression Panels (for Option Modules): Take the Channel Compression Panel and install it in the Option Module chassis as done for other Compression Panels.  S4 Installation Guide...

  • Page 33: Connecting Ethernet And Power

    Connect one end of the single Ethernet cable (included in the Frame package) to one of the Cat53 Ethernet ports on the back of the S4. If you plan on connecting S4 directly to two workstations, connect another Ethernet cable (not included) to the other Ethernet port on the back of the S4.

  • Page 34: How To Proceed

    Identify the IEC power cable included in the Frame package appropriate for your region (UK, EU, or US). Connect one end to the power connector on the back of the S4 and connect the other end to an AC source.

  • Page 35: Part Iii Software Installation

    Part III: Software Installation...

  • Page 37: Chapter 4. Confirm Installation And Update Software

    • Start up the system for the first time to confirm power and Ethernet (see “Starting Up and Shutting Down” on page 31). • Activate and Register your purchase (see “S4 Software Activation” on page 32). • Acquire updated S4 software (see “Logging in as Administrator and Updating Master Module Software” on page 32). Required Materials The following are required to install the Master Module software to your S4 system: •...

  • Page 38: S4 Software Activation

    S4 Software Activation You must activate your S4 to be able to download required S4 software, as described below (and as described in this article on our Knowledge Base: http://avid.force.com/pkb/articles/how_to/S6-Activation-Card (Required) Use the System ID on the included S4 System Software Activation Card to activate your Avid account for S4: https://my.avid.com/products/Hardware/Console...

  • Page 39: Activating Your Software License

    About Online Activation Offline Activation Make sure you have the System ID number and Activation ID code (from your S4 product in your Avid account), installed the new software, and restarted your system. To activate Master Module software using offline activation: After the system has restarted, the Software License Activation screen appears.

  • Page 40: Installing S4 Supporting Software

    Windows), documentation, and other resources from the My Products and Subscriptions section. You can download these components directly to the workstation(s) you plan to use with S4, or to a USB flash drive. If necessary, insert the USB drive containing the downloaded EUCON_WorkstationUnifiedInstall into a USB port on your workstation.

  • Page 41: How To Proceed

    • To uninstall all User Preferences, select Uninstall User Preferences (your appsets will not be removed). Click Continue (Mac) or Next (Windows). How to Proceed Refer to the electronic S4/S6 Guide.pdf included with S4 and S6 documentation downloads to configure the surface and learn how to use S4. You should also check out the...
  • Page 42 S4 Installation Guide...

  • Page 43: Part Iv Reference

    Part IV: Reference...

  • Page 45: Appendix A. Reference

    Appendix A: Reference This appendix provides the following: • Utility Test Mode for Modules • Module Specifications (Power and Weight) • Dimensions Utility Test Mode for Modules If you want to run diagnostic test on any module you can enable Utility Test mode on that module. Note that after running Utility Test mode on a module, the module will have to be rebooted from the page on the Master Module.

  • Page 46: Module Specifications

    For complete specifications on modules, see the guide for each module (available for download from your Avid account). The following table lists average and maximum power usage for all S4 and S6 modules. Not all modules are supported on all sys- tems, as noted.

  • Page 47: Weights

    Weights The following tables list the weight of S4 modules and frame components. Modules Table 1. Weight of Individual Modules Module Weight Automation Module 5.02 lbs (2.28 kg) Channel Strip Module 10.85 lbs (4.9 kg) Display Module 3.52 lbs (1.60 kg) Knob Module 4.1 lbs (1.84 kg)

  • Page 48: Dimensions

    The diagrams below show total width including Side Covers (end caps). If your 3-bay frame does not include Side Covers, subtract 40 mm (1.6 in) from total frame width. 962.0 mm 37.9 in 731.2 mm 28 in 11.5 mm 0.5 in 141.7 mm 5.6 in 57.9 mm 2.3 in S4 3 Bay dimensions S4 Installation Guide...
  • Page 49 The diagrams below show total width including Side Covers (end caps). If your 4-bay frame does not include Side Covers, subtract 40 mm (1.6 in) from total frame width. 1259.0 mm 49.5 in 731.2 mm 28 in 12.1 mm 0.5 in 141.7 mm 5.6 in 59.5 mm 2.3 in S4 4 Bay dimensions Appendix A: Reference 43...
  • Page 50 The diagrams below show total width including Side Covers (end caps). If your 5-bay frame does not include Side Covers, subtract 40 mm (1.6 in) from total frame width. 1556.0 mm 61 in 731.2 mm 28 in 12.1 mm 0.5 in 141.7 mm 5.6 in 59.5 mm 2.3 in S4 5 Bay dimensions S4 Installation Guide...

  • Page 51: Appendix B. Expanding An S4 System

    This section explains how to add modules to an S4 system. S4 systems are available in three different frame widths (3-, 4-, and 5-foot). Base configurations all include one empty chassis (“bucket”) for system expansion. S4 systems can be expanded in the following ways: Up to a maximum of three Channel Strip Modules can be installed (requires a 4- or 5-foot frame).

  • Page 52: Updating The Surface Settings

    Wait until the Master Module has completely shut down before proceeding. Always shut down the Master Module from the About page before powering down the system! Turn off S4 by pressing its back panel power switch to the Off position. S4 Installation Guide...

  • Page 53: Removing T-Strips, Compression Panels, And Fill Panels

    Figure 2. Removing a Channel Compression Panel (left) and a Master Compression Panel (right) To remove Fill Panels: Lift Fill Panels out of their slots.  Appendix B: Expanding an S4 System 47...

  • Page 54: Installing Modules

    After adding or re-arranging modules you must update the surface configuration. Power up the system, navigate the touchscreen , then follow the on-screen instructions to configure your surface. Settings > Surface For step-by-step instructions to configure your module arrangement, designate Master Meter Display Modules and Attention Track Expand Modules, see the S4 Guide.pdf. S4 Installation Guide...

  • Page 55: Appendix C. Compliance

    Appendix C: Compliance Environmental Compliance Disposal of Waste Equipment by Users in the European Union This symbol on the product or its packaging indicates that this product must not be disposed of with other waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

  • Page 56: Emc (Electromagnetic Compliance)

    Cet appareil numérique de la Classe A respecte toutes les exigences du Règlement sur le material brouilleur du Canada. CE Compliance (EMC, Safety and RoHS) Avid is authorized to apply the CE (Conformite Europenne) mark on this compliant equipment thereby declaring conformity to EMC Directive 2014/30/EU, Low Volt- age Directive 2014/35/EU and RoHS Directive 2011/65/EC. S4 Installation Guide...

  • Page 57: Safety Compliance

    This equipment has been tested to comply with safety certifications in accordance with: UL 60065: 2015, 8th Ed., CAN/CSA C22.2 No. 60065:16, EN 60065:2015-A1/A11:2017, IEC 60065:2014. Avid Technology Inc., has been authorized to apply the appropriate NRTL mark on its compliant equipment. Power Safety Rating...
  • Page 58 CAUTION: For continued protection against risk of fire, replace only with same type and rating of fuse. ATTENTION: Pour ne pas compromettre la protection contre les risques d’incendie, remplacer par un fusible de même type et de même caractéristiques nominales. S4 Installation Guide...
  • Page 60 Avid Technical Support (USA) Product Information 75 Network Drive Visit the Online Support Center For company and product information, vis- Burlington, MA 01803 at www.avid.com/support it us on the web at www.avid.com...
