Strata
urniture
Adriana Instructions
1A
Watch our assembly videos at www.stratafurniture.com/videos

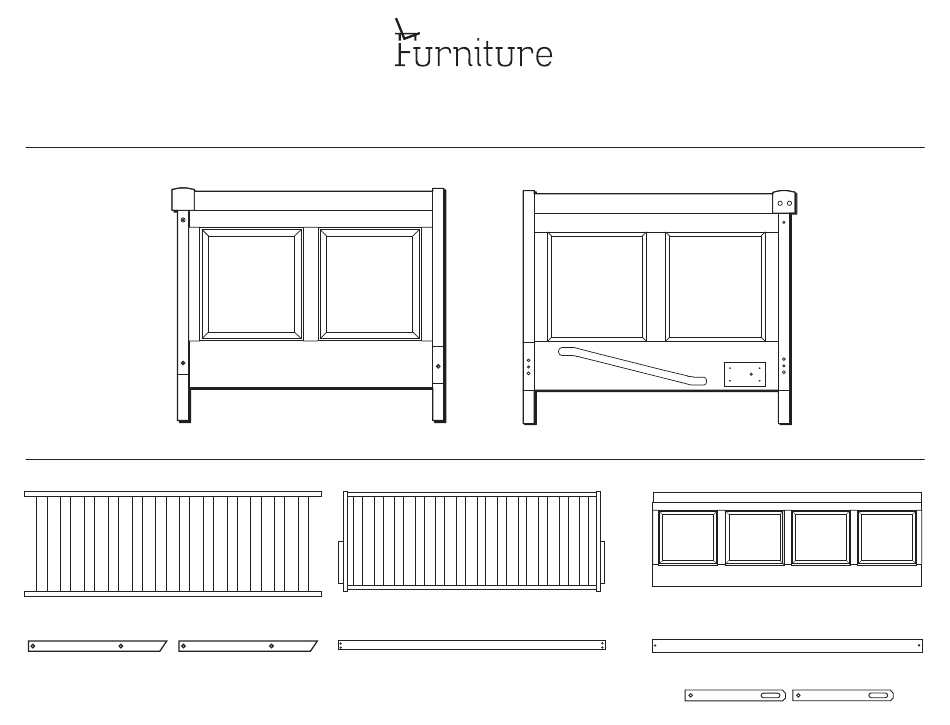

Parts in the Arm Box:
Arm - Outside View
Arm - Inside View
1B
Parts in the Body Box:
Seat Deck x 1
Back Panel x 1
Back Deck x 1
with the Feet attached
Back Deck End Caps x 2
Foot Connector Bar x 1
Stretcher x 1
Page 1 of 8
Advance Arms x 2
Advertisement
Related Manuals for Strata Furniture Adriana
Summary of Contents for Strata Furniture Adriana
- Page 1 Strata urniture Adriana Instructions Watch our assembly videos at www.stratafurniture.com/videos Parts in the Arm Box: Arm - Outside View Arm - Inside View Parts in the Body Box: Seat Deck x 1 Back Panel x 1 Back Deck x 1...
- Page 2 Strata urniture Adriana Instructions Hardware in the Arm Box: Fit the Wooden Dowels into the Stretchers End of Stretcher Long Bolts (100mm) x 6 Bolts (60mm) x 10 For the Stretcher and Back Panel For the Advance Arms and the Foot Connector Bar...
- Page 3 Strata urniture Adriana Instructions Assemble the Back Panel between the Arms Wooden Dowels Long Bolts (100 mm) Barrel Nut Wooden Dowels Long Bolts (100mm) Barrel Nuts Barrel Nut Fit Wooden Dowels into back panel. Bolt the parts together using the Long Bolts (100mm) and Wooden Dowels Barrel Nuts as shown.
- Page 4 Strata urniture Adriana Instructions Assemble the Stretcher between the Arms Attach the Advance Arms to the Arms Back Panel Block Washer Long Sleeve Washer Barrel Nuts Advance Arm Bolt (60mm) Wooden Dowels The slotted end of the Advance Arm attaches to the little wood block at the back of the Arm.
- Page 5 Strata urniture Adriana Instructions Join the Seat and Back Deck together. Lock the clevis pin with a washer and locking pin. Lay both Decks out flat on the floor with the stickers facing upwards. The Seat Deck fits inside the Back Deck as shown. Slip the Long...
- Page 6 Strata urniture Adriana Instructions Attach the Connector Bar to the Legs.* Lift the Seat Deck so it is Bolts (60mm) resting on the Back Deck, the feet should be pointing DOWNWARDS. Foot Line up the holes between the Connector Bar and the Feet.
- Page 7 Strata urniture Adriana Instructions Fit the Seat Back Decks to the Frame. Connect the Advance Arms to the Arms. Carefully pass a Short Clevis Pin through the Arm, into the hole into the Back Deck, then through the Washer. Align with the hole in the Advance Arm, and join them together.
- Page 8 Strata urniture Adriana Instructions Operating Instructions Watch our videos at www.stratafurniture.com/videos.html Fit the Wood Buttons to the Arms and To convert into a couch position Back Deck •Remove any pillows and other obstructions Finally, when the frame is fully assembled, •Push up the mattress into an inverted couch position...
